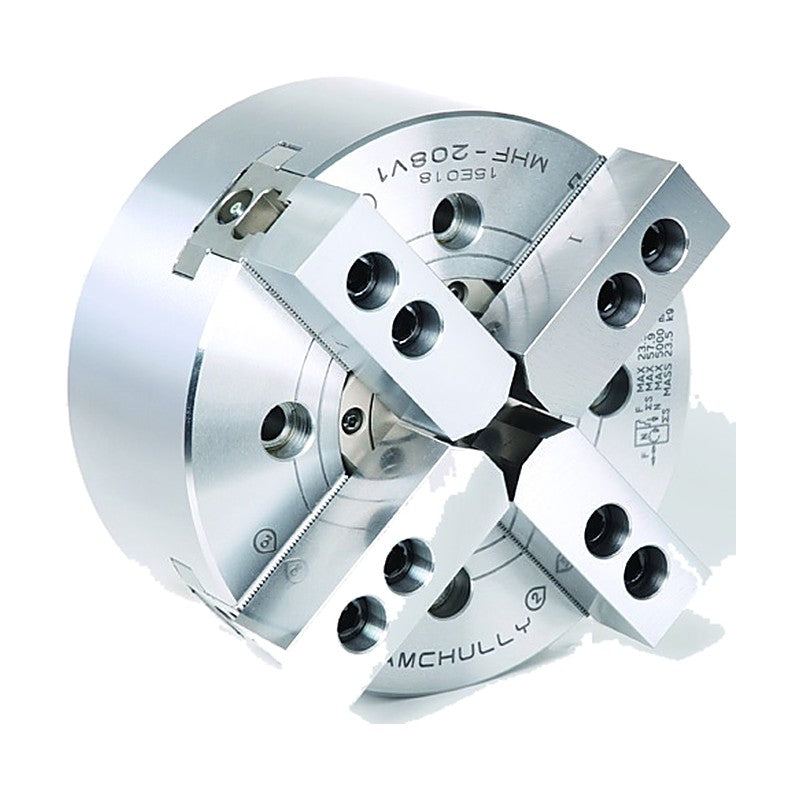

Samchully Mega-Bore 2-Jaw / 4-Jaw Ultra High-Speed Open-Center Chuck MHT/MHF

Samchully Mega-Bore 2-Jaw / 4-Jaw Ultra High-Speed Open-Center Chuck MHT/MHF

Mega-bore 2-jaw (MHT) and 4-jaw (MHF) wedge-style open-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
MHT-206 Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 175 | Grip Dia. Min (mm): 16.5 | Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Max. Permissible Input Force (kN (kgf)): 16.6(1700) | Max. Static Gripping Force (kN (kgf)): 38(3875) | Max. Speed (rpm): 6000 | Weight (kg): 11.5 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.18(12) | Operating Hard Jaw: HB06A1
MHT-208 Through Hole Dia. (mm): 66 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 23.5(2397) | Max. Static Gripping Force (kN (kgf)): 57.9(5914) | Max. Speed (rpm): 5000 | Weight (kg): 21.7 | Operating Cylinder: SD-17568 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.59(16.3) | Operating Hard Jaw: HB08A1
MHT-210 Through Hole Dia. (mm): 82 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 32.5(3306) | Max. Static Gripping Force (kN (kgf)): 84(8530) | Max. Speed (rpm): 4500 | Weight (kg): 31 | Operating Cylinder: SD-18582 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.86(19) | Operating Hard Jaw: HB10A1
MHT-212 Through Hole Dia. (mm): 103 | Grip Dia. Max (mm): 315 | Grip Dia. Min (mm): 54 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 36.7(3742) | Max. Static Gripping Force (kN (kgf)): 96(9789) | Max. Speed (rpm): 3000 | Weight (kg): 55.3 | Operating Cylinder: SD-21510 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.57(16.0) | Operating Hard Jaw: HB12A1
MHF-208 Through Hole Dia. (mm): 66 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 36.4(3596) | Max. Static Gripping Force (kN (kgf)): 87(8872) | Max. Speed (rpm): 4300 | Weight (kg): 23.5 | Operating Cylinder: SD-17568 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.34(23.9) | Operating Hard Jaw: HBF08A1
MHF-210 Through Hole Dia. (mm): 82 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 49(4976) | Max. Static Gripping Force (kN (kgf)): 126.6(12848) | Max. Speed (rpm): 3400 | Weight (kg): 32 | Operating Cylinder: SD-18582 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.74(28) | Operating Hard Jaw: HBF10A1
MHF-212 Through Hole Dia. (mm): 103 | Grip Dia. Max (mm): 315 | Grip Dia. Min (mm): 54 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 55(5608) | Max. Static Gripping Force (kN (kgf)): 144(14686) | Max. Speed (rpm): 2700 | Weight (kg): 55.3 | Operating Cylinder: SD-21510 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.65(27.2) | Operating Hard Jaw: HBF12A1
MHF-221 Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 108 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22460) | Max. Speed (rpm): 1300 | Weight (kg): 228 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.21(22.5) | Operating Hard Jaw: HBF21B2
Power ChucksSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Mega-Bore 2-Jaw / 4-Jaw Ultra High-Speed Open-Center Chuck MHT/MHF

Brand Samchully·Power Chucks

Available part numbers (8)

MHT-206, MHT-208, MHT-210, MHT-212, MHF-208, MHF-210, MHF-212, MHF-221

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MHT-206Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 175 | Grip Dia. Min (mm): 16.5 | Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Max. Permissible Input Force (kN (kgf)): 16.6(1700) | Max. Static Gripping Force (kN (kgf)): 38(3875) | Max. Speed (rpm): 6000 | Weight (kg): 11.5 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.18(12) | Operating Hard Jaw: HB06A1
MHT-208Through Hole Dia. (mm): 66 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 23.5(2397) | Max. Static Gripping Force (kN (kgf)): 57.9(5914) | Max. Speed (rpm): 5000 | Weight (kg): 21.7 | Operating Cylinder: SD-17568 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.59(16.3) | Operating Hard Jaw: HB08A1
MHT-210Through Hole Dia. (mm): 82 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 32.5(3306) | Max. Static Gripping Force (kN (kgf)): 84(8530) | Max. Speed (rpm): 4500 | Weight (kg): 31 | Operating Cylinder: SD-18582 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.86(19) | Operating Hard Jaw: HB10A1
MHT-212Through Hole Dia. (mm): 103 | Grip Dia. Max (mm): 315 | Grip Dia. Min (mm): 54 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 36.7(3742) | Max. Static Gripping Force (kN (kgf)): 96(9789) | Max. Speed (rpm): 3000 | Weight (kg): 55.3 | Operating Cylinder: SD-21510 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.57(16.0) | Operating Hard Jaw: HB12A1
MHF-208Through Hole Dia. (mm): 66 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 36.4(3596) | Max. Static Gripping Force (kN (kgf)): 87(8872) | Max. Speed (rpm): 4300 | Weight (kg): 23.5 | Operating Cylinder: SD-17568 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.34(23.9) | Operating Hard Jaw: HBF08A1
MHF-210Through Hole Dia. (mm): 82 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 49(4976) | Max. Static Gripping Force (kN (kgf)): 126.6(12848) | Max. Speed (rpm): 3400 | Weight (kg): 32 | Operating Cylinder: SD-18582 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.74(28) | Operating Hard Jaw: HBF10A1
MHF-212Through Hole Dia. (mm): 103 | Grip Dia. Max (mm): 315 | Grip Dia. Min (mm): 54 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 55(5608) | Max. Static Gripping Force (kN (kgf)): 144(14686) | Max. Speed (rpm): 2700 | Weight (kg): 55.3 | Operating Cylinder: SD-21510 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.65(27.2) | Operating Hard Jaw: HBF12A1
MHF-221Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 108 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22460) | Max. Speed (rpm): 1300 | Weight (kg): 228 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.21(22.5) | Operating Hard Jaw: HBF21B2
