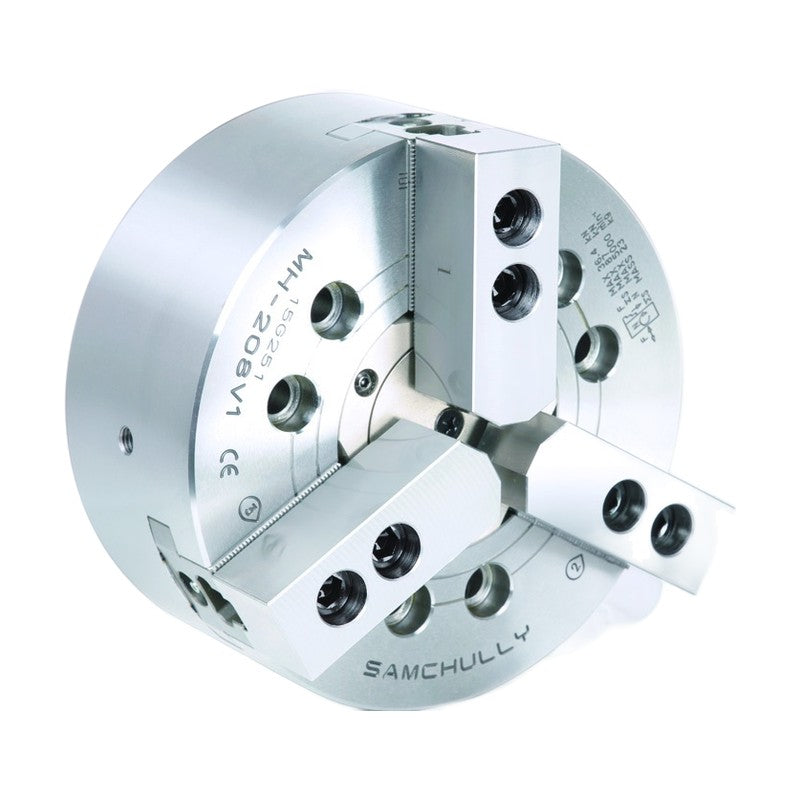

Samchully Mega-Bore 3-Jaw High-Speed Open-Center Chuck MH

Samchully Mega-Bore 3-Jaw High-Speed Open-Center Chuck MH

Mega-bore 3-jaw wedge-style open-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
MH-206 Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 175 | Grip Dia. Min (mm): 16.5 | Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Max. Permissible Input Force (kN (kgf)): 24.7(2551) | Max. Static Gripping Force (kN (kgf)): 57.3(5847) | Max. Speed (rpm): 6000 | Weight (kg): 11.9 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.78(18.1) | Operating Hard Jaw: HB06A1
MH-208 Through Hole Dia. (mm): 66 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 36.4(3596) | Max. Static Gripping Force (kN (kgf)): 87(8872) | Max. Speed (rpm): 5000 | Weight (kg): 23 | Operating Cylinder: SD-17568 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.34(23.9) | Operating Hard Jaw: HB08A1
MH-210 Through Hole Dia. (mm): 82 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 49(4976) | Max. Static Gripping Force (kN (kgf)): 126.6(12848) | Max. Speed (rpm): 4500 | Weight (kg): 32 | Operating Cylinder: SD-18582 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.74(28) | Operating Hard Jaw: HB10A1
MH-212 Through Hole Dia. (mm): 103 | Grip Dia. Max (mm): 315 | Grip Dia. Min (mm): 54 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 55(5608) | Max. Static Gripping Force (kN (kgf)): 144(14686) | Max. Speed (rpm): 3000 | Weight (kg): 55.3 | Operating Cylinder: SD-21510 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.65(27.2) | Operating Hard Jaw: HB12N1
MH-218 Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 457 | Grip Dia. Min (mm): 73 | Jaw Stroke Dia. (mm): 11.5 | Plunger Stroke (mm): 25 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2000 | Weight (kg): 170 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.81(18.5) | Operating Hard Jaw: HB218A2
MH-221 Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 105 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22460) | Max. Speed (rpm): 1700 | Weight (kg): 228 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.21(22.5) | Operating Hard Jaw: HB21B2
MH-224 Through Hole Dia. (mm): 190 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 120 | Jaw Stroke Dia. (mm): 12.8 | Plunger Stroke (mm): 28 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1400 | Weight (kg): 293 | Operating Cylinder: SHL-39024 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.57(16.1) | Operating Hard Jaw: HB21B2
Power ChucksSamchully
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Mega-Bore 3-Jaw High-Speed Open-Center Chuck MH

Brand Samchully·Power Chucks

Available part numbers (7)

MH-206, MH-208, MH-210, MH-212, MH-218, MH-221, MH-224

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MH-206Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 175 | Grip Dia. Min (mm): 16.5 | Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Max. Permissible Input Force (kN (kgf)): 24.7(2551) | Max. Static Gripping Force (kN (kgf)): 57.3(5847) | Max. Speed (rpm): 6000 | Weight (kg): 11.9 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.78(18.1) | Operating Hard Jaw: HB06A1
MH-208Through Hole Dia. (mm): 66 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 36.4(3596) | Max. Static Gripping Force (kN (kgf)): 87(8872) | Max. Speed (rpm): 5000 | Weight (kg): 23 | Operating Cylinder: SD-17568 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.34(23.9) | Operating Hard Jaw: HB08A1
MH-210Through Hole Dia. (mm): 82 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 49(4976) | Max. Static Gripping Force (kN (kgf)): 126.6(12848) | Max. Speed (rpm): 4500 | Weight (kg): 32 | Operating Cylinder: SD-18582 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.74(28) | Operating Hard Jaw: HB10A1
MH-212Through Hole Dia. (mm): 103 | Grip Dia. Max (mm): 315 | Grip Dia. Min (mm): 54 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 55(5608) | Max. Static Gripping Force (kN (kgf)): 144(14686) | Max. Speed (rpm): 3000 | Weight (kg): 55.3 | Operating Cylinder: SD-21510 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.65(27.2) | Operating Hard Jaw: HB12N1
MH-218Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 457 | Grip Dia. Min (mm): 73 | Jaw Stroke Dia. (mm): 11.5 | Plunger Stroke (mm): 25 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2000 | Weight (kg): 170 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.81(18.5) | Operating Hard Jaw: HB218A2
MH-221Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 105 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22460) | Max. Speed (rpm): 1700 | Weight (kg): 228 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.21(22.5) | Operating Hard Jaw: HB21B2
MH-224Through Hole Dia. (mm): 190 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 120 | Jaw Stroke Dia. (mm): 12.8 | Plunger Stroke (mm): 28 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1400 | Weight (kg): 293 | Operating Cylinder: SHL-39024 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.57(16.1) | Operating Hard Jaw: HB21B2
