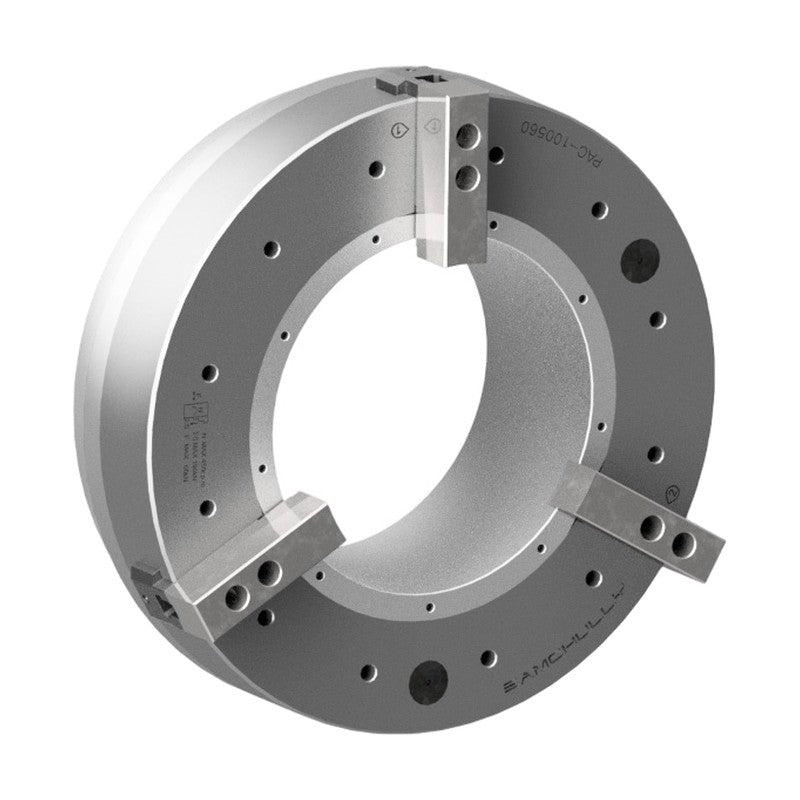

Samchully Mega-Bore Pneumatic Self-Contained Chuck PAC

Samchully Mega-Bore Pneumatic Self-Contained Chuck PAC

Air chuck with built-in pneumatic cylinder for external and internal clamping of large pipes with full spindle through-hole.

Key features

  • Built-in pneumatic cylinder
  • Full spindle through-hole for large pipe machining
  • Built-in lock valve maintains air pressure during machining
  • Stroke detecting plate for O.D. and I.D. clamping
  • Clamp pressure monitored by check valve

Specifications

Operating Pressure (MPa) 0.2~0.8
PAC-47191 Through Hole Dia. (mm): 191 | Jaw Stroke Dia. (mm): 7 | Clamping Force (kN): 115 | Max. Speed (rpm): 1700 | Weight (kg): 150
PAC-50230 Through Hole Dia. (mm): 230 | Jaw Stroke Dia. (mm): 8.5 | Clamping Force (kN): 190 | Max. Speed (rpm): 1300 | Weight (kg): 200
PAC-60275 Through Hole Dia. (mm): 275 | Jaw Stroke Dia. (mm): 8.5 | Clamping Force (kN): 200 | Max. Speed (rpm): 1300 | Weight (kg): 270
PAC-63310 Through Hole Dia. (mm): 310 | Jaw Stroke Dia. (mm): 10 | Clamping Force (kN): 220 | Max. Speed (rpm): 1000 | Weight (kg): 420
PAC-80410 Through Hole Dia. (mm): 410 | Jaw Stroke Dia. (mm): 12 | Clamping Force (kN): 330 | Max. Speed (rpm): 750 | Weight (kg): 650
PAC-100560 Through Hole Dia. (mm): 560 | Jaw Stroke Dia. (mm): 12 | Clamping Force (kN): 310 | Max. Speed (rpm): 450 | Weight (kg): 940
Pneumatic ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Mega-Bore Pneumatic Self-Contained Chuck PAC

Brand Samchully·Pneumatic Chucks

Available part numbers (6)

PAC-47191, PAC-50230, PAC-60275, PAC-63310, PAC-80410, PAC-100560

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PAC-47191Through Hole Dia. (mm): 191 | Jaw Stroke Dia. (mm): 7 | Clamping Force (kN): 115 | Max. Speed (rpm): 1700 | Weight (kg): 150
PAC-50230Through Hole Dia. (mm): 230 | Jaw Stroke Dia. (mm): 8.5 | Clamping Force (kN): 190 | Max. Speed (rpm): 1300 | Weight (kg): 200
PAC-60275Through Hole Dia. (mm): 275 | Jaw Stroke Dia. (mm): 8.5 | Clamping Force (kN): 200 | Max. Speed (rpm): 1300 | Weight (kg): 270
PAC-63310Through Hole Dia. (mm): 310 | Jaw Stroke Dia. (mm): 10 | Clamping Force (kN): 220 | Max. Speed (rpm): 1000 | Weight (kg): 420
PAC-80410Through Hole Dia. (mm): 410 | Jaw Stroke Dia. (mm): 12 | Clamping Force (kN): 330 | Max. Speed (rpm): 750 | Weight (kg): 650
PAC-100560Through Hole Dia. (mm): 560 | Jaw Stroke Dia. (mm): 12 | Clamping Force (kN): 310 | Max. Speed (rpm): 450 | Weight (kg): 940
