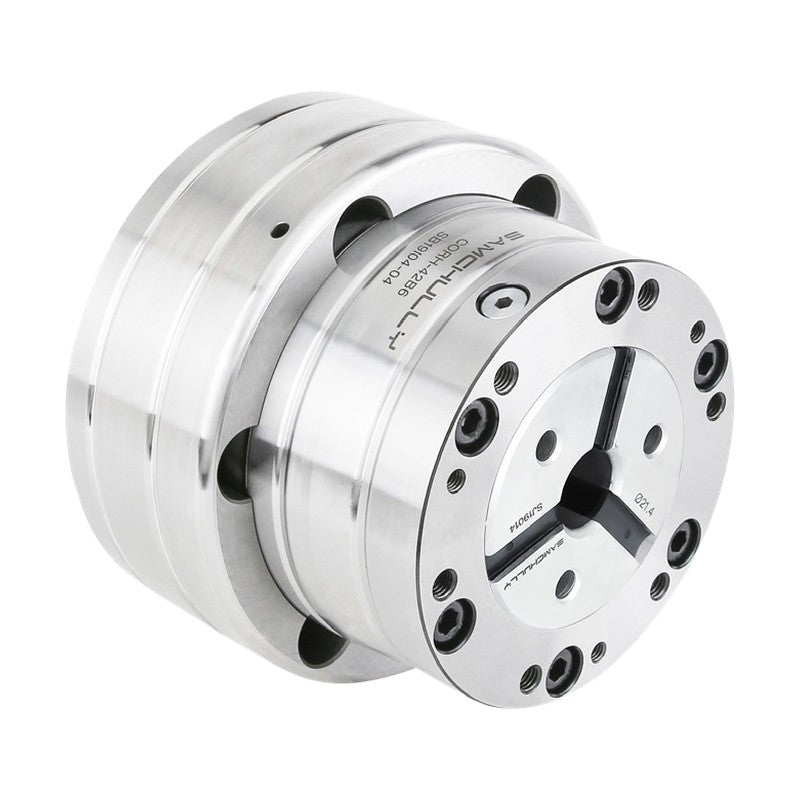

Samchully Modular Collet Chuck CORH-M

Samchully Modular Collet Chuck CORH-M

Modular collet chuck with quick collet changeover for variously sized workpieces.

Key features

  • Quick-change rubber-steel segment collet
  • Round, square and hexagonal collets available

Specifications

Collet Expansion (mm) Ø1.6
Plunger Stroke (mm) 4.5
Weight (kg) 10
CORH-42M Max. Clamping Force (kgf): 8,100 | Max. Drawbar Pull (kgf): 3,500 | Clamp Dia Range (mm): Ø5 ~ Ø42 | Max. Speed (rpm): 7,000
CORH-52M Max. Clamping Force (kgf): 9,500 | Max. Drawbar Pull (kgf): 4,000 | Clamp Dia Range (mm): Ø5 ~ Ø52 | Max. Speed (rpm): 7,000
CORH-65M Max. Clamping Force (kgf): 10,700 | Max. Drawbar Pull (kgf): 4,500 | Clamp Dia Range (mm): Ø5 ~ Ø65 | Max. Speed (rpm): 6,000
Special ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Modular Collet Chuck CORH-M

Brand Samchully·Special Chucks

Available part numbers (3)

CORH-42M, CORH-52M, CORH-65M

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CORH-42MMax. Clamping Force (kgf): 8,100 | Max. Drawbar Pull (kgf): 3,500 | Clamp Dia Range (mm): Ø5 ~ Ø42 | Max. Speed (rpm): 7,000
CORH-52MMax. Clamping Force (kgf): 9,500 | Max. Drawbar Pull (kgf): 4,000 | Clamp Dia Range (mm): Ø5 ~ Ø52 | Max. Speed (rpm): 7,000
CORH-65MMax. Clamping Force (kgf): 10,700 | Max. Drawbar Pull (kgf): 4,500 | Clamp Dia Range (mm): Ø5 ~ Ø65 | Max. Speed (rpm): 6,000
