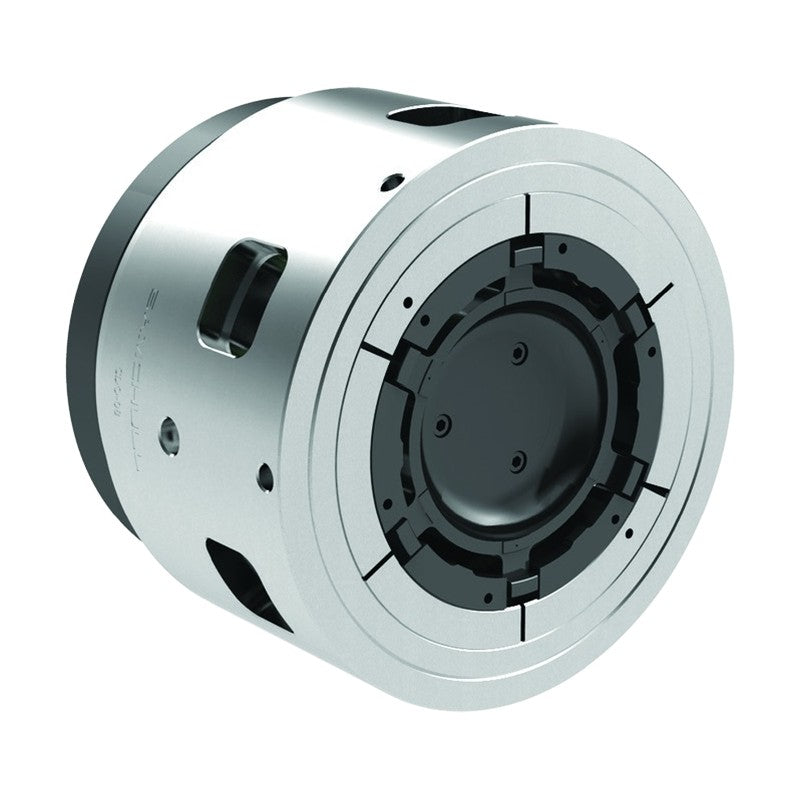

Samchully Outside Collet Chuck CDO

Samchully Outside Collet Chuck CDO

Collet chuck for O.D. gripping requiring maximum contact.

Key features

  • Interchangeable top jaws grip the workpiece O.D
  • Air sensing and air/coolant through the spindle available
CDO-06 Max. Clamping Force (kgf): 2800 | Max. Drawbar Pull (kgf): 1500 | Jaw Stroke Dia. (mm): 1.6 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 50 | Clamping Range Min. (mm): 15 | Max. Speed (rpm): 4500 | Weight (kg): 11
CDO-08 Max. Clamping Force (kgf): 4600 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 1.6 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 80 | Clamping Range Min. (mm): 40 | Max. Speed (rpm): 4000 | Weight (kg): 23
CDO-10 Max. Clamping Force (kgf): 6500 | Max. Drawbar Pull (kgf): 3500 | Jaw Stroke Dia. (mm): 1.6 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 130 | Clamping Range Min. (mm): 80 | Max. Speed (rpm): 3300 | Weight (kg): 49
CDO-12 Max. Clamping Force (kgf): 7500 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 2.0 | Plunger Stroke (mm): 4 | Clamping Range Max. (mm): 180 | Clamping Range Min. (mm): 100 | Max. Speed (rpm): 2500 | Weight (kg): 67
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Outside Collet Chuck CDO

Brand Samchully·Special Chucks

Available part numbers (4)

CDO-06, CDO-08, CDO-10, CDO-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CDO-06Max. Clamping Force (kgf): 2800 | Max. Drawbar Pull (kgf): 1500 | Jaw Stroke Dia. (mm): 1.6 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 50 | Clamping Range Min. (mm): 15 | Max. Speed (rpm): 4500 | Weight (kg): 11
CDO-08Max. Clamping Force (kgf): 4600 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 1.6 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 80 | Clamping Range Min. (mm): 40 | Max. Speed (rpm): 4000 | Weight (kg): 23
CDO-10Max. Clamping Force (kgf): 6500 | Max. Drawbar Pull (kgf): 3500 | Jaw Stroke Dia. (mm): 1.6 | Plunger Stroke (mm): 3 | Clamping Range Max. (mm): 130 | Clamping Range Min. (mm): 80 | Max. Speed (rpm): 3300 | Weight (kg): 49
CDO-12Max. Clamping Force (kgf): 7500 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 2.0 | Plunger Stroke (mm): 4 | Clamping Range Max. (mm): 180 | Clamping Range Min. (mm): 100 | Max. Speed (rpm): 2500 | Weight (kg): 67
