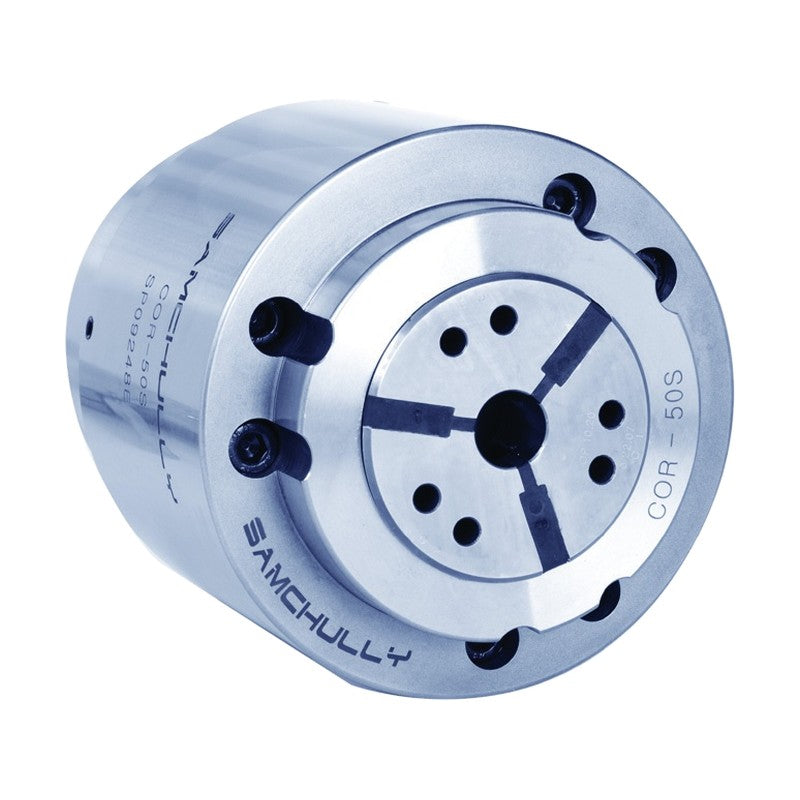

Samchully Outside Collet Chuck COR

Samchully Outside Collet Chuck COR

Collet chuck for bar or workpieces requiring maximum gripping contact.

Key features

  • Quick-change rubber-steel segment collet
  • Round, square and hexagonal collets available

Specifications

Plunger Stroke (mm) 3
COR-32 Max. Clamping Force (kgf): 6400 | Max. Drawbar Pull (kgf): 3200 | Collet Expansion (mm): 1.0 | Chucking Dia. Pin Jaw Bar Work (mm): 5~32 | Chucking Dia. Pin Jaw Chuck Work (mm): 7~32 | Max. Speed (rpm): 4500 | Weight (kg): 25
COR-50 Max. Clamping Force (kgf): 8200 | Max. Drawbar Pull (kgf): 4100 | Collet Expansion (mm): 1.0 | Chucking Dia. Pin Jaw Bar Work (mm): 12~50 | Chucking Dia. Pin Jaw Chuck Work (mm): 12~50 | Max. Speed (rpm): 4500 | Weight (kg): 25
COR-65 Max. Clamping Force (kgf): 9200 | Max. Drawbar Pull (kgf): 4600 | Collet Expansion (mm): 1.0 | Chucking Dia. Pin Jaw Bar Work (mm): 16~65 | Chucking Dia. Pin Jaw Chuck Work (mm): 16~65 | Max. Speed (rpm): 4000 | Weight (kg): 32
COR-90 Max. Clamping Force (kgf): 13300 | Max. Drawbar Pull (kgf): 6500 | Collet Expansion (mm): 2.0 | Chucking Dia. Pin Jaw Bar Work (mm): 30~90 | Chucking Dia. Pin Jaw Chuck Work (mm): 30~90 | Max. Speed (rpm): 3500 | Weight (kg): 38
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Outside Collet Chuck COR

Brand Samchully·Special Chucks

Available part numbers (4)

COR-32, COR-50, COR-65, COR-90

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
COR-32Max. Clamping Force (kgf): 6400 | Max. Drawbar Pull (kgf): 3200 | Collet Expansion (mm): 1.0 | Chucking Dia. Pin Jaw Bar Work (mm): 5~32 | Chucking Dia. Pin Jaw Chuck Work (mm): 7~32 | Max. Speed (rpm): 4500 | Weight (kg): 25
COR-50Max. Clamping Force (kgf): 8200 | Max. Drawbar Pull (kgf): 4100 | Collet Expansion (mm): 1.0 | Chucking Dia. Pin Jaw Bar Work (mm): 12~50 | Chucking Dia. Pin Jaw Chuck Work (mm): 12~50 | Max. Speed (rpm): 4500 | Weight (kg): 25
COR-65Max. Clamping Force (kgf): 9200 | Max. Drawbar Pull (kgf): 4600 | Collet Expansion (mm): 1.0 | Chucking Dia. Pin Jaw Bar Work (mm): 16~65 | Chucking Dia. Pin Jaw Chuck Work (mm): 16~65 | Max. Speed (rpm): 4000 | Weight (kg): 32
COR-90Max. Clamping Force (kgf): 13300 | Max. Drawbar Pull (kgf): 6500 | Collet Expansion (mm): 2.0 | Chucking Dia. Pin Jaw Bar Work (mm): 30~90 | Chucking Dia. Pin Jaw Chuck Work (mm): 30~90 | Max. Speed (rpm): 3500 | Weight (kg): 38
