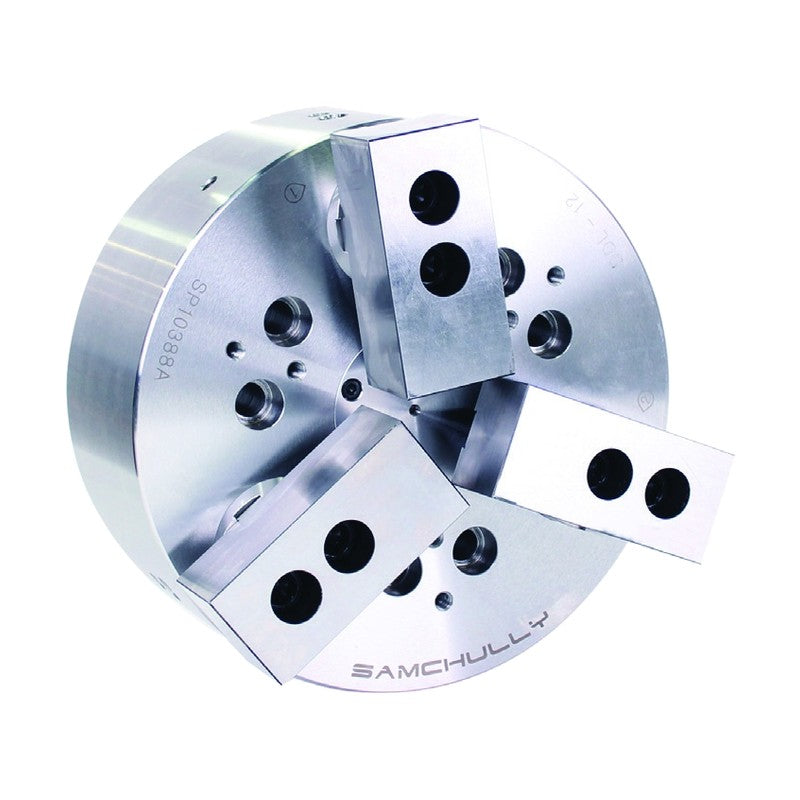

Samchully Outside Draw-Down Chuck DDL

Samchully Outside Draw-Down Chuck DDL

Outside draw-down chuck that pulls the workpiece down to location for superior accuracy.

Key features

  • Very accurate for parallel and perpendicular surfaces
  • Sealed against chips and coolant
DDL-04 Max. Clamping Force (kgf): 1,350 | Max. Drawbar Pull (kgf): 800 | Jaw Stroke Dia. (mm): 5 | Plunger Stroke (mm): 7 | Clamping Range Pin Jaw Standard (mm): 10~55 | Clamping Range Pin Jaw Top Jaw (mm): 10~50 | Max. Speed (rpm): 5,500 | Weight (kg): 4.5
DDL-05 Max. Clamping Force (kgf): 2,000 | Max. Drawbar Pull (kgf): 1,000 | Jaw Stroke Dia. (mm): 5 | Plunger Stroke (mm): 7 | Clamping Range Pin Jaw Standard (mm): 15~65 | Clamping Range Pin Jaw Top Jaw (mm): 15~60 | Max. Speed (rpm): 3,500 | Weight (kg): 7.3
DDL-06 Max. Clamping Force (kgf): 2,500 | Max. Drawbar Pull (kgf): 1,500 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw Standard (mm): 35~85 | Clamping Range Pin Jaw Top Jaw (mm): 35~80 | Max. Speed (rpm): 3,500 | Weight (kg): 14
DDL-08 Max. Clamping Force (kgf): 4,500 | Max. Drawbar Pull (kgf): 2,500 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw Standard (mm): 40~200 | Clamping Range Pin Jaw Top Jaw (mm): 40~150 | Max. Speed (rpm): 3,000 | Weight (kg): 27
DDL-10 Max. Clamping Force (kgf): 6,000 | Max. Drawbar Pull (kgf): 3,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 50~250 | Clamping Range Pin Jaw Top Jaw (mm): 50~200 | Max. Speed (rpm): 2,500 | Weight (kg): 46
DDL-12 Max. Clamping Force (kgf): 7,500 | Max. Drawbar Pull (kgf): 4,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 50~300 | Clamping Range Pin Jaw Top Jaw (mm): 50~250 | Max. Speed (rpm): 2,000 | Weight (kg): 68
DDL-15 Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 14.5 | Plunger Stroke (mm): 20 | Clamping Range Pin Jaw Standard (mm): 60~380 | Clamping Range Pin Jaw Top Jaw (mm): 60~320 | Max. Speed (rpm): 1,500 | Weight (kg): 110
DDL-18 Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 18.2 | Plunger Stroke (mm): 25 | Clamping Range Pin Jaw Standard (mm): 80~450 | Clamping Range Pin Jaw Top Jaw (mm): 80~360 | Max. Speed (rpm): 1,500 | Weight (kg): 185
DDL-20 Max. Clamping Force (kgf): 23,800 | Max. Drawbar Pull (kgf): 9,100 | Jaw Stroke Dia. (mm): 18 | Plunger Stroke (mm): 25 | Clamping Range Pin Jaw Standard (mm): 80~450 | Clamping Range Pin Jaw Top Jaw (mm): 80~400 | Max. Speed (rpm): 1,200 | Weight (kg): 230
Special ChucksSamchully
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Outside Draw-Down Chuck DDL

Brand Samchully·Special Chucks

Available part numbers (9)

DDL-04, DDL-05, DDL-06, DDL-08, DDL-10, DDL-12, DDL-15, DDL-18, DDL-20

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DDL-04Max. Clamping Force (kgf): 1,350 | Max. Drawbar Pull (kgf): 800 | Jaw Stroke Dia. (mm): 5 | Plunger Stroke (mm): 7 | Clamping Range Pin Jaw Standard (mm): 10~55 | Clamping Range Pin Jaw Top Jaw (mm): 10~50 | Max. Speed (rpm): 5,500 | Weight (kg): 4.5
DDL-05Max. Clamping Force (kgf): 2,000 | Max. Drawbar Pull (kgf): 1,000 | Jaw Stroke Dia. (mm): 5 | Plunger Stroke (mm): 7 | Clamping Range Pin Jaw Standard (mm): 15~65 | Clamping Range Pin Jaw Top Jaw (mm): 15~60 | Max. Speed (rpm): 3,500 | Weight (kg): 7.3
DDL-06Max. Clamping Force (kgf): 2,500 | Max. Drawbar Pull (kgf): 1,500 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw Standard (mm): 35~85 | Clamping Range Pin Jaw Top Jaw (mm): 35~80 | Max. Speed (rpm): 3,500 | Weight (kg): 14
DDL-08Max. Clamping Force (kgf): 4,500 | Max. Drawbar Pull (kgf): 2,500 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw Standard (mm): 40~200 | Clamping Range Pin Jaw Top Jaw (mm): 40~150 | Max. Speed (rpm): 3,000 | Weight (kg): 27
DDL-10Max. Clamping Force (kgf): 6,000 | Max. Drawbar Pull (kgf): 3,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 50~250 | Clamping Range Pin Jaw Top Jaw (mm): 50~200 | Max. Speed (rpm): 2,500 | Weight (kg): 46
DDL-12Max. Clamping Force (kgf): 7,500 | Max. Drawbar Pull (kgf): 4,500 | Jaw Stroke Dia. (mm): 10.8 | Plunger Stroke (mm): 15 | Clamping Range Pin Jaw Standard (mm): 50~300 | Clamping Range Pin Jaw Top Jaw (mm): 50~250 | Max. Speed (rpm): 2,000 | Weight (kg): 68
DDL-15Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 14.5 | Plunger Stroke (mm): 20 | Clamping Range Pin Jaw Standard (mm): 60~380 | Clamping Range Pin Jaw Top Jaw (mm): 60~320 | Max. Speed (rpm): 1,500 | Weight (kg): 110
DDL-18Max. Clamping Force (kgf): 9,000 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 18.2 | Plunger Stroke (mm): 25 | Clamping Range Pin Jaw Standard (mm): 80~450 | Clamping Range Pin Jaw Top Jaw (mm): 80~360 | Max. Speed (rpm): 1,500 | Weight (kg): 185
DDL-20Max. Clamping Force (kgf): 23,800 | Max. Drawbar Pull (kgf): 9,100 | Jaw Stroke Dia. (mm): 18 | Plunger Stroke (mm): 25 | Clamping Range Pin Jaw Standard (mm): 80~450 | Clamping Range Pin Jaw Top Jaw (mm): 80~400 | Max. Speed (rpm): 1,200 | Weight (kg): 230

Need a different model, or a part not listed here? Send us your parts list →
