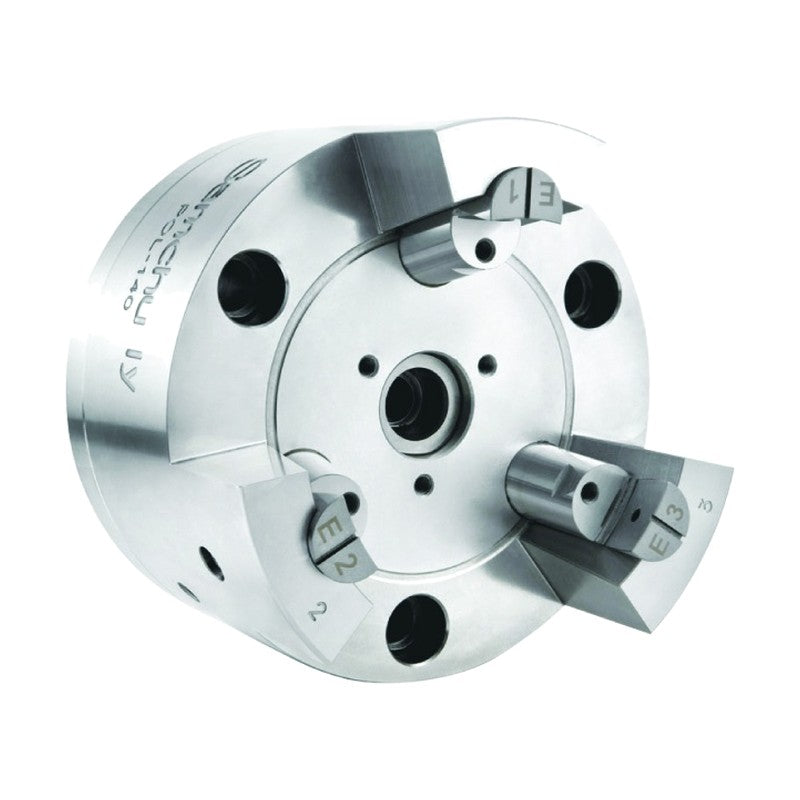

Samchully Outside Pin Arbor Chuck POL

Samchully Outside Pin Arbor Chuck POL

Pin arbor chuck for second-operation O.D. gripping.

Key features

  • Active pull-down for high precision
  • Counter-centrifugal gripping reduces distortion
POL-80 Size (in): 5 | Max. Clamping Force (kgf): 2250 | Max. Drawbar Pull (kgf): 1200 | Jaw Stroke Dia. (mm): 3.4 | Plunger Stroke (mm): 8 | Clamping Range Pin Jaw (mm): 65~80 | Clamping Range Top Jaw (mm): 15~60 | Max. Speed (rpm): 5000 | Weight (kg): 8
POL-100 Size (in): 6 | Max. Clamping Force (kgf): 3760 | Max. Drawbar Pull (kgf): 2000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 86~100 | Clamping Range Top Jaw (mm): 20~80 | Max. Speed (rpm): 4500 | Weight (kg): 16
POL-140 Size (in): 8 | Max. Clamping Force (kgf): 4700 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 120~140 | Clamping Range Top Jaw (mm): 60~110 | Max. Speed (rpm): 3000 | Weight (kg): 27
POL-180 Size (in): 10 | Max. Clamping Force (kgf): 5600 | Max. Drawbar Pull (kgf): 3000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 150~180 | Clamping Range Top Jaw (mm): 100~145 | Max. Speed (rpm): 2000 | Weight (kg): 46
POL-230 Size (in): 12 | Max. Clamping Force (kgf): 7520 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Top Jaw (mm): 120~200 | Max. Speed (rpm): 2000 | Weight (kg): 70
POL-300 Size (in): 16 | Max. Clamping Force (kgf): 7520 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Top Jaw (mm): 150~270 | Max. Speed (rpm): 2000 | Weight (kg): 165
Special ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Outside Pin Arbor Chuck POL

Brand Samchully·Special Chucks

Available part numbers (6)

POL-80, POL-100, POL-140, POL-180, POL-230, POL-300

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
POL-80Size (in): 5 | Max. Clamping Force (kgf): 2250 | Max. Drawbar Pull (kgf): 1200 | Jaw Stroke Dia. (mm): 3.4 | Plunger Stroke (mm): 8 | Clamping Range Pin Jaw (mm): 65~80 | Clamping Range Top Jaw (mm): 15~60 | Max. Speed (rpm): 5000 | Weight (kg): 8
POL-100Size (in): 6 | Max. Clamping Force (kgf): 3760 | Max. Drawbar Pull (kgf): 2000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 86~100 | Clamping Range Top Jaw (mm): 20~80 | Max. Speed (rpm): 4500 | Weight (kg): 16
POL-140Size (in): 8 | Max. Clamping Force (kgf): 4700 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 120~140 | Clamping Range Top Jaw (mm): 60~110 | Max. Speed (rpm): 3000 | Weight (kg): 27
POL-180Size (in): 10 | Max. Clamping Force (kgf): 5600 | Max. Drawbar Pull (kgf): 3000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Pin Jaw (mm): 150~180 | Clamping Range Top Jaw (mm): 100~145 | Max. Speed (rpm): 2000 | Weight (kg): 46
POL-230Size (in): 12 | Max. Clamping Force (kgf): 7520 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Top Jaw (mm): 120~200 | Max. Speed (rpm): 2000 | Weight (kg): 70
POL-300Size (in): 16 | Max. Clamping Force (kgf): 7520 | Max. Drawbar Pull (kgf): 4000 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 10 | Clamping Range Top Jaw (mm): 150~270 | Max. Speed (rpm): 2000 | Weight (kg): 165
