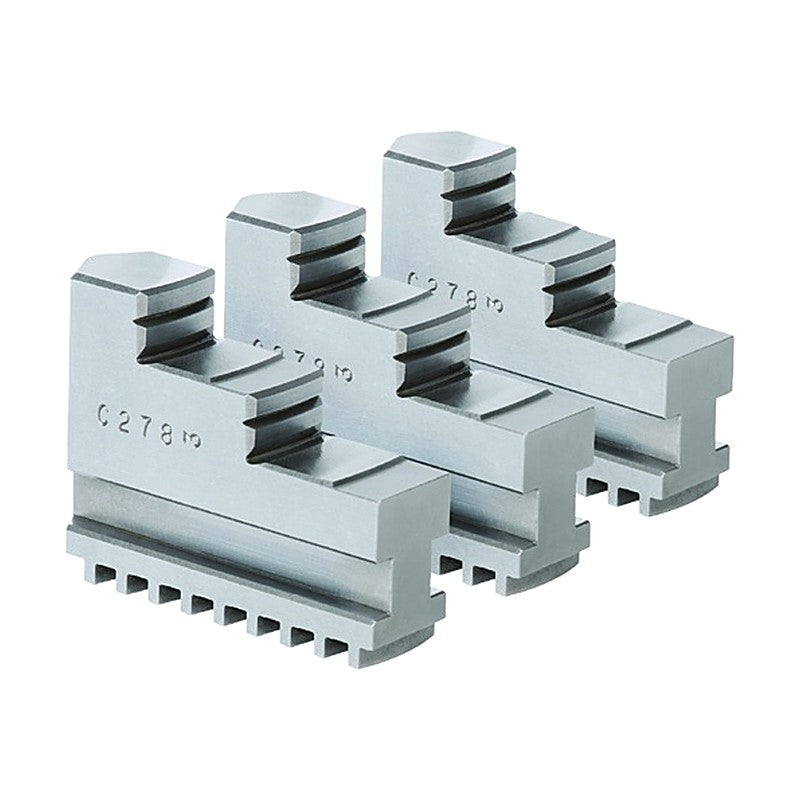

Samchully Scroll Chuck Internal Jaws (SC, FSC, SL)

Internal (hard) jaws for SC, FSC and SL scroll chucks; SF and SCS jaws are the same size but not compatible.

Key features

SF and SCS jaws are the same size but incompatible due to different scroll positions

IJ-SC-85		Fits: SC-85, FSC-85 \| L1 (mm): 35 \| L2 (mm): 11 \| L3 (mm): 10 \| L4 (mm): 29 \| L5 (mm): 26.5 \| B1 (mm): 11 \| B2 (mm): 5.7 \| B3 (mm): 4.7 \| B4 (mm): 6.55 \| B5 (mm): 6 \| B6 (mm): 6 \| K1 (mm): 17.75
IJ-SC-110		Fits: SC-110, FSC-110 \| L1 (mm): 42 \| L2 (mm): 13 \| L3 (mm): 13 \| L4 (mm): 34.5 \| L5 (mm): 31 \| B1 (mm): 14 \| B2 (mm): 7.5 \| B3 (mm): 6.2 \| B4 (mm): 6.55 \| B5 (mm): 7 \| B6 (mm): 4.3 \| K1 (mm): 21.05
IJ-SC-130		Fits: SC-130, FSC-130 \| L1 (mm): 50 \| L2 (mm): 15 \| L3 (mm): 15 \| L4 (mm): 40 \| L5 (mm): 36 \| B1 (mm): 16 \| B2 (mm): 7.2 \| B3 (mm): 7.7 \| B4 (mm): 8.2 \| B5 (mm): 8 \| B6 (mm): 7.4 \| K1 (mm): 23.4
IJ-SC-165		Fits: SC-165, FSC-165 \| L1 (mm): 65 \| L2 (mm): 20 \| L3 (mm): 22 \| L4 (mm): 46.5 \| L5 (mm): 42 \| B1 (mm): 19 \| B2 (mm): 9.2 \| B3 (mm): 8.2 \| B4 (mm): 8.13 \| B5 (mm): 10 \| B6 (mm): 10 \| K1 (mm): 25.07
IJ-SC-190		Fits: SC-190, FSC-190 \| L1 (mm): 75 \| L2 (mm): 23 \| L3 (mm): 25 \| L4 (mm): 55.5 \| L5 (mm): 50.5 \| B1 (mm): 22 \| B2 (mm): 11.2 \| B3 (mm): 9.7 \| B4 (mm): 9.74 \| B5 (mm): 12 \| B6 (mm): 12 \| K1 (mm): 30.06
IJ-SC-230		Fits: SC-230, FSC-230, SL-08 \| L1 (mm): 85 \| L2 (mm): 26 \| L3 (mm): 28 \| L4 (mm): 64.5 \| L5 (mm): 59.5 \| B1 (mm): 24 \| B2 (mm): 13.2 \| B3 (mm): 11.2 \| B4 (mm): 11.38 \| B5 (mm): 14 \| B6 (mm): 14 \| K1 (mm): 35.04
IJ-SC-273		Fits: SC-273, FSC-273, SL-10 \| L1 (mm): 98 \| L2 (mm): 30 \| L3 (mm): 33 \| L4 (mm): 69.5 \| L5 (mm): 64 \| B1 (mm): 28 \| B2 (mm): 15 \| B3 (mm): 11.2 \| B4 (mm): 11.38 \| B5 (mm): 15 \| B6 (mm): 15 \| K1 (mm): 40.02
IJ-SC-310		Fits: SC-310, FSC-310, SL-12 \| L1 (mm): 110 \| L2 (mm): 35 \| L3 (mm): 35 \| L4 (mm): 82.5 \| L5 (mm): 76 \| B1 (mm): 30 \| B2 (mm): 15 \| B3 (mm): 13.4 \| B4 (mm): 16.12 \| B5 (mm): 16 \| B6 (mm): 16 \| K1 (mm): 45.08
IJ-SC-355		Fits: SC-355, SC-405 \| L1 (mm): 133 \| L2 (mm): 44 \| L3 (mm): 42 \| L4 (mm): 101 \| L5 (mm): 94.5 \| B1 (mm): 35 \| B2 (mm): 19 \| B3 (mm): 14 \| B4 (mm): 16.2 \| B5 (mm): 21 \| B6 (mm): 22 \| K1 (mm): 62.98
IJ-SC-405		Fits: SC-355, SC-405 \| L1 (mm): 133 \| L2 (mm): 44 \| L3 (mm): 42 \| L4 (mm): 101 \| L5 (mm): 94.5 \| B1 (mm): 35 \| B2 (mm): 19 \| B3 (mm): 14 \| B4 (mm): 16.2 \| B5 (mm): 21 \| B6 (mm): 22 \| K1 (mm): 62.98

Chuck JawsSamchully

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Scroll Chuck Internal Jaws (SC, FSC, SL)

Brand Samchully·Chuck Jaws

Available part numbers (10)

IJ-SC-85, IJ-SC-110, IJ-SC-130, IJ-SC-165, IJ-SC-190, IJ-SC-230, IJ-SC-273, IJ-SC-310, IJ-SC-355, IJ-SC-405

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	IJ-SC-85	Fits: SC-85, FSC-85 \| L1 (mm): 35 \| L2 (mm): 11 \| L3 (mm): 10 \| L4 (mm): 29 \| L5 (mm): 26.5 \| B1 (mm): 11 \| B2 (mm): 5.7 \| B3 (mm): 4.7 \| B4 (mm): 6.55 \| B5 (mm): 6 \| B6 (mm): 6 \| K1 (mm): 17.75
	IJ-SC-110	Fits: SC-110, FSC-110 \| L1 (mm): 42 \| L2 (mm): 13 \| L3 (mm): 13 \| L4 (mm): 34.5 \| L5 (mm): 31 \| B1 (mm): 14 \| B2 (mm): 7.5 \| B3 (mm): 6.2 \| B4 (mm): 6.55 \| B5 (mm): 7 \| B6 (mm): 4.3 \| K1 (mm): 21.05
	IJ-SC-130	Fits: SC-130, FSC-130 \| L1 (mm): 50 \| L2 (mm): 15 \| L3 (mm): 15 \| L4 (mm): 40 \| L5 (mm): 36 \| B1 (mm): 16 \| B2 (mm): 7.2 \| B3 (mm): 7.7 \| B4 (mm): 8.2 \| B5 (mm): 8 \| B6 (mm): 7.4 \| K1 (mm): 23.4
	IJ-SC-165	Fits: SC-165, FSC-165 \| L1 (mm): 65 \| L2 (mm): 20 \| L3 (mm): 22 \| L4 (mm): 46.5 \| L5 (mm): 42 \| B1 (mm): 19 \| B2 (mm): 9.2 \| B3 (mm): 8.2 \| B4 (mm): 8.13 \| B5 (mm): 10 \| B6 (mm): 10 \| K1 (mm): 25.07
	IJ-SC-190	Fits: SC-190, FSC-190 \| L1 (mm): 75 \| L2 (mm): 23 \| L3 (mm): 25 \| L4 (mm): 55.5 \| L5 (mm): 50.5 \| B1 (mm): 22 \| B2 (mm): 11.2 \| B3 (mm): 9.7 \| B4 (mm): 9.74 \| B5 (mm): 12 \| B6 (mm): 12 \| K1 (mm): 30.06
	IJ-SC-230	Fits: SC-230, FSC-230, SL-08 \| L1 (mm): 85 \| L2 (mm): 26 \| L3 (mm): 28 \| L4 (mm): 64.5 \| L5 (mm): 59.5 \| B1 (mm): 24 \| B2 (mm): 13.2 \| B3 (mm): 11.2 \| B4 (mm): 11.38 \| B5 (mm): 14 \| B6 (mm): 14 \| K1 (mm): 35.04
	IJ-SC-273	Fits: SC-273, FSC-273, SL-10 \| L1 (mm): 98 \| L2 (mm): 30 \| L3 (mm): 33 \| L4 (mm): 69.5 \| L5 (mm): 64 \| B1 (mm): 28 \| B2 (mm): 15 \| B3 (mm): 11.2 \| B4 (mm): 11.38 \| B5 (mm): 15 \| B6 (mm): 15 \| K1 (mm): 40.02
	IJ-SC-310	Fits: SC-310, FSC-310, SL-12 \| L1 (mm): 110 \| L2 (mm): 35 \| L3 (mm): 35 \| L4 (mm): 82.5 \| L5 (mm): 76 \| B1 (mm): 30 \| B2 (mm): 15 \| B3 (mm): 13.4 \| B4 (mm): 16.12 \| B5 (mm): 16 \| B6 (mm): 16 \| K1 (mm): 45.08
	IJ-SC-355	Fits: SC-355, SC-405 \| L1 (mm): 133 \| L2 (mm): 44 \| L3 (mm): 42 \| L4 (mm): 101 \| L5 (mm): 94.5 \| B1 (mm): 35 \| B2 (mm): 19 \| B3 (mm): 14 \| B4 (mm): 16.2 \| B5 (mm): 21 \| B6 (mm): 22 \| K1 (mm): 62.98
	IJ-SC-405	Fits: SC-355, SC-405 \| L1 (mm): 133 \| L2 (mm): 44 \| L3 (mm): 42 \| L4 (mm): 101 \| L5 (mm): 94.5 \| B1 (mm): 35 \| B2 (mm): 19 \| B3 (mm): 14 \| B4 (mm): 16.2 \| B5 (mm): 21 \| B6 (mm): 22 \| K1 (mm): 62.98
