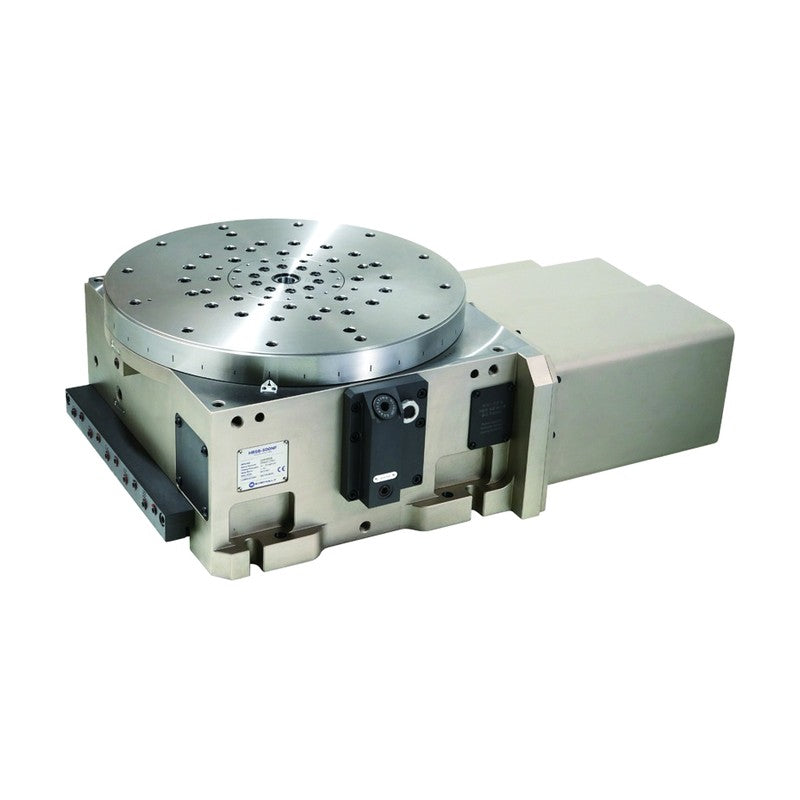

Samchully Parallel Hydraulic NC Rotary Table HRSB-500NF22

Samchully Parallel Hydraulic NC Rotary Table HRSB-500NF22

Ø500 mm parallel-type hydraulic NC rotary table with FANUC motor and internal rotary joint (10+1 ports).

Key features

  • Parallel rotary table
  • Internal rotary joint 10+1 ports (hydraulic max. 200 bar)
  • Hydraulic clamp 25~35 kgf/cm²
HRSB-500NF22 Table Dia. (mm): Ø500 | Center Height (mm): 280 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3800 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 25 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 418 | Allowable Work Inertia (kgm2): 10.67 | Allowable Load Horizontal (kg): 500
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Parallel Hydraulic NC Rotary Table HRSB-500NF22

Brand Samchully·NC Rotary Tables

Available part numbers (1)

HRSB-500NF22

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRSB-500NF22Table Dia. (mm): Ø500 | Center Height (mm): 280 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3800 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 25 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 418 | Allowable Work Inertia (kgm2): 10.67 | Allowable Load Horizontal (kg): 500
