Samchully Power Chuck Soft Jaws

Samchully Power Chuck Soft Jaws

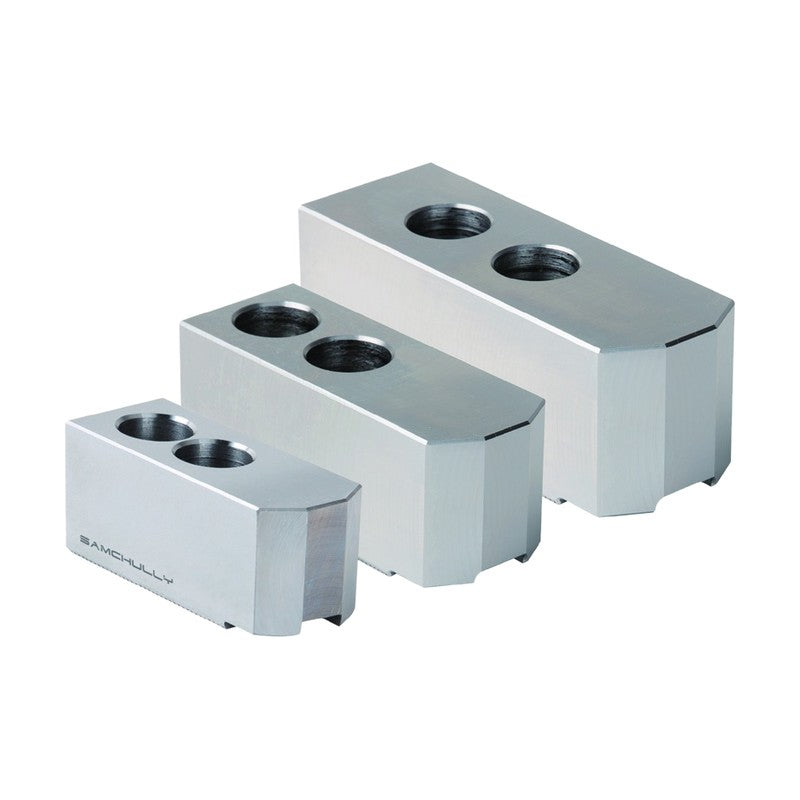

Soft jaws for SAMCHULLY power chucks (HC, HCH, HS, MH, JBH/JBM series), machined to suit the workpiece.

Key features

  • Available with 1.5x60 deg or 3.0x60 deg serration and groove type
  • Special jaws available on request
SB04C1 Fits: HCH-04 | Serration Pitch: 1.5x60˚ | S-1 (mm): 48 | S-2 (mm): 19 | S-3 (mm): 23 | S-4 (mm): 8 | S-5 (mm): 3 | S-6 (mm): 8 | S-7 (mm): 15 | S-8 (mm): 25 | S-9 (mm): 11 | S-10 (mm): 6.6 | S-11 (mm): 15
SB05N1 Fits: HC-04, HS-05 | Serration Pitch: 1.5x60˚ | S-1 (mm): 54 | S-2 (mm): 23 | S-3 (mm): 25 | S-4 (mm): 10 | S-5 (mm): 4 | S-6 (mm): 12 | S-7 (mm): 14 | S-8 (mm): 28 | S-9 (mm): 13.5 | S-10 (mm): 8.5 | S-11 (mm): 16.5
SB05B1 Fits: HC-05 | Serration Pitch: 1.5x60˚ | S-1 (mm): 62 | S-2 (mm): 23 | S-3 (mm): 27 | S-4 (mm): 10 | S-5 (mm): 4 | S-6 (mm): 14 | S-7 (mm): 19 | S-8 (mm): 29 | S-9 (mm): 13.5 | S-10 (mm): 8.5 | S-11 (mm): 18
SB06B1 Fits: HS/HCH/HC-06, MH-206 | Serration Pitch: 1.5x60˚ | S-1 (mm): 72 | S-2 (mm): 31 | S-3: 32 (40/60/80/100/120) | S-4 (mm): 12 | S-5 (mm): 5 | S-6 (mm): 15 | S-7 (mm): 20 | S-8 (mm): 37 | S-9 (mm): 17 | S-10 (mm): 11 | S-11 (mm): 20
JB06B1 Fits: JBH/JBM-306 | Serration Pitch: 1.5x60˚ | S-1 (mm): 72 | S-2 (mm): 32 | S-3: 32 (40/60/80/100/120) | S-4 (mm): 12 | S-5 (mm): 5 | S-6 (mm): 15 | S-7 (mm): 20 | S-8 (mm): 37 | S-9 (mm): 17 | S-10 (mm): 11 | S-11 (mm): 20
SB08B1 Fits: HCH/HC/HS-08, MH-208 | Serration Pitch: 1.5x60˚ | S-1 (mm): 95 | S-2 (mm): 35 | S-3: 37.5 (60/80/100/120) | S-4 (mm): 14 | S-5 (mm): 5 | S-6 (mm): 24 | S-7 (mm): 25 | S-8 (mm): 46 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 23
JB08B1 Fits: JBH/JBM-308 | Serration Pitch: 1.5x60˚ | S-1 (mm): 95 | S-2 (mm): 37 | S-3: 37.5 (60/80/100/120) | S-4 (mm): 14 | S-5 (mm): 5 | S-6 (mm): 24 | S-7 (mm): 25 | S-8 (mm): 46 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 23
SB10B1 Fits: HCH/HC/HS-10, MH-210 | Serration Pitch: 1.5x60˚ | S-1 (mm): 110 | S-2 (mm): 40 | S-3: 42 (60/80/100/120) | S-4 (mm): 16 | S-5 (mm): 5 | S-6 (mm): 30 | S-7 (mm): 30 | S-8 (mm): 50 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 27
JB10B1 Fits: JBH/JBM-310 | Serration Pitch: 1.5x60˚ | S-1 (mm): 110 | S-2 (mm): 42 | S-3: 42 (60/80/100/120) | S-4 (mm): 16 | S-5 (mm): 5 | S-6 (mm): 30 | S-7 (mm): 30 | S-8 (mm): 50 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 27
SB12A1 Fits: HC-12 | Serration Pitch: 1.5x60˚ | S-1 (mm): 129 | S-2 (mm): 49 | S-3: 49.5 (60/80/100/120) | S-4 (mm): 18 | S-5 (mm): 5 | S-6 (mm): 39 | S-7 (mm): 30 | S-8 (mm): 60 | S-9 (mm): 23 | S-10 (mm): 15 | S-11 (mm): 30
SB12N1 Fits: HS-12, MH-212 | Serration Pitch: 1.5x60˚ | S-1 (mm): 111 | S-2 (mm): 49 | S-3: 49.5 (60/80/100/120) | S-4 (mm): 21 | S-5 (mm): 4 | S-6 (mm): 21 | S-7 (mm): 30 | S-8 (mm): 60 | S-9 (mm): 25 | S-10 (mm): 17 | S-11 (mm): 32.5
JB12N1 Fits: JBH/JBM-312 | Serration Pitch: 1.5x60˚ | S-1 (mm): 111 | S-2 (mm): 52 | S-3: 49.5 (60/80/100/120) | S-4 (mm): 21 | S-5 (mm): 4 | S-6 (mm): 21 | S-7 (mm): 30 | S-8 (mm): 60 | S-9 (mm): 25 | S-10 (mm): 17 | S-11 (mm): 32.5
SB15C1 Fits: HCH-15, HCH-18 | Serration Pitch: 1.5x60˚ | S-1 (mm): 165 | S-2 (mm): 62 | S-3 (mm): 66 | S-4 (mm): 22 | S-5 (mm): 8 | S-6 (mm): 37 | S-7 (mm): 43 | S-8 (mm): 85 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 42
SB15N1 Fits: HC-15, HC-18 | Serration Pitch: 1.5x60˚ | S-1 (mm): 135 | S-2 (mm): 50 | S-3 (mm): 59 | S-4 (mm): 25.5 | S-5 (mm): 5 | S-6 (mm): 26 | S-7 (mm): 43 | S-8 (mm): 66 | S-9 (mm): 36 | S-10 (mm): 21 | S-11 (mm): 38
SB218A2 Fits: MH-218 | Serration Pitch: 3.0x60˚ | S-1 (mm): 165 | S-2 (mm): 62 | S-3 (mm): 66 | S-4 (mm): 22 | S-5 (mm): 8 | S-6 (mm): 30 | S-7 (mm): 50 | S-8 (mm): 85 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 42
SB21A2 Fits: HC/HCH-21, HC/HCH-24, MH-221,224 | Serration Pitch: 3.0x60˚ | S-1 (mm): 180 | S-2 (mm): 65 | S-3 (mm): 69 | S-4 (mm): 25 | S-5 (mm): 9 | S-6 (mm): 40 | S-7 (mm): 60 | S-8 (mm): 80 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 45
SB32B2 Fits: HCH-32 [Serration] | Serration Pitch: 3.0x60˚ | S-1 (mm): 160 | S-2 (mm): 75 | S-3 (mm): 75 | S-4 (mm): 25.5 | S-5 (mm): 7 | S-6 (mm): 25 | S-7 (mm): 38 | S-8 (mm): 97 | S-9 (mm): 32 | S-10 (mm): 22 | S-11 (mm): 54
SB32GB Fits: HC-32 [Groove] | S-1 (mm): 165 | S-2 (mm): 75 | S-3 (mm): 82 | S-4 (mm): 12.7 | S-5 (mm): 13 | S-6 (mm): 21.9 | S-7 (mm): 76.2 | S-8 (mm): 66.9 | S-9 (mm): 32 | S-10 (mm): 22 | S-11 (mm): 59 | S-12: M20
SB32SB2 Fits: HC-32 [Serration] | Serration Pitch: 3.0x60˚ | S-1 (mm): 185 | S-2 (mm): 75 | S-3 (mm): 75 | S-4 (mm): 25.5 | S-5 (mm): 7.5 | S-6 (mm): 26.8 | S-7 (mm): 38.1 | S-8 (mm): 38.1 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 57
SB40GB Fits: HC-40,50,55,63,70,80 [Groove] | S-1 (mm): 270 | S-2 (mm): 110 | S-3 (mm): 117 | S-4 (mm): 30 | S-5 (mm): 13 | S-6 (mm): 48.8 | S-7 (mm): 76.2 | S-8 (mm): 76.2 | S-9 (mm): 39 | S-10 (mm): 26 | S-11 (mm): 90 | S-12: M24
SB40SB2 Fits: HC-40,50,55,63,70,80 [Serration] | Serration Pitch: 3.0x60˚ | S-1 (mm): 270 | S-2 (mm): 110 | S-3 (mm): 110 | S-4 (mm): 30 | S-5 (mm): 7.5 | S-6 (mm): 32.5 | S-7 (mm): 60 | S-8 (mm): 60 | S-9 (mm): 39 | S-10 (mm): 26 | S-11 (mm): 90
Chuck JawsSamchully
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Power Chuck Soft Jaws

Brand Samchully·Chuck Jaws

Available part numbers (21)

SB04C1, SB05N1, SB05B1, SB06B1, JB06B1, SB08B1, JB08B1, SB10B1, JB10B1, SB12A1 + 11 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SB04C1Fits: HCH-04 | Serration Pitch: 1.5x60˚ | S-1 (mm): 48 | S-2 (mm): 19 | S-3 (mm): 23 | S-4 (mm): 8 | S-5 (mm): 3 | S-6 (mm): 8 | S-7 (mm): 15 | S-8 (mm): 25 | S-9 (mm): 11 | S-10 (mm): 6.6 | S-11 (mm): 15
SB05N1Fits: HC-04, HS-05 | Serration Pitch: 1.5x60˚ | S-1 (mm): 54 | S-2 (mm): 23 | S-3 (mm): 25 | S-4 (mm): 10 | S-5 (mm): 4 | S-6 (mm): 12 | S-7 (mm): 14 | S-8 (mm): 28 | S-9 (mm): 13.5 | S-10 (mm): 8.5 | S-11 (mm): 16.5
SB05B1Fits: HC-05 | Serration Pitch: 1.5x60˚ | S-1 (mm): 62 | S-2 (mm): 23 | S-3 (mm): 27 | S-4 (mm): 10 | S-5 (mm): 4 | S-6 (mm): 14 | S-7 (mm): 19 | S-8 (mm): 29 | S-9 (mm): 13.5 | S-10 (mm): 8.5 | S-11 (mm): 18
SB06B1Fits: HS/HCH/HC-06, MH-206 | Serration Pitch: 1.5x60˚ | S-1 (mm): 72 | S-2 (mm): 31 | S-3: 32 (40/60/80/100/120) | S-4 (mm): 12 | S-5 (mm): 5 | S-6 (mm): 15 | S-7 (mm): 20 | S-8 (mm): 37 | S-9 (mm): 17 | S-10 (mm): 11 | S-11 (mm): 20
JB06B1Fits: JBH/JBM-306 | Serration Pitch: 1.5x60˚ | S-1 (mm): 72 | S-2 (mm): 32 | S-3: 32 (40/60/80/100/120) | S-4 (mm): 12 | S-5 (mm): 5 | S-6 (mm): 15 | S-7 (mm): 20 | S-8 (mm): 37 | S-9 (mm): 17 | S-10 (mm): 11 | S-11 (mm): 20
SB08B1Fits: HCH/HC/HS-08, MH-208 | Serration Pitch: 1.5x60˚ | S-1 (mm): 95 | S-2 (mm): 35 | S-3: 37.5 (60/80/100/120) | S-4 (mm): 14 | S-5 (mm): 5 | S-6 (mm): 24 | S-7 (mm): 25 | S-8 (mm): 46 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 23
JB08B1Fits: JBH/JBM-308 | Serration Pitch: 1.5x60˚ | S-1 (mm): 95 | S-2 (mm): 37 | S-3: 37.5 (60/80/100/120) | S-4 (mm): 14 | S-5 (mm): 5 | S-6 (mm): 24 | S-7 (mm): 25 | S-8 (mm): 46 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 23
SB10B1Fits: HCH/HC/HS-10, MH-210 | Serration Pitch: 1.5x60˚ | S-1 (mm): 110 | S-2 (mm): 40 | S-3: 42 (60/80/100/120) | S-4 (mm): 16 | S-5 (mm): 5 | S-6 (mm): 30 | S-7 (mm): 30 | S-8 (mm): 50 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 27
JB10B1Fits: JBH/JBM-310 | Serration Pitch: 1.5x60˚ | S-1 (mm): 110 | S-2 (mm): 42 | S-3: 42 (60/80/100/120) | S-4 (mm): 16 | S-5 (mm): 5 | S-6 (mm): 30 | S-7 (mm): 30 | S-8 (mm): 50 | S-9 (mm): 19 | S-10 (mm): 13 | S-11 (mm): 27
SB12A1Fits: HC-12 | Serration Pitch: 1.5x60˚ | S-1 (mm): 129 | S-2 (mm): 49 | S-3: 49.5 (60/80/100/120) | S-4 (mm): 18 | S-5 (mm): 5 | S-6 (mm): 39 | S-7 (mm): 30 | S-8 (mm): 60 | S-9 (mm): 23 | S-10 (mm): 15 | S-11 (mm): 30
SB12N1Fits: HS-12, MH-212 | Serration Pitch: 1.5x60˚ | S-1 (mm): 111 | S-2 (mm): 49 | S-3: 49.5 (60/80/100/120) | S-4 (mm): 21 | S-5 (mm): 4 | S-6 (mm): 21 | S-7 (mm): 30 | S-8 (mm): 60 | S-9 (mm): 25 | S-10 (mm): 17 | S-11 (mm): 32.5
JB12N1Fits: JBH/JBM-312 | Serration Pitch: 1.5x60˚ | S-1 (mm): 111 | S-2 (mm): 52 | S-3: 49.5 (60/80/100/120) | S-4 (mm): 21 | S-5 (mm): 4 | S-6 (mm): 21 | S-7 (mm): 30 | S-8 (mm): 60 | S-9 (mm): 25 | S-10 (mm): 17 | S-11 (mm): 32.5
SB15C1Fits: HCH-15, HCH-18 | Serration Pitch: 1.5x60˚ | S-1 (mm): 165 | S-2 (mm): 62 | S-3 (mm): 66 | S-4 (mm): 22 | S-5 (mm): 8 | S-6 (mm): 37 | S-7 (mm): 43 | S-8 (mm): 85 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 42
SB15N1Fits: HC-15, HC-18 | Serration Pitch: 1.5x60˚ | S-1 (mm): 135 | S-2 (mm): 50 | S-3 (mm): 59 | S-4 (mm): 25.5 | S-5 (mm): 5 | S-6 (mm): 26 | S-7 (mm): 43 | S-8 (mm): 66 | S-9 (mm): 36 | S-10 (mm): 21 | S-11 (mm): 38
SB218A2Fits: MH-218 | Serration Pitch: 3.0x60˚ | S-1 (mm): 165 | S-2 (mm): 62 | S-3 (mm): 66 | S-4 (mm): 22 | S-5 (mm): 8 | S-6 (mm): 30 | S-7 (mm): 50 | S-8 (mm): 85 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 42
SB21A2Fits: HC/HCH-21, HC/HCH-24, MH-221,224 | Serration Pitch: 3.0x60˚ | S-1 (mm): 180 | S-2 (mm): 65 | S-3 (mm): 69 | S-4 (mm): 25 | S-5 (mm): 9 | S-6 (mm): 40 | S-7 (mm): 60 | S-8 (mm): 80 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 45
SB32B2Fits: HCH-32 [Serration] | Serration Pitch: 3.0x60˚ | S-1 (mm): 160 | S-2 (mm): 75 | S-3 (mm): 75 | S-4 (mm): 25.5 | S-5 (mm): 7 | S-6 (mm): 25 | S-7 (mm): 38 | S-8 (mm): 97 | S-9 (mm): 32 | S-10 (mm): 22 | S-11 (mm): 54
SB32GBFits: HC-32 [Groove] | S-1 (mm): 165 | S-2 (mm): 75 | S-3 (mm): 82 | S-4 (mm): 12.7 | S-5 (mm): 13 | S-6 (mm): 21.9 | S-7 (mm): 76.2 | S-8 (mm): 66.9 | S-9 (mm): 32 | S-10 (mm): 22 | S-11 (mm): 59 | S-12: M20
SB32SB2Fits: HC-32 [Serration] | Serration Pitch: 3.0x60˚ | S-1 (mm): 185 | S-2 (mm): 75 | S-3 (mm): 75 | S-4 (mm): 25.5 | S-5 (mm): 7.5 | S-6 (mm): 26.8 | S-7 (mm): 38.1 | S-8 (mm): 38.1 | S-9 (mm): 32 | S-10 (mm): 21 | S-11 (mm): 57
SB40GBFits: HC-40,50,55,63,70,80 [Groove] | S-1 (mm): 270 | S-2 (mm): 110 | S-3 (mm): 117 | S-4 (mm): 30 | S-5 (mm): 13 | S-6 (mm): 48.8 | S-7 (mm): 76.2 | S-8 (mm): 76.2 | S-9 (mm): 39 | S-10 (mm): 26 | S-11 (mm): 90 | S-12: M24
SB40SB2Fits: HC-40,50,55,63,70,80 [Serration] | Serration Pitch: 3.0x60˚ | S-1 (mm): 270 | S-2 (mm): 110 | S-3 (mm): 110 | S-4 (mm): 30 | S-5 (mm): 7.5 | S-6 (mm): 32.5 | S-7 (mm): 60 | S-8 (mm): 60 | S-9 (mm): 39 | S-10 (mm): 26 | S-11 (mm): 90
