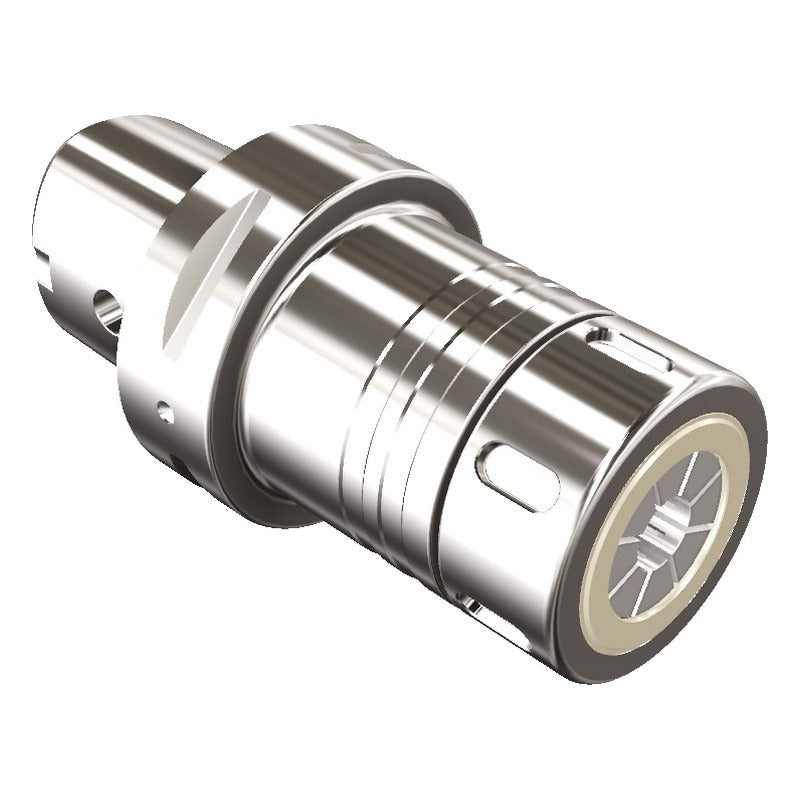

Samchully PSC ER Collet Chuck

Samchully PSC ER Collet Chuck

ER Collet Chuck with PSC polygonal taper (ISO 26623-1) shank, available in PSC63 sizes.

Key features

  • Eccentric collet race for greater accuracy and faster set-up
  • Ball bearing nut on ER16 and larger
  • Specially tempered steel and coating

Specifications

Shank standard ISO 26623-1
Balancing grade G6.3
Max speed (rpm) 15,000
PSC63-ER11-60 Shank: PSC63 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 60 | H (mm): 26~38 | Weight (kg): 1.1
PSC63-ER11-90 Shank: PSC63 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 90 | H (mm): 26~38 | Weight (kg): 1.2
PSC63-ER11-135 Shank: PSC63 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 135 | H (mm): 26~38 | Weight (kg): 1.4
PSC63-ER16-60 Shank: PSC63 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 60 | H (mm): 35~50 | Weight (kg): 1.4
PSC63-ER16-90 Shank: PSC63 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 90 | H (mm): 35~50 | Weight (kg): 1.5
PSC63-ER16-135 Shank: PSC63 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 135 | H (mm): 35~50 | Weight (kg): 1.8
PSC63-ER20-60 Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 60 | H (mm): 42~52 | Weight (kg): 1.5
PSC63-ER20-90 Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 90 | H (mm): 42~52 | Weight (kg): 1.7
PSC63-ER20-120 Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 120 | H (mm): 42~52 | Weight (kg): 1.8
PSC63-ER20-150 Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 150 | H (mm): 42~52 | Weight (kg): 1.9
PSC63-ER25-60 Shank: PSC63 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 60 | H (mm): 44~67 | Weight (kg): 1.6
PSC63-ER25-90 Shank: PSC63 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 90 | H (mm): 44~67 | Weight (kg): 1.8
PSC63-ER25-120 Shank: PSC63 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 120 | H (mm): 44~67 | Weight (kg): 2.0
PSC63-ER32-90 Shank: PSC63 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 90 | H (mm): 50~60 | Weight (kg): 1.9
PSC63-ER32-165 Shank: PSC63 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 165 | H (mm): 50~68 | Weight (kg): 3.0
PSC63-ER40-90 Shank: PSC63 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 90 | H (mm): 56~71 | Weight (kg): 2.2
PSC63-ER40-165 Shank: PSC63 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 165 | H (mm): 56~71 | Weight (kg): 3.5
Collet ChucksSamchully
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully PSC ER Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (17)

PSC63-ER11-60, PSC63-ER11-90, PSC63-ER11-135, PSC63-ER16-60, PSC63-ER16-90, PSC63-ER16-135, PSC63-ER20-60, PSC63-ER20-90, PSC63-ER20-120, PSC63-ER20-150 + 7 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSC63-ER11-60Shank: PSC63 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 60 | H (mm): 26~38 | Weight (kg): 1.1
PSC63-ER11-90Shank: PSC63 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 90 | H (mm): 26~38 | Weight (kg): 1.2
PSC63-ER11-135Shank: PSC63 | Ød (mm): 2.0~7.0 | ØD (mm): 19 | ØD1 (mm): 19 | L (mm): 135 | H (mm): 26~38 | Weight (kg): 1.4
PSC63-ER16-60Shank: PSC63 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 60 | H (mm): 35~50 | Weight (kg): 1.4
PSC63-ER16-90Shank: PSC63 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 90 | H (mm): 35~50 | Weight (kg): 1.5
PSC63-ER16-135Shank: PSC63 | Ød (mm): 1.0~10.0 | ØD (mm): 30 | ØD1 (mm): 30 | L (mm): 135 | H (mm): 35~50 | Weight (kg): 1.8
PSC63-ER20-60Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 60 | H (mm): 42~52 | Weight (kg): 1.5
PSC63-ER20-90Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 90 | H (mm): 42~52 | Weight (kg): 1.7
PSC63-ER20-120Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 120 | H (mm): 42~52 | Weight (kg): 1.8
PSC63-ER20-150Shank: PSC63 | Ød (mm): 1.0~13.0 | ØD (mm): 35 | ØD1 (mm): 35 | L (mm): 150 | H (mm): 42~52 | Weight (kg): 1.9
PSC63-ER25-60Shank: PSC63 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 60 | H (mm): 44~67 | Weight (kg): 1.6
PSC63-ER25-90Shank: PSC63 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 90 | H (mm): 44~67 | Weight (kg): 1.8
PSC63-ER25-120Shank: PSC63 | Ød (mm): 2.0~16.0 | ØD (mm): 42 | ØD1 (mm): 42 | L (mm): 120 | H (mm): 44~67 | Weight (kg): 2.0
PSC63-ER32-90Shank: PSC63 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 90 | H (mm): 50~60 | Weight (kg): 1.9
PSC63-ER32-165Shank: PSC63 | Ød (mm): 2.0~20.0 | ØD (mm): 50 | ØD1 (mm): 50 | L (mm): 165 | H (mm): 50~68 | Weight (kg): 3.0
PSC63-ER40-90Shank: PSC63 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 90 | H (mm): 56~71 | Weight (kg): 2.2
PSC63-ER40-165Shank: PSC63 | Ød (mm): 2.0~26.0 | ØD (mm): 63 | ØD1 (mm): 58 | L (mm): 165 | H (mm): 56~71 | Weight (kg): 3.5
