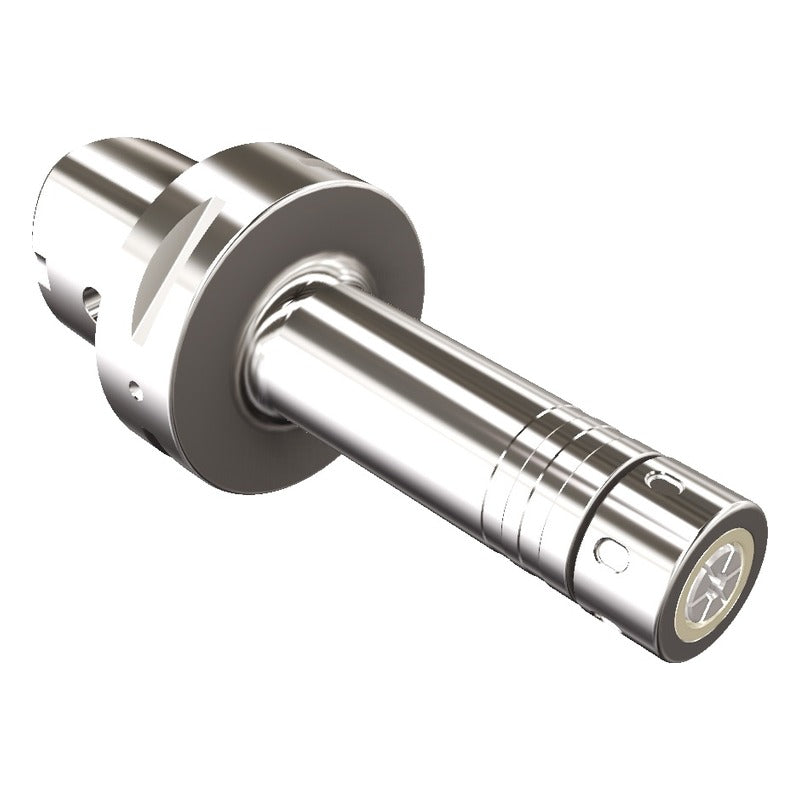

Samchully PSC SK Collet Chuck

Samchully PSC SK Collet Chuck

SK Collet Chuck with PSC polygonal taper (ISO 26623-1) shank, available in PSC63 sizes.

Key features

  • SK collets give double the gripping strength of ER collets
  • Run-out within 0.003 mm at 4D
  • Ball bearing nut included

Specifications

Shank standard ISO 26623-1
Balancing grade G6.3
Max speed (rpm) 15,000
PSC63-SK06-60 Shank: PSC63 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 60 | H (mm): 35 | Weight (kg): 1.2
PSC63-SK06-90 Shank: PSC63 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 90 | H (mm): 35 | Weight (kg): 1.2
PSC63-SK06-120 Shank: PSC63 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 120 | H (mm): 35 | Weight (kg): 1.3
PSC63-SK06-150 Shank: PSC63 | Ød (mm): 1.8~6.0 | ØD (mm): 22 | ØD1 (mm): 22 | L (mm): 150 | H (mm): 35 | Weight (kg): 1.4
PSC63-SK08-60 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 60 | H (mm): 42 | Weight (kg): 1.3
PSC63-SK08-75 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 75 | H (mm): 42 | Weight (kg): 1.4
PSC63-SK08-90 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 90 | H (mm): 42 | Weight (kg): 1.5
PSC63-SK08-120 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 120 | H (mm): 42 | Weight (kg): 1.6
PSC63-SK08-150 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 150 | H (mm): 42 | Weight (kg): 1.7
PSC63-SK08-180 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 180 | H (mm): 42 | Weight (kg): 1.9
PSC63-SK08-200 Shank: PSC63 | Ød (mm): 1.75~8.0 | ØD (mm): 25 | ØD1 (mm): 25 | L (mm): 200 | H (mm): 42 | Weight (kg): 2.0
PSC63-SK10-60 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 60 | H (mm): 50 | Weight (kg): 1.3
PSC63-SK10-75 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 75 | H (mm): 50 | Weight (kg): 1.4
PSC63-SK10-90 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 90 | H (mm): 50 | Weight (kg): 1.5
PSC63-SK10-120 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 120 | H (mm): 50 | Weight (kg): 1.6
PSC63-SK10-150 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 150 | H (mm): 50 | Weight (kg): 1.7
PSC63-SK10-180 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 180 | H (mm): 50 | Weight (kg): 1.9
PSC63-SK10-200 Shank: PSC63 | Ød (mm): 1.75~10.0 | ØD (mm): 28 | ØD1 (mm): 28 | L (mm): 200 | H (mm): 50 | Weight (kg): 2.0
PSC63-SK13-60 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 60 | H (mm): 65 | Weight (kg): 1.3
PSC63-SK13-75 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 75 | H (mm): 65 | Weight (kg): 1.4
PSC63-SK13-90 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 90 | H (mm): 65 | Weight (kg): 1.5
PSC63-SK13-120 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 120 | H (mm): 65 | Weight (kg): 1.8
PSC63-SK13-150 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 150 | H (mm): 65 | Weight (kg): 1.9
PSC63-SK13-180 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 180 | H (mm): 65 | Weight (kg): 2.1
PSC63-SK13-200 Shank: PSC63 | Ød (mm): 2.75~13.0 | ØD (mm): 33 | ØD1 (mm): 33 | L (mm): 200 | H (mm): 65 | Weight (kg): 2.2
PSC63-SK16-60 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 60 | H (mm): 65 | Weight (kg): 1.5
PSC63-SK16-75 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 75 | H (mm): 67 | Weight (kg): 1.6
PSC63-SK16-90 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 90 | H (mm): 70 | Weight (kg): 1.7
PSC63-SK16-120 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 120 | H (mm): 70 | Weight (kg): 2.0
PSC63-SK16-150 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 150 | H (mm): 70 | Weight (kg): 2.3
PSC63-SK16-180 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 180 | H (mm): 70 | Weight (kg): 2.6
PSC63-SK16-200 Shank: PSC63 | Ød (mm): 2.75~16.0 | ØD (mm): 40 | ØD1 (mm): 40 | L (mm): 200 | H (mm): 70 | Weight (kg): 2.7
PSC63-SK20-60 Shank: PSC63 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 60 | H (mm): 60 | Weight (kg): 1.5
PSC63-SK20-75 Shank: PSC63 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 75 | H (mm): 70 | Weight (kg): 1.6
PSC63-SK20-90 Shank: PSC63 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 90 | H (mm): 80 | Weight (kg): 1.8
PSC63-SK20-120 Shank: PSC63 | Ød (mm): 3.6~20.0 | ØD (mm): 48.5 | ØD1 (mm): 48.5 | L (mm): 120 | H (mm): 80 | Weight (kg): 2.2
PSC63-SK25-75 Shank: PSC63 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 75 | H (mm): 75 | Weight (kg): 1.6
PSC63-SK25-90 Shank: PSC63 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 90 | H (mm): 75 | Weight (kg): 1.9
PSC63-SK25-120 Shank: PSC63 | Ød (mm): 7.6~25.4 | ØD (mm): 55 | ØD1 (mm): 55 | L (mm): 120 | H (mm): 85 | Weight (kg): 2.2
