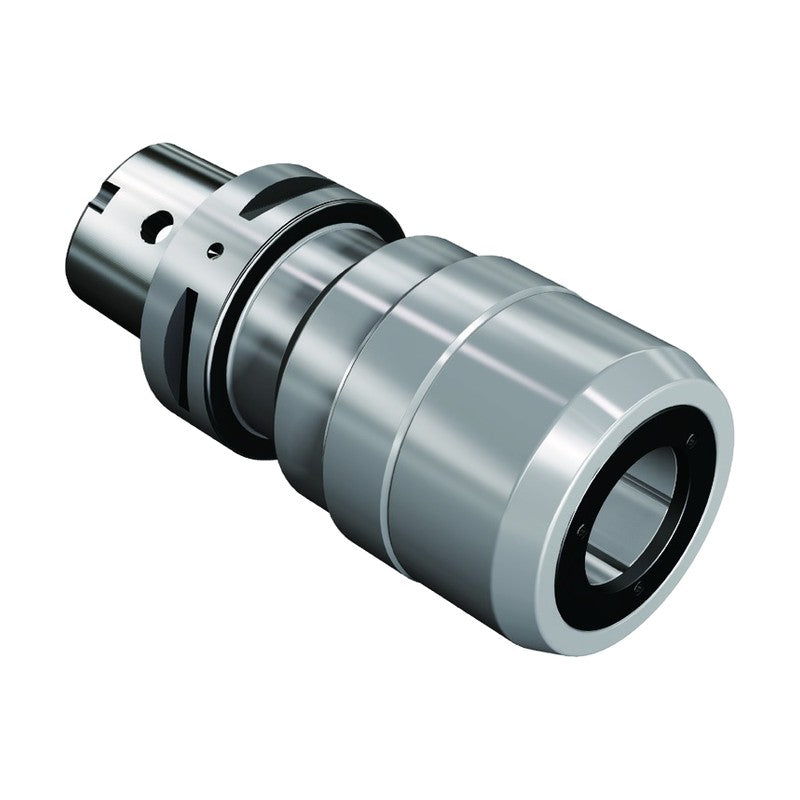

Samchully PSC SPEEDIA High-Speed Milling Chuck

Samchully PSC SPEEDIA High-Speed Milling Chuck

SPEEDIA High-Speed Milling Chuck with PSC polygonal taper (ISO 26623-1) shank, available in PSC50, PSC63, PSC80 sizes.

Key features

  • Designed for high-speed rotation
  • Extreme gripping strength with high precision
  • Smooth nut improves balance and prevents coolant flaring

Specifications

Shank standard ISO 26623-1
Run-out 5 µm
Max speed (rpm) 25,000
PSC50-C16-65S Shank: PSC50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 65 | H max. (mm): 58 | E (mm): 55 | Weight (kg): 0.8
PSC50-C16-90S Shank: PSC50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H max. (mm): 71 | E (mm): 55 | Weight (kg): 1.3
PSC50-C20-75S Shank: PSC50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H max. (mm): 68 | E (mm): 56 | Weight (kg): 1.1
PSC50-C20-90S Shank: PSC50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 1.4
PSC50-C25-75S Shank: PSC50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H max. (mm): 68 | E (mm): 57 | Weight (kg): 1.4
PSC50-C25-90S Shank: PSC50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 90 | H max. (mm): 83 | E (mm): 57 | Weight (kg): 1.7
PSC63-C16-70S Shank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 70 | H max. (mm): 61 | E (mm): 55 | Weight (kg): 1.6
PSC63-C16-90S Shank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H max. (mm): 81 | E (mm): 55 | Weight (kg): 2.0
PSC63-C16-105S Shank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H max. (mm): 71 | E (mm): 55 | Weight (kg): 2.3
PSC63-C16-135S Shank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 135 | H max. (mm): 71 | E (mm): 55 | Weight (kg): 2.9
PSC63-C20-75S Shank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H max. (mm): 66 | E (mm): 56 | Weight (kg): 1.9
PSC63-C20-90S Shank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 2.1
PSC63-C20-105S Shank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 2.4
PSC63-C20-135S Shank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 3.0
PSC63-C25-75S Shank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H max. (mm): 66 | E (mm): 57 | Weight (kg): 2.1
PSC63-C25-90S Shank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 90 | H max. (mm): 81 | E (mm): 57 | Weight (kg): 2.4
PSC63-C25-105S Shank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H max. (mm): 85 | E (mm): 57 | Weight (kg): 2.8
PSC63-C25-135S Shank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 135 | H max. (mm): 85 | E (mm): 57 | Weight (kg): 3.3
PSC63-C32-90S Shank: PSC63 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 90 | H max. (mm): 81 | E (mm): 64 | Weight (kg): 2.5
PSC63-C32-105S Shank: PSC63 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 2.9
PSC63-C32-135S Shank: PSC63 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 3.4
PSC80-C16-70S Shank: PSC80 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 70 | H max. (mm): 71 | E (mm): 50
PSC80-C16-105S Shank: PSC80 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H max. (mm): 71 | E (mm): 50
PSC80-C20-75S Shank: PSC80 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H max. (mm): 75 | E (mm): 56
PSC80-C20-105S Shank: PSC80 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H max. (mm): 80 | E (mm): 56
PSC80-C20-135S Shank: PSC80 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H max. (mm): 80 | E (mm): 56
PSC80-C25-75S Shank: PSC80 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H max. (mm): 75 | E (mm): 65
PSC80-C25-105S Shank: PSC80 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H max. (mm): 90 | E (mm): 65
PSC80-C25-165S Shank: PSC80 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 165 | H max. (mm): 90 | E (mm): 65
PSC80-C32-90S Shank: PSC80 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 90 | H max. (mm): 90 | E (mm): 71
PSC80-C32-105S Shank: PSC80 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H max. (mm): 100 | E (mm): 71
PSC80-C32-135S Shank: PSC80 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H max. (mm): 105 | E (mm): 71
Milling ChucksSamchully
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully PSC SPEEDIA High-Speed Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (32)

PSC50-C16-65S, PSC50-C16-90S, PSC50-C20-75S, PSC50-C20-90S, PSC50-C25-75S, PSC50-C25-90S, PSC63-C16-70S, PSC63-C16-90S, PSC63-C16-105S, PSC63-C16-135S + 22 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSC50-C16-65SShank: PSC50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 65 | H max. (mm): 58 | E (mm): 55 | Weight (kg): 0.8
PSC50-C16-90SShank: PSC50 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H max. (mm): 71 | E (mm): 55 | Weight (kg): 1.3
PSC50-C20-75SShank: PSC50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H max. (mm): 68 | E (mm): 56 | Weight (kg): 1.1
PSC50-C20-90SShank: PSC50 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 1.4
PSC50-C25-75SShank: PSC50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H max. (mm): 68 | E (mm): 57 | Weight (kg): 1.4
PSC50-C25-90SShank: PSC50 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 90 | H max. (mm): 83 | E (mm): 57 | Weight (kg): 1.7
PSC63-C16-70SShank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 70 | H max. (mm): 61 | E (mm): 55 | Weight (kg): 1.6
PSC63-C16-90SShank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 90 | H max. (mm): 81 | E (mm): 55 | Weight (kg): 2.0
PSC63-C16-105SShank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H max. (mm): 71 | E (mm): 55 | Weight (kg): 2.3
PSC63-C16-135SShank: PSC63 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 135 | H max. (mm): 71 | E (mm): 55 | Weight (kg): 2.9
PSC63-C20-75SShank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H max. (mm): 66 | E (mm): 56 | Weight (kg): 1.9
PSC63-C20-90SShank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 90 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 2.1
PSC63-C20-105SShank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 2.4
PSC63-C20-135SShank: PSC63 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 3.0
PSC63-C25-75SShank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H max. (mm): 66 | E (mm): 57 | Weight (kg): 2.1
PSC63-C25-90SShank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 90 | H max. (mm): 81 | E (mm): 57 | Weight (kg): 2.4
PSC63-C25-105SShank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H max. (mm): 85 | E (mm): 57 | Weight (kg): 2.8
PSC63-C25-135SShank: PSC63 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 135 | H max. (mm): 85 | E (mm): 57 | Weight (kg): 3.3
PSC63-C32-90SShank: PSC63 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 90 | H max. (mm): 81 | E (mm): 64 | Weight (kg): 2.5
PSC63-C32-105SShank: PSC63 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 2.9
PSC63-C32-135SShank: PSC63 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 3.4
PSC80-C16-70SShank: PSC80 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 70 | H max. (mm): 71 | E (mm): 50
PSC80-C16-105SShank: PSC80 | Ød (mm): 16 | ØD (mm): 40 | L (mm): 105 | H max. (mm): 71 | E (mm): 50
PSC80-C20-75SShank: PSC80 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 75 | H max. (mm): 75 | E (mm): 56
PSC80-C20-105SShank: PSC80 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 105 | H max. (mm): 80 | E (mm): 56
PSC80-C20-135SShank: PSC80 | Ød (mm): 20 | ØD (mm): 48 | L (mm): 135 | H max. (mm): 80 | E (mm): 56
PSC80-C25-75SShank: PSC80 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 75 | H max. (mm): 75 | E (mm): 65
PSC80-C25-105SShank: PSC80 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 105 | H max. (mm): 90 | E (mm): 65
PSC80-C25-165SShank: PSC80 | Ød (mm): 25 | ØD (mm): 55 | L (mm): 165 | H max. (mm): 90 | E (mm): 65
PSC80-C32-90SShank: PSC80 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 90 | H max. (mm): 90 | E (mm): 71
PSC80-C32-105SShank: PSC80 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 105 | H max. (mm): 100 | E (mm): 71
PSC80-C32-135SShank: PSC80 | Ød (mm): 32 | ØD (mm): 68 | L (mm): 135 | H max. (mm): 105 | E (mm): 71
