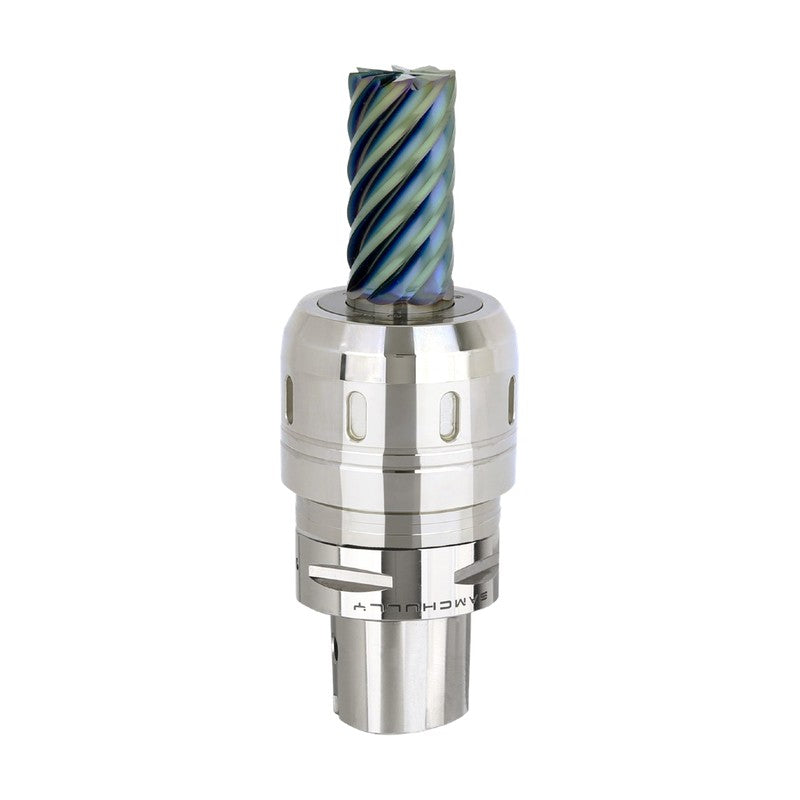

Samchully PSC Standard Titan Milling Chuck

Samchully PSC Standard Titan Milling Chuck

Standard Titan Milling Chuck with PSC polygonal taper (ISO 26623-1) shank, available in PSC50, PSC63, PSC80 sizes.

Key features

  • Extreme gripping strength with high precision for aggressive material removal
  • Minimal run-out extends cutting tool life and improves surface finish
  • Straight collet and spanner available as options

Specifications

Shank standard ISO 26623-1
Run-out 10 µm
PSC50-C16-65 Shank: PSC50 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 65 | H max. (mm): 58 | E (mm): 55 | Weight (kg): 0.8
PSC50-C20-75 Shank: PSC50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 75 | H max. (mm): 68 | E (mm): 56 | Weight (kg): 1
PSC50-C20-105 Shank: PSC50 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 1.4
PSC50-C25-75 Shank: PSC50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 75 | H max. (mm): 68 | E (mm): 57 | Weight (kg): 1.3
PSC50-C25-105 Shank: PSC50 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 105 | H max. (mm): 87 | E (mm): 57 | Weight (kg): 1.7
PSC50-C32-85 Shank: PSC50 | Ød (mm): 32 | ØD (mm): 64 | L (mm): 85 | H max. (mm): 78 | E (mm): 58 | Weight (kg): 1.6
PSC63-C16-70 Shank: PSC63 | Ød (mm): 16 | ØD (mm): 45 | L (mm): 70 | H max. (mm): 61 | E (mm): 55 | Weight (kg): 1.5
PSC63-C20-75 Shank: PSC63 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 75 | H max. (mm): 66 | E (mm): 56 | Weight (kg): 1.7
PSC63-C20-105 Shank: PSC63 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 105 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 2.3
PSC63-C20-120 Shank: PSC63 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 120 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 2.5
PSC63-C25-75 Shank: PSC63 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 75 | H max. (mm): 66 | E (mm): 57 | Weight (kg): 2
PSC63-C25-105 Shank: PSC63 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 105 | H max. (mm): 87 | E (mm): 57 | Weight (kg): 2.5
PSC63-C25-135 Shank: PSC63 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 135 | H max. (mm): 87 | E (mm): 57 | Weight (kg): 3.1
PSC63-C32-90 Shank: PSC63 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 90 | H max. (mm): 81 | E (mm): 64 | Weight (kg): 2.4
PSC63-C32-105 Shank: PSC63 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 105 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 2.7
PSC63-C32-135 Shank: PSC63 | Ød (mm): 32 | ØD (mm): 72 | L (mm): 135 | H max. (mm): 90 | E (mm): 64 | Weight (kg): 3.2
PSC80-C20-80 Shank: PSC80 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 80 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 3.3
PSC80-C20-135 Shank: PSC80 | Ød (mm): 20 | ØD (mm): 54 | L (mm): 135 | H max. (mm): 80 | E (mm): 56 | Weight (kg): 4.7
PSC80-C25-85 Shank: PSC80 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 85 | H max. (mm): 85 | E (mm): 65 | Weight (kg): 3.5
PSC80-C25-135 Shank: PSC80 | Ød (mm): 25 | ØD (mm): 62 | L (mm): 135 | H max. (mm): 90 | E (mm): 65 | Weight (kg): 4.7
PSC80-C32-95 Shank: PSC80 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 95 | H max. (mm): 95 | E (mm): 71 | Weight (kg): 4.5
PSC80-C32-135 Shank: PSC80 | Ød (mm): 32 | ØD (mm): 75 | L (mm): 135 | H max. (mm): 105 | E (mm): 71 | Weight (kg): 5.7
Milling ChucksSamchully
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully PSC Standard Titan Milling Chuck

Brand Samchully·Milling Chucks

Available part numbers (22)

PSC50-C16-65, PSC50-C20-75, PSC50-C20-105, PSC50-C25-75, PSC50-C25-105, PSC50-C32-85, PSC63-C16-70, PSC63-C20-75, PSC63-C20-105, PSC63-C20-120 + 12 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
