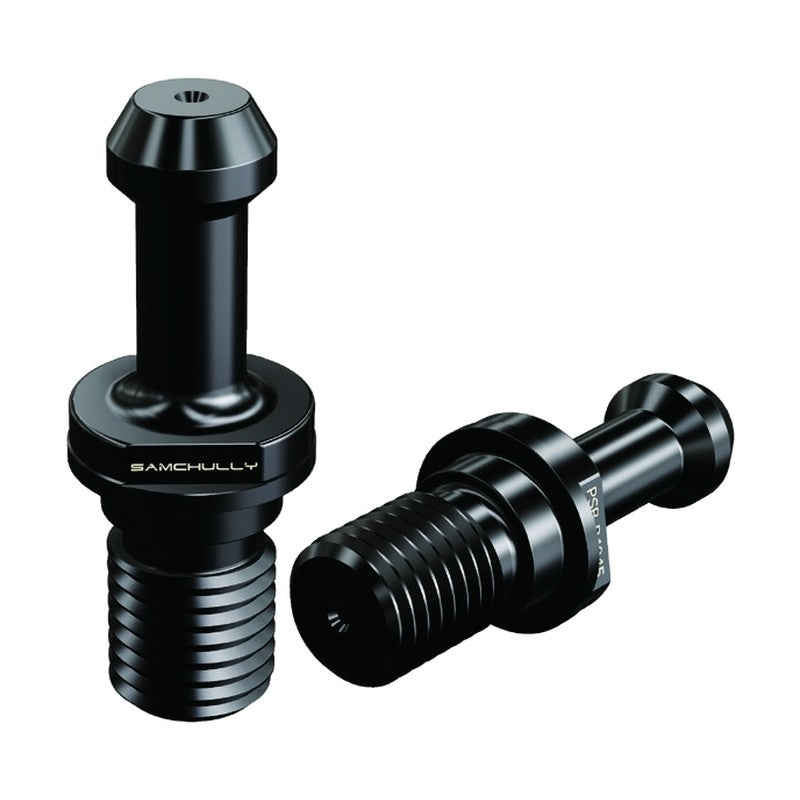

Samchully Pull Stud Bolts PSB

Samchully Pull Stud Bolts PSB

Pull stud bolts for BT (MAS/JIS), CAT and blended BT-CAT tool holders.

Key features

  • Replace deformed or damaged pull studs
  • Loctite recommended on first installation
  • Through-coolant versions (suffix C) for CAT and BT-CAT
PSB-B3045 ØD1 (mm): 11 | ØD2 (mm): 7 | ØD3 (mm): 12.5 | ØD (mm): 16.5 | L1 (mm): 23 | L (mm): 43 | Thread G: M12 | Angle (deg): 45 | Standard: MAS P30T-1 | For: BT30
PSB-B3060 ØD1 (mm): 11 | ØD2 (mm): 7 | ØD3 (mm): 12.5 | ØD (mm): 16.5 | L1 (mm): 23 | L (mm): 43 | Thread G: M12 | Angle (deg): 60 | Standard: MAS P30T-2 | For: BT30
PSB-B4045 ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 17 | ØD (mm): 23 | L1 (mm): 35 | L (mm): 60 | Thread G: M16 | Angle (deg): 45 | Standard: MAS P40T-1 | For: BT40
PSB-B4060 ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 17 | ØD (mm): 23 | L1 (mm): 35 | L (mm): 60 | Thread G: M16 | Angle (deg): 60 | Standard: MAS P40T-2 | For: BT40
PSB-B5045 ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 25 | ØD (mm): 38 | L1 (mm): 45 | L (mm): 85 | Thread G: M24 | Angle (deg): 45 | Standard: MAS P50T-1 | For: BT50
PSB-B5060 ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 25 | ØD (mm): 38 | L1 (mm): 45 | L (mm): 85 | Thread G: M24 | Angle (deg): 60 | Standard: MAS P50T-2 | For: BT50
PSB-B3075 ØD1 (mm): 12 | ØD2 (mm): 8 | ØD3 (mm): 12.5 | ØD (mm): 16.5 | L1 (mm): 23.4 | L (mm): 43 | Thread G: M12 | Angle (deg): 75 | Standard: JIS B6339-89 | For: BT30 (FACE GRINDING)
PSB-B4075 ØD1 (mm): 19 | ØD2 (mm): 14 | ØD3 (mm): 17 | ØD (mm): 23 | L1 (mm): 29 | L (mm): 54 | Thread G: M16 | Angle (deg): 75 | Standard: JIS B6339-89 | For: BT40 (FACE GRINDING)
PSB-B5075 ØD1 (mm): 28 | ØD2 (mm): 21 | ØD3 (mm): 25 | ØD (mm): 38 | L1 (mm): 34 | L (mm): 74 | Thread G: M24 | Angle (deg): 75 | Standard: JIS B6339-89 | For: BT50 (FACE GRINDING)
PSB-B4090 ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 17 | ØD (mm): 23 | L1 (mm): 35 | L (mm): 60 | Thread G: M16 | Angle (deg): 90 | For: BT40
PSB-B5090 ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 25 | ØD (mm): 38 | L1 (mm): 45 | L (mm): 85 | Thread G: M24 | Angle (deg): 90 | For: BT50
PSB-BC4045 ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 23 | L1 (mm): 57 | L2 (mm): 32.15 | L3 (mm): 25.15 | L4 (mm): 6 | S (mm): 19 | Thread G: 5/8"-11 | Angle (deg): 45 | Type: Blended BT-CAT
PSB-BC4045C ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 23 | Ød (mm): 4 | L1 (mm): 57 | L2 (mm): 32.15 | L3 (mm): 25.15 | L4 (mm): 6 | S (mm): 19 | Thread G: 5/8"-11 | Angle (deg): 45 | Type: Blended BT-CAT
PSB-BC4060 ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 23 | L1 (mm): 57 | L2 (mm): 32.15 | L3 (mm): 25.15 | L4 (mm): 6 | S (mm): 19 | Thread G: 5/8"-11 | Angle (deg): 60 | Type: Blended BT-CAT
PSB-BC4060C ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 23 | Ød (mm): 4 | L1 (mm): 57 | L2 (mm): 32.15 | L3 (mm): 25.15 | L4 (mm): 6 | S (mm): 19 | Thread G: 5/8"-11 | Angle (deg): 60 | Type: Blended BT-CAT
PSB-BC4090 ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 23 | L1 (mm): 57 | L2 (mm): 32.15 | L3 (mm): 25.15 | L4 (mm): 6 | S (mm): 19 | Thread G: 5/8"-11 | Angle (deg): 90 | Type: Blended BT-CAT
PSB-BC4090C ØD1 (mm): 15 | ØD2 (mm): 10 | ØD3 (mm): 23 | Ød (mm): 4 | L1 (mm): 57 | L2 (mm): 32.15 | L3 (mm): 25.15 | L4 (mm): 6 | S (mm): 19 | Thread G: 5/8"-11 | Angle (deg): 90 | Type: Blended BT-CAT
PSB-C4045 ØD1 (mm): 18.80 | ØD2 (mm): 12.45 | ØD3 (mm): 23.88 | L1 (mm): 38.10 | L2 (mm): 16.26 | L3 (mm): 11.18 | L4 (mm): 3.05 | L6 (mm): 1.52 | S (mm): 19.05 | Thread G: 5/8"-11 | Angle (deg): 45 | Type: CAT40
PSB-C4045C ØD1 (mm): 18.80 | ØD2 (mm): 12.45 | ØD3 (mm): 23.88 | Ød (mm): 7.14 | L1 (mm): 38.10 | L2 (mm): 16.26 | L3 (mm): 11.18 | L4 (mm): 3.05 | L6 (mm): 1.52 | S (mm): 19.05 | Thread G: 5/8"-11 | Angle (deg): 45 | Type: CAT40
PSB-BC5045 ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 38 | L1 (mm): 78.22 | L2 (mm): 45.2 | L3 (mm): 35.2 | L4 (mm): 10 | S (mm): 30 | Thread G: 1"-8 | Angle (deg): 45 | Type: Blended BT-CAT
PSB-BC5045C ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 38 | Ød (mm): 8.5 | L1 (mm): 78.22 | L2 (mm): 45.2 | L3 (mm): 35.2 | L4 (mm): 10 | S (mm): 30 | Thread G: 1"-8 | Angle (deg): 45 | Type: Blended BT-CAT
PSB-BC5060 ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 38 | L1 (mm): 78.22 | L2 (mm): 45.2 | L3 (mm): 35.2 | L4 (mm): 10 | S (mm): 30 | Thread G: 1"-8 | Angle (deg): 60 | Type: Blended BT-CAT
PSB-BC5060C ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 38 | Ød (mm): 8.5 | L1 (mm): 78.22 | L2 (mm): 45.2 | L3 (mm): 35.2 | L4 (mm): 10 | S (mm): 30 | Thread G: 1"-8 | Angle (deg): 60 | Type: Blended BT-CAT
PSB-BC5090 ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 38 | L1 (mm): 78.22 | L2 (mm): 45.2 | L3 (mm): 35.2 | L4 (mm): 10 | S (mm): 30 | Thread G: 1"-8 | Angle (deg): 90 | Type: Blended BT-CAT
PSB-BC5090C ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 38 | Ød (mm): 8.5 | L1 (mm): 78.22 | L2 (mm): 45.2 | L3 (mm): 35.2 | L4 (mm): 10 | S (mm): 30 | Thread G: 1"-8 | Angle (deg): 90 | Type: Blended BT-CAT
PSB-C5045 ØD1 (mm): 28.96 | ØD2 (mm): 20.83 | ØD3 (mm): 36.58 | L1 (mm): 58.42 | L2 (mm): 25.40 | L3 (mm): 17.78 | L4 (mm): 5.08 | L6 (mm): 2.54 | S (mm): 31.75 | Thread G: 1"-8 | Angle (deg): 45 | Type: CAT50
PSB-C5045C ØD1 (mm): 28.96 | ØD2 (mm): 20.83 | ØD3 (mm): 36.58 | Ød (mm): 11.89 | L1 (mm): 58.42 | L2 (mm): 25.40 | L3 (mm): 17.78 | L4 (mm): 5.08 | L6 (mm): 2.54 | S (mm): 31.75 | Thread G: 1"-8 | Angle (deg): 45 | Type: CAT50
