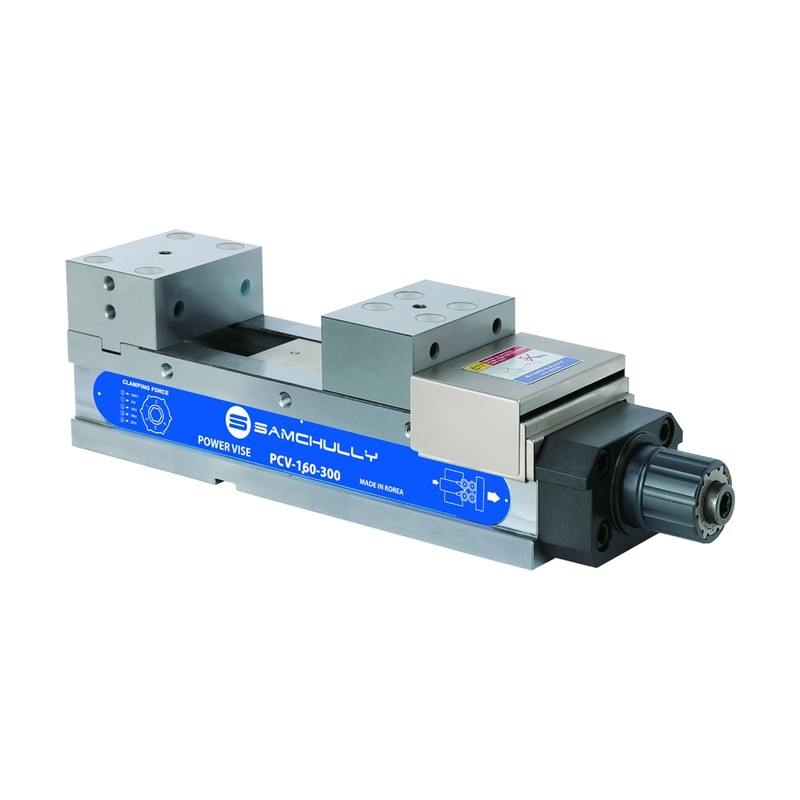

Samchully Regular Type Power Vise PCV-R

Samchully Regular Type Power Vise PCV-R

Mechanical power vise with four preset grip force levels, jaw widths 100 to 250 mm.

Key features

  • 4 preset grip force settings in addition to direct clamping
  • Avoids deformation of hollow or delicate parts
  • Consistent chucking force between operators
PCV-100R-150 Size: 4" | Jaw width (mm): 100 | Max. opening (mm): 150 | Grip force L1 [kN(kgf)]: 5(510) | Grip force L2 [kN(kgf)]: 10(1020) | Grip force L3 [kN(kgf)]: 16(1632) | Grip force L4 [kN(kgf)]: 25(2549) | Weight (kg): 25 | Total length L (mm): 400.5 | Total height B (mm): 115
PCV-125R-230 Size: 5" | Jaw width (mm): 125 | Max. opening (mm): 230 | Grip force L1 [kN(kgf)]: 10(1020) | Grip force L2 [kN(kgf)]: 20(2039) | Grip force L3 [kN(kgf)]: 27(2753) | Grip force L4 [kN(kgf)]: 35(3569) | Weight (kg): 43 | Total length L (mm): 505.5 | Total height B (mm): 135 | Old model: PCV-125
PCV-160R-300 Size: 6" | Jaw width (mm): 160 | Max. opening (mm): 300 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 65 | Total length L (mm): 595.5 | Total height B (mm): 160 | Old model: PCV-160
PCV-200R-320 Size: 8" | Jaw width (mm): 200 | Max. opening (mm): 320 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 100 | Total length L (mm): 638.5 | Total height B (mm): 180 | Old model: PCV-200
PCV-250R-450 Size: 10" | Jaw width (mm): 250 | Max. opening (mm): 450 | Grip force L1 [kN(kgf)]: 15(1530) | Grip force L2 [kN(kgf)]: 40(4079) | Grip force L3 [kN(kgf)]: 60(6118) | Grip force L4 [kN(kgf)]: 80(8158) | Weight (kg): 200 | Total length L (mm): 810.5 | Total height B (mm): 195 | Old model: PCV-250
Machine VisesSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Regular Type Power Vise PCV-R

Brand Samchully·Machine Vises

Available part numbers (5)

PCV-100R-150, PCV-125R-230, PCV-160R-300, PCV-200R-320, PCV-250R-450

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCV-100R-150Size: 4" | Jaw width (mm): 100 | Max. opening (mm): 150 | Grip force L1 [kN(kgf)]: 5(510) | Grip force L2 [kN(kgf)]: 10(1020) | Grip force L3 [kN(kgf)]: 16(1632) | Grip force L4 [kN(kgf)]: 25(2549) | Weight (kg): 25 | Total length L (mm): 400.5 | Total height B (mm): 115
PCV-125R-230Size: 5" | Jaw width (mm): 125 | Max. opening (mm): 230 | Grip force L1 [kN(kgf)]: 10(1020) | Grip force L2 [kN(kgf)]: 20(2039) | Grip force L3 [kN(kgf)]: 27(2753) | Grip force L4 [kN(kgf)]: 35(3569) | Weight (kg): 43 | Total length L (mm): 505.5 | Total height B (mm): 135 | Old model: PCV-125
PCV-160R-300Size: 6" | Jaw width (mm): 160 | Max. opening (mm): 300 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 65 | Total length L (mm): 595.5 | Total height B (mm): 160 | Old model: PCV-160
PCV-200R-320Size: 8" | Jaw width (mm): 200 | Max. opening (mm): 320 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 100 | Total length L (mm): 638.5 | Total height B (mm): 180 | Old model: PCV-200
PCV-250R-450Size: 10" | Jaw width (mm): 250 | Max. opening (mm): 450 | Grip force L1 [kN(kgf)]: 15(1530) | Grip force L2 [kN(kgf)]: 40(4079) | Grip force L3 [kN(kgf)]: 60(6118) | Grip force L4 [kN(kgf)]: 80(8158) | Weight (kg): 200 | Total length L (mm): 810.5 | Total height B (mm): 195 | Old model: PCV-250
