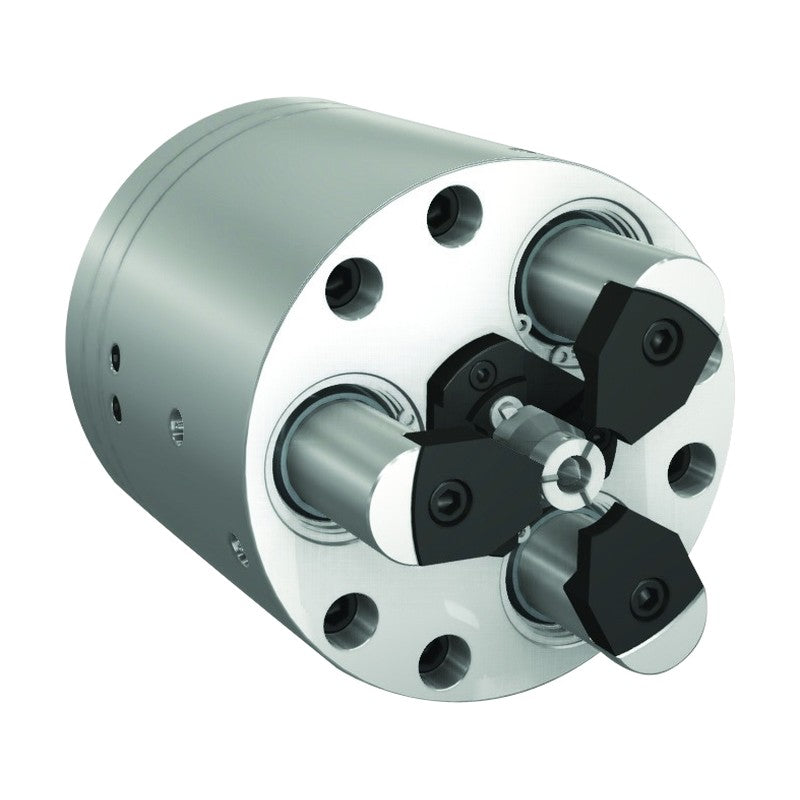

Samchully Retractable-Jaw Shaft Chuck RS

Samchully Retractable-Jaw Shaft Chuck RS

Shaft chuck with retractable jaws and face driver for complete machining of shafts in one set-up.

Key features

  • Runs two operations on one chuck
  • Jaws and face drivers easily interchangeable for various shaft diameters
RS-200 Max. Clamping Force (kgf): 6,633 | Max. Drawbar Pull (kgf): 3,878 | Plunger Stroke (mm): 56 | Gripping (mm): 18~80 | Face Driver (mm): 12~70 | Max. Speed (rpm): 4,000 | Weight (kg): 48
RS-250 Max. Clamping Force (kgf): 10,200 | Max. Drawbar Pull (kgf): 7,650 | Plunger Stroke (mm): 74 | Gripping (mm): 25~110 | Face Driver (mm): 12~100 | Max. Speed (rpm): 3,500 | Weight (kg): 60
RS-300 Max. Clamping Force (kgf): 12,200 | Max. Drawbar Pull (kgf): 8,150 | Plunger Stroke (mm): 74 | Gripping (mm): 40~150 | Face Driver (mm): 30~130 | Max. Speed (rpm): 2,500 | Weight (kg): 110
RS-400 Max. Clamping Force (kgf): 13,000 | Max. Drawbar Pull (kgf): 8,660 | Plunger Stroke (mm): 80 | Gripping (mm): 90~210 | Face Driver (mm): 80~150 | Max. Speed (rpm): 1,500 | Weight (kg): 235
Special ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Retractable-Jaw Shaft Chuck RS

Brand Samchully·Special Chucks

Available part numbers (4)

RS-200, RS-250, RS-300, RS-400

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS-200Max. Clamping Force (kgf): 6,633 | Max. Drawbar Pull (kgf): 3,878 | Plunger Stroke (mm): 56 | Gripping (mm): 18~80 | Face Driver (mm): 12~70 | Max. Speed (rpm): 4,000 | Weight (kg): 48
RS-250Max. Clamping Force (kgf): 10,200 | Max. Drawbar Pull (kgf): 7,650 | Plunger Stroke (mm): 74 | Gripping (mm): 25~110 | Face Driver (mm): 12~100 | Max. Speed (rpm): 3,500 | Weight (kg): 60
RS-300Max. Clamping Force (kgf): 12,200 | Max. Drawbar Pull (kgf): 8,150 | Plunger Stroke (mm): 74 | Gripping (mm): 40~150 | Face Driver (mm): 30~130 | Max. Speed (rpm): 2,500 | Weight (kg): 110
RS-400Max. Clamping Force (kgf): 13,000 | Max. Drawbar Pull (kgf): 8,660 | Plunger Stroke (mm): 80 | Gripping (mm): 90~210 | Face Driver (mm): 80~150 | Max. Speed (rpm): 1,500 | Weight (kg): 235
