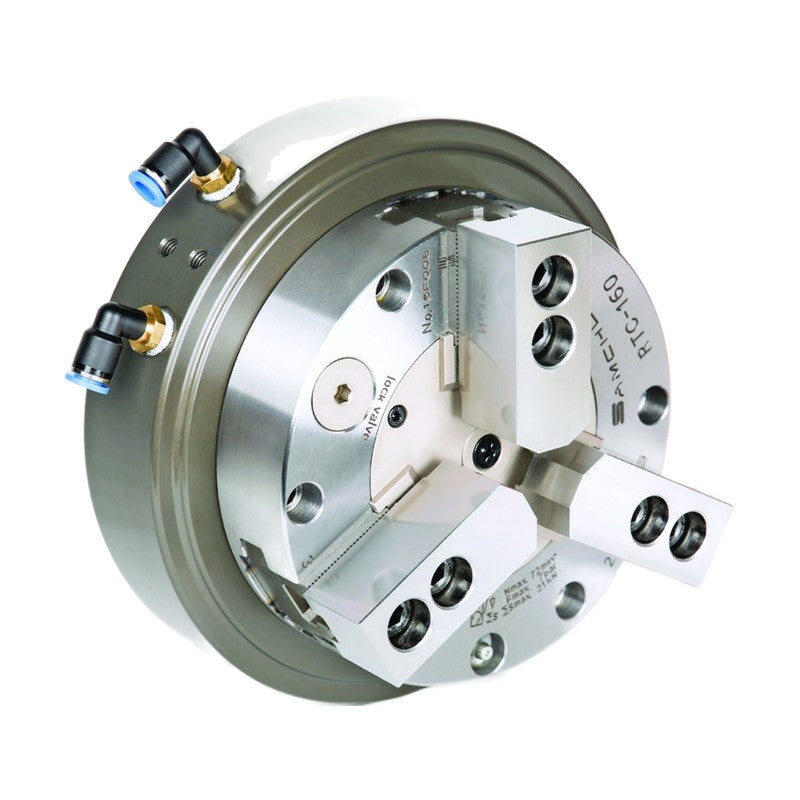

Samchully Rotary Table Chuck RTC

Samchully Rotary Table Chuck RTC

Pneumatic chucks with built-in cylinder for mounting on NC rotary tables, compatible with hydraulic chuck jaws (through hole Ø8~Ø43, clamping Ø10~Ø250).

Key features

  • Built-in air cylinder
  • Built-in lock valve for safety
  • Compatible with hydraulic chuck jaws
  • Ideal for split machining on rotary tables
RTC-110 Thru Hole Dia. (mm): 8 | Jaw Stroke Dia. (mm): 5.2 | Plunger Stroke (mm): 11.3 | Max. Static Gripping Force (kN): 7.5 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 100 | Weight incl. Soft Jaws (kg): 7.3 | Outer Dia. (mm): 145
RTC-160 Thru Hole Dia. (mm): 20 | Jaw Stroke Dia. (mm): 5.2 | Plunger Stroke (mm): 11.5 | Max. Static Gripping Force (kN): 21 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 72 | Weight incl. Soft Jaws (kg): 22 | Outer Dia. (mm): 210
RTC-210 Thru Hole Dia. (mm): 30 | Jaw Stroke Dia. (mm): 6.3 | Plunger Stroke (mm): 13.7 | Max. Static Gripping Force (kN): 33 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 50 | Weight incl. Soft Jaws (kg): 27.7 | Outer Dia. (mm): 260
RTC-260 Thru Hole Dia. (mm): 43 | Jaw Stroke Dia. (mm): 6.3 | Plunger Stroke (mm): 13.6 | Max. Static Gripping Force (kN): 48 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 50 | Weight incl. Soft Jaws (kg): 42.5 | Outer Dia. (mm): 304
Pneumatic ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Rotary Table Chuck RTC

Brand Samchully·Pneumatic Chucks

Available part numbers (4)

RTC-110, RTC-160, RTC-210, RTC-260

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RTC-110Thru Hole Dia. (mm): 8 | Jaw Stroke Dia. (mm): 5.2 | Plunger Stroke (mm): 11.3 | Max. Static Gripping Force (kN): 7.5 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 100 | Weight incl. Soft Jaws (kg): 7.3 | Outer Dia. (mm): 145
RTC-160Thru Hole Dia. (mm): 20 | Jaw Stroke Dia. (mm): 5.2 | Plunger Stroke (mm): 11.5 | Max. Static Gripping Force (kN): 21 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 72 | Weight incl. Soft Jaws (kg): 22 | Outer Dia. (mm): 210
RTC-210Thru Hole Dia. (mm): 30 | Jaw Stroke Dia. (mm): 6.3 | Plunger Stroke (mm): 13.7 | Max. Static Gripping Force (kN): 33 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 50 | Weight incl. Soft Jaws (kg): 27.7 | Outer Dia. (mm): 260
RTC-260Thru Hole Dia. (mm): 43 | Jaw Stroke Dia. (mm): 6.3 | Plunger Stroke (mm): 13.6 | Max. Static Gripping Force (kN): 48 | Max. Pneumatic Pressure (MPa): 0.7 | Max. Speed (min-1): 50 | Weight incl. Soft Jaws (kg): 42.5 | Outer Dia. (mm): 304
