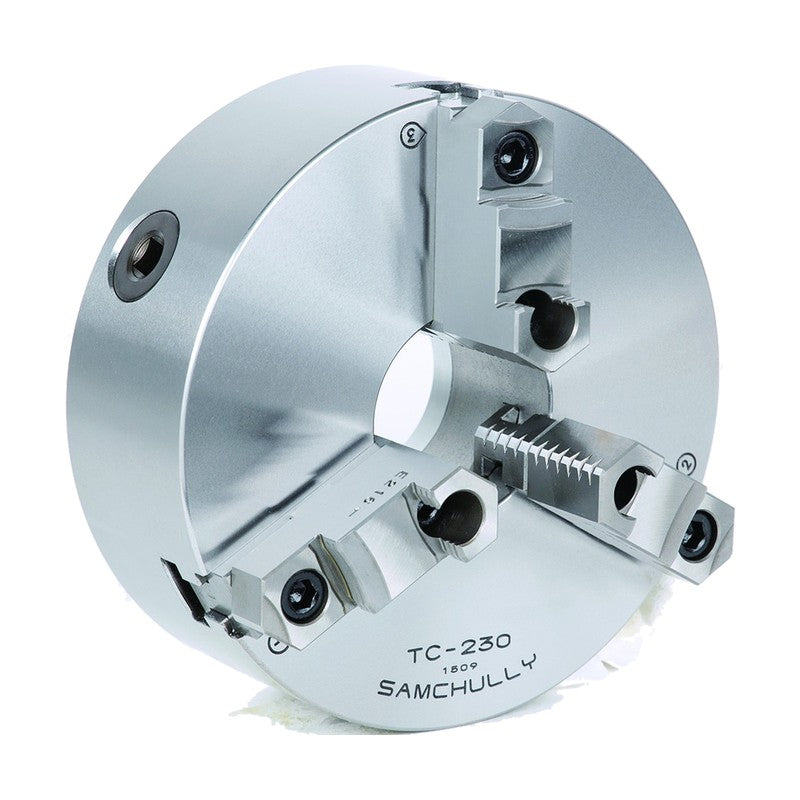

Samchully Scroll Chuck TC (Soft and Hard Top Jaws)

Samchully Scroll Chuck TC (Soft and Hard Top Jaws)

Scroll chuck with two-piece base jaw and top jaw configuration, supplied with hard and soft jaws.

Key features

  • Reversible hard jaws
TC-165 Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 3~160 | Clamping Range Internal (mm dia.): 55~150 | Handle Torque (N·m (kgf·m)): 88(9.0) | Max. Speed (rpm): 4000 | Weight (kg): 9
TC-190 Size (in): 7 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 4~180 | Clamping Range Internal (mm dia.): 56~170 | Handle Torque (N·m (kgf·m)): 107.9(11.0) | Max. Speed (rpm): 3500 | Weight (kg): 12.2
TC-230 Size (in): 9 | Max. Static Gripping Force (kN (kgf)): 37(3773) | Clamping Range External (mm dia.): 5~220 | Clamping Range Internal (mm dia.): 62~210 | Handle Torque (N·m (kgf·m)): 147(15.0) | Max. Speed (rpm): 2900 | Weight (kg): 21.2
TC-273 Size (in): 10 | Max. Static Gripping Force (kN (kgf)): 46(4691) | Clamping Range External (mm dia.): 5~260 | Clamping Range Internal (mm dia.): 70~250 | Handle Torque (N·m (kgf·m)): 173.5(18.0) | Max. Speed (rpm): 2500 | Weight (kg): 28
TC-310 Size (in): 12 | Max. Static Gripping Force (kN (kgf)): 55(5608) | Clamping Range External (mm dia.): 10~300 | Clamping Range Internal (mm dia.): 86~290 | Handle Torque (N·m (kgf·m)): 206(21.0) | Max. Speed (rpm): 2200 | Weight (kg): 41
Scroll ChucksSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Scroll Chuck TC (Soft and Hard Top Jaws)

Brand Samchully·Scroll Chucks

Available part numbers (5)

TC-165, TC-190, TC-230, TC-273, TC-310

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TC-165Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 3~160 | Clamping Range Internal (mm dia.): 55~150 | Handle Torque (N·m (kgf·m)): 88(9.0) | Max. Speed (rpm): 4000 | Weight (kg): 9
TC-190Size (in): 7 | Max. Static Gripping Force (kN (kgf)): 31(3161) | Clamping Range External (mm dia.): 4~180 | Clamping Range Internal (mm dia.): 56~170 | Handle Torque (N·m (kgf·m)): 107.9(11.0) | Max. Speed (rpm): 3500 | Weight (kg): 12.2
TC-230Size (in): 9 | Max. Static Gripping Force (kN (kgf)): 37(3773) | Clamping Range External (mm dia.): 5~220 | Clamping Range Internal (mm dia.): 62~210 | Handle Torque (N·m (kgf·m)): 147(15.0) | Max. Speed (rpm): 2900 | Weight (kg): 21.2
TC-273Size (in): 10 | Max. Static Gripping Force (kN (kgf)): 46(4691) | Clamping Range External (mm dia.): 5~260 | Clamping Range Internal (mm dia.): 70~250 | Handle Torque (N·m (kgf·m)): 173.5(18.0) | Max. Speed (rpm): 2500 | Weight (kg): 28
TC-310Size (in): 12 | Max. Static Gripping Force (kN (kgf)): 55(5608) | Clamping Range External (mm dia.): 10~300 | Clamping Range Internal (mm dia.): 86~290 | Handle Torque (N·m (kgf·m)): 206(21.0) | Max. Speed (rpm): 2200 | Weight (kg): 41
