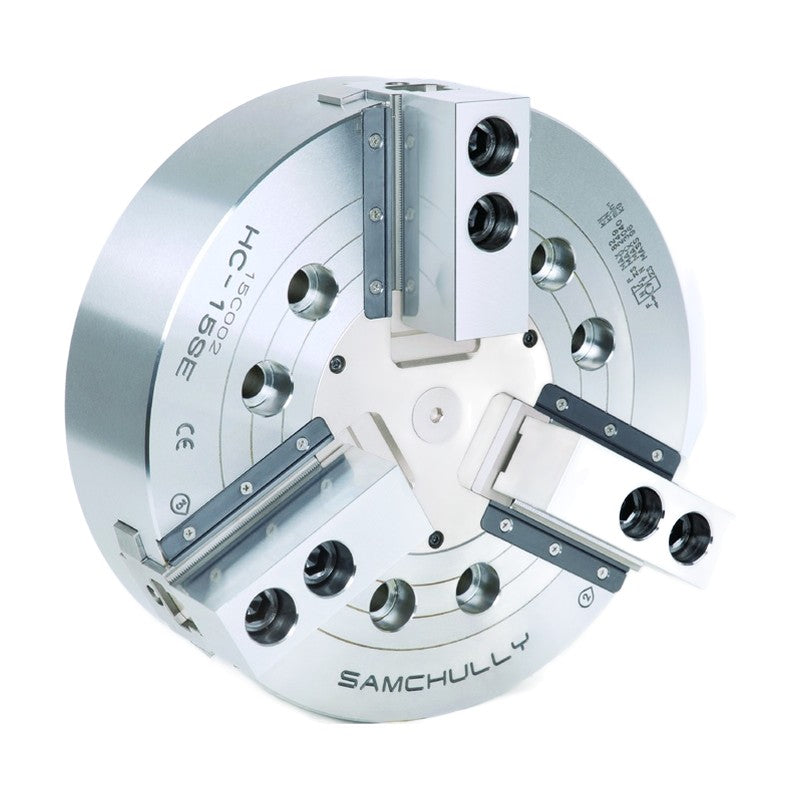

Samchully Sealed 3-Jaw Closed-Center Power Chuck HC-SE

Samchully Sealed 3-Jaw Closed-Center Power Chuck HC-SE

Wedge-style power chuck sealed against coolant and chips.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity

Specifications

Jaw Stroke Dia. (mm) 16
Plunger Stroke (mm) 35
Max. Permissible Input Force (kN (kgf)) 82(8362)
Max. Hydraulic Pressure (MPa (kgf/cm²)) 3.2(32.6)
Operating Cylinder (Hydraulic) Y-2035R(RE)
HC-15SE Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 71 | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 3040 | Weight (kg): 96 | Operating Hard Jaw: HB15N1
HC-18SE Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 133 | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 2710 | Weight (kg): 124 | Operating Hard Jaw: HB15N1
HC-21SE Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 62 | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1940 | Weight (kg): 180 | Operating Hard Jaw: HB21B2
HC-24SE Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 152 | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1760 | Weight (kg): 223 | Operating Hard Jaw: HB21B2
Power ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Sealed 3-Jaw Closed-Center Power Chuck HC-SE

Brand Samchully·Power Chucks

Available part numbers (4)

HC-15SE, HC-18SE, HC-21SE, HC-24SE

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC-15SEGrip Dia. Max (mm): 381 | Grip Dia. Min (mm): 71 | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 3040 | Weight (kg): 96 | Operating Hard Jaw: HB15N1
HC-18SEGrip Dia. Max (mm): 450 | Grip Dia. Min (mm): 133 | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 2710 | Weight (kg): 124 | Operating Hard Jaw: HB15N1
HC-21SEGrip Dia. Max (mm): 530 | Grip Dia. Min (mm): 62 | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1940 | Weight (kg): 180 | Operating Hard Jaw: HB21B2
HC-24SEGrip Dia. Max (mm): 610 | Grip Dia. Min (mm): 152 | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1760 | Weight (kg): 223 | Operating Hard Jaw: HB21B2
