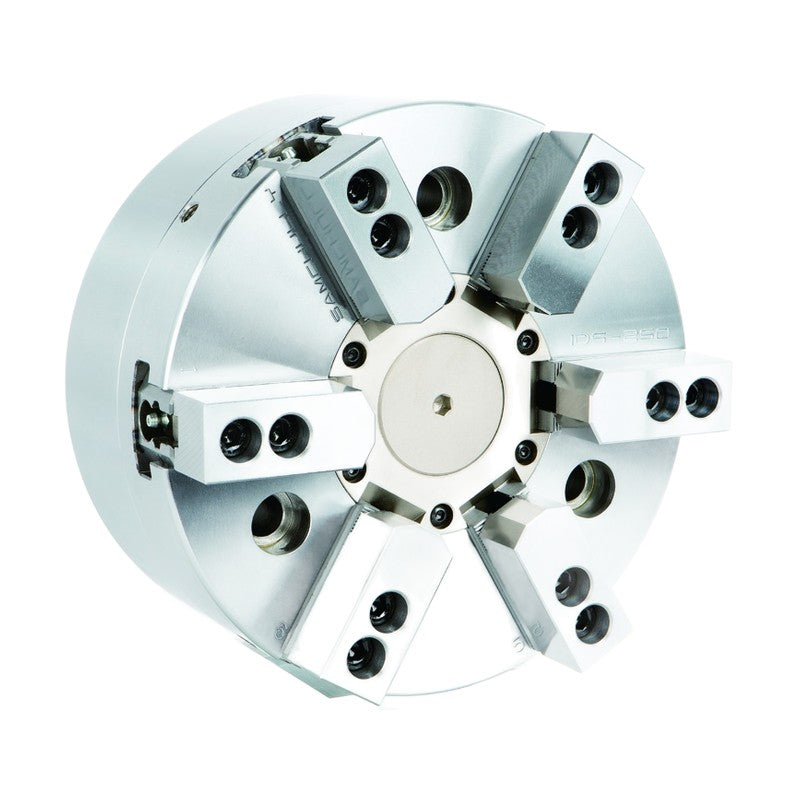

Samchully Self-Centering 2+2+2 Jaw Compensating Power Chuck IDS

Samchully Self-Centering 2+2+2 Jaw Compensating Power Chuck IDS

High-accuracy self-centering 2+2+2 jaw power chuck for thin, easily deformed workpieces.

Key features

  • Ideal for thin, easily deformable workpieces
IDS-250 Jaw Stroke Radial. (mm): 6 | Compensation (mm): ±2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 38(3875) | Max. Gripping Force (kN (kgf)): 64(6526) | Max. Speed (rpm): 3000 | Operating Cylinder: Y-1530RE | Weight (kg): 39
IDS-315 Jaw Stroke Radial. (mm): 6 | Compensation (mm): ±2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 40(4079) | Max. Gripping Force (kN (kgf)): 80(8158) | Max. Speed (rpm): 2500 | Operating Cylinder: Y-1530RE | Weight (kg): 65
IDS-630 Jaw Stroke Radial. (mm): 7.5 | Compensation (mm): ±4 | Plunger Stroke (mm): 30 | Max. Permissible Input Force (kN (kgf)): 120(12237) | Max. Gripping Force (kN (kgf)): 180(18354) | Max. Speed (rpm): 800 | Operating Cylinder: Y-2560RE | Weight (kg): 425
Power ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Self-Centering 2+2+2 Jaw Compensating Power Chuck IDS

Brand Samchully·Power Chucks

Available part numbers (3)

IDS-250, IDS-315, IDS-630

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDS-250Jaw Stroke Radial. (mm): 6 | Compensation (mm): ±2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 38(3875) | Max. Gripping Force (kN (kgf)): 64(6526) | Max. Speed (rpm): 3000 | Operating Cylinder: Y-1530RE | Weight (kg): 39
IDS-315Jaw Stroke Radial. (mm): 6 | Compensation (mm): ±2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 40(4079) | Max. Gripping Force (kN (kgf)): 80(8158) | Max. Speed (rpm): 2500 | Operating Cylinder: Y-1530RE | Weight (kg): 65
IDS-630Jaw Stroke Radial. (mm): 7.5 | Compensation (mm): ±4 | Plunger Stroke (mm): 30 | Max. Permissible Input Force (kN (kgf)): 120(12237) | Max. Gripping Force (kN (kgf)): 180(18354) | Max. Speed (rpm): 800 | Operating Cylinder: Y-2560RE | Weight (kg): 425
