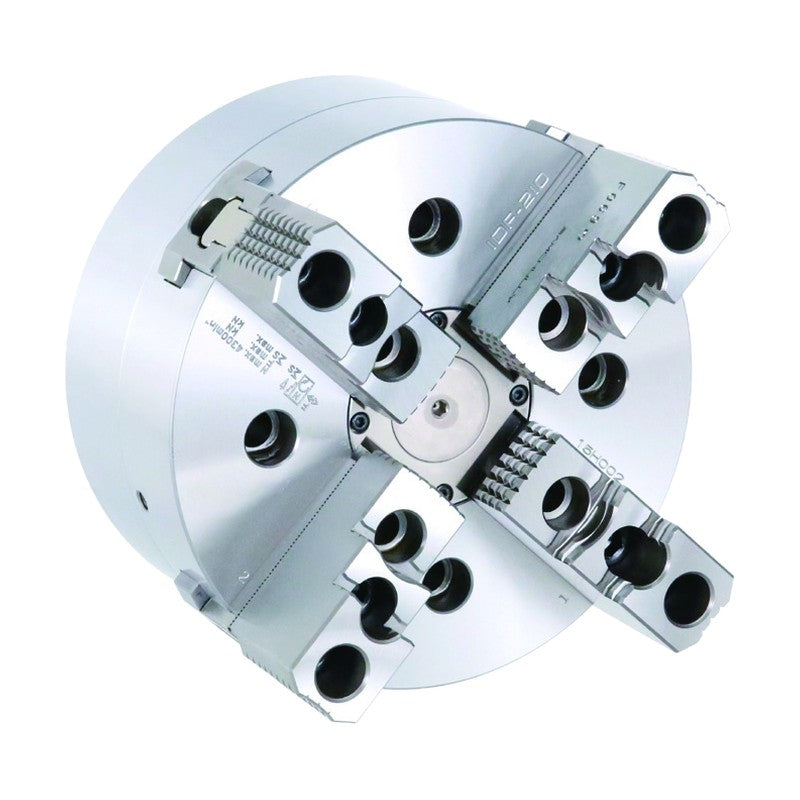

Samchully Self-Centering 2+2 Jaw Compensating Power Chuck IDF

Samchully Self-Centering 2+2 Jaw Compensating Power Chuck IDF

High-precision self-centering 4-jaw (2+2) power chuck for rectangular and square workpieces.

Key features

  • Self-centering in two axes for rectangular and square workpieces
  • Single wedge actuation, no dual-piston cylinder required
  • Two pairs of independent self-centering jaws
IDF-210 Jaw Stroke Radial. (mm): 5.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 10 | Max. Permissible Input Force (kN (kgf)): 40(4081) | Max. Static Gripping Force (kN (kgf)): 100(10204) | Max. Speed (rpm): 4000 | Operating Cylinder: Y-1225RE | Weight (kg): 24
IDF-260 Jaw Stroke Radial. (mm): 6.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 50(5102) | Max. Static Gripping Force (kN (kgf)): 130(13265) | Max. Speed (rpm): 3200 | Operating Cylinder: Y-1530RE | Weight (kg): 43
IDF-310 Jaw Stroke Radial. (mm): 6.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 70(7143) | Max. Static Gripping Force (kN (kgf)): 180(18367) | Max. Speed (rpm): 3000 | Operating Cylinder: Y-1530RE | Weight (kg): 68
IDF-380 Jaw Stroke Radial. (mm): 6.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 80(8163) | Max. Static Gripping Force (kN (kgf)): 200(20394) | Max. Speed (rpm): 2100 | Operating Cylinder: Y-2035RE | Weight (kg): 110
IDF-450 Jaw Stroke Radial. (mm): 6 | Compensation (mm): ±2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 80(8158) | Max. Static Gripping Force (kN (kgf)): 200(20394) | Max. Speed (rpm): 1700 | Operating Cylinder: Y-2035R | Weight (kg): 180
IDF-530 Jaw Stroke Radial. (mm): 8 | Compensation (mm): ±2 | Plunger Stroke (mm): 18 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22434) | Max. Speed (rpm): 1400 | Operating Cylinder: Y-2035R | Weight (kg): 290
IDF-630 Jaw Stroke Radial. (mm): 9.7 | Compensation (mm): ±4 | Plunger Stroke (mm): 20 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22434) | Max. Speed (rpm): 1100 | Operating Cylinder: Y-2035R | Weight (kg): 400
IDF-800 Jaw Stroke Radial. (mm): 9.7 | Compensation (mm): ±4 | Plunger Stroke (mm): 20 | Max. Permissible Input Force (kN (kgf)): 120(12237) | Max. Static Gripping Force (kN (kgf)): 160(16315) | Max. Speed (rpm): 800 | Operating Cylinder: Y-2560RE | Weight (kg): 425
Power ChucksSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Self-Centering 2+2 Jaw Compensating Power Chuck IDF

Brand Samchully·Power Chucks

Available part numbers (8)

IDF-210, IDF-260, IDF-310, IDF-380, IDF-450, IDF-530, IDF-630, IDF-800

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDF-210Jaw Stroke Radial. (mm): 5.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 10 | Max. Permissible Input Force (kN (kgf)): 40(4081) | Max. Static Gripping Force (kN (kgf)): 100(10204) | Max. Speed (rpm): 4000 | Operating Cylinder: Y-1225RE | Weight (kg): 24
IDF-260Jaw Stroke Radial. (mm): 6.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 50(5102) | Max. Static Gripping Force (kN (kgf)): 130(13265) | Max. Speed (rpm): 3200 | Operating Cylinder: Y-1530RE | Weight (kg): 43
IDF-310Jaw Stroke Radial. (mm): 6.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 70(7143) | Max. Static Gripping Force (kN (kgf)): 180(18367) | Max. Speed (rpm): 3000 | Operating Cylinder: Y-1530RE | Weight (kg): 68
IDF-380Jaw Stroke Radial. (mm): 6.2 | Compensation (mm): ± 2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 80(8163) | Max. Static Gripping Force (kN (kgf)): 200(20394) | Max. Speed (rpm): 2100 | Operating Cylinder: Y-2035RE | Weight (kg): 110
IDF-450Jaw Stroke Radial. (mm): 6 | Compensation (mm): ±2 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 80(8158) | Max. Static Gripping Force (kN (kgf)): 200(20394) | Max. Speed (rpm): 1700 | Operating Cylinder: Y-2035R | Weight (kg): 180
IDF-530Jaw Stroke Radial. (mm): 8 | Compensation (mm): ±2 | Plunger Stroke (mm): 18 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22434) | Max. Speed (rpm): 1400 | Operating Cylinder: Y-2035R | Weight (kg): 290
IDF-630Jaw Stroke Radial. (mm): 9.7 | Compensation (mm): ±4 | Plunger Stroke (mm): 20 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 220(22434) | Max. Speed (rpm): 1100 | Operating Cylinder: Y-2035R | Weight (kg): 400
IDF-800Jaw Stroke Radial. (mm): 9.7 | Compensation (mm): ±4 | Plunger Stroke (mm): 20 | Max. Permissible Input Force (kN (kgf)): 120(12237) | Max. Static Gripping Force (kN (kgf)): 160(16315) | Max. Speed (rpm): 800 | Operating Cylinder: Y-2560RE | Weight (kg): 425
