• Samchully Short Type Power Vise PCV-S
1 1

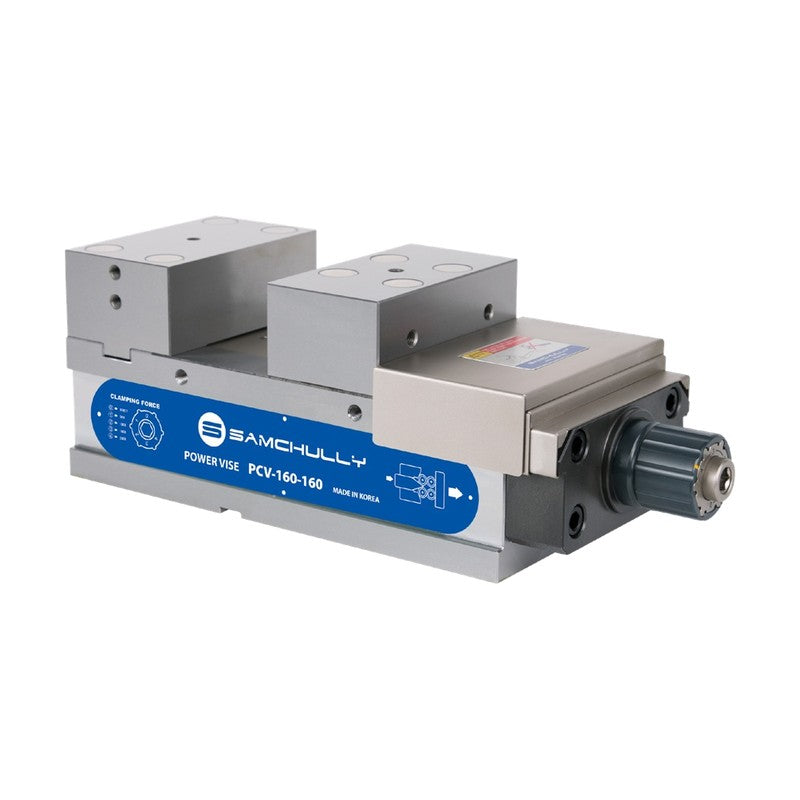

Samchully Short Type Power Vise PCV-S

Samchully Short Type Power Vise PCV-S

Compact short-stroke power vise with four preset grip force levels for drill/tap centers, pallets and tombstones.

Key features

  • 4 preset grip force settings in addition to direct clamping
  • Avoids deformation of hollow or delicate parts
  • Consistent chucking force between operators
PCV-125S-125 Size: 5" | Jaw width (mm): 125 | Max. opening (mm): 125 | Grip force L1 [kN(kgf)]: 10(1020) | Grip force L2 [kN(kgf)]: 20(2039) | Grip force L3 [kN(kgf)]: 27(2753) | Grip force L4 [kN(kgf)]: 35(3569) | Weight (kg): 41 | Total length L (mm): 400.5 | Total height B (mm): 135 | Old model: PSV-125
PCV-160S-160 Size: 6" | Jaw width (mm): 160 | Max. opening (mm): 160 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 62 | Total length L (mm): 455.5 | Total height B (mm): 160 | Old model: PSV-160
Machine VisesSamchully
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Short Type Power Vise PCV-S

Brand Samchully·Machine Vises

Available part numbers (2)

PCV-125S-125, PCV-160S-160

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCV-125S-125Size: 5" | Jaw width (mm): 125 | Max. opening (mm): 125 | Grip force L1 [kN(kgf)]: 10(1020) | Grip force L2 [kN(kgf)]: 20(2039) | Grip force L3 [kN(kgf)]: 27(2753) | Grip force L4 [kN(kgf)]: 35(3569) | Weight (kg): 41 | Total length L (mm): 400.5 | Total height B (mm): 135 | Old model: PSV-125
PCV-160S-160Size: 6" | Jaw width (mm): 160 | Max. opening (mm): 160 | Grip force L1 [kN(kgf)]: 20(2039) | Grip force L2 [kN(kgf)]: 32(3263) | Grip force L3 [kN(kgf)]: 45(4589) | Grip force L4 [kN(kgf)]: 60(6118) | Weight (kg): 62 | Total length L (mm): 455.5 | Total height B (mm): 160 | Old model: PSV-160
