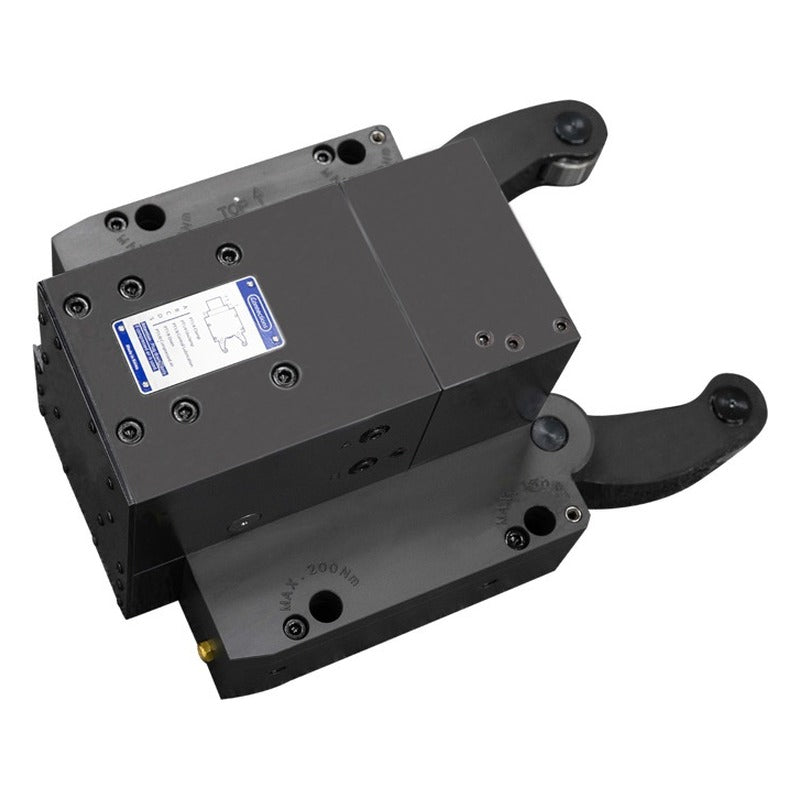

Samchully Side-Mounted Cylinder Steady Rest STAB

Samchully Side-Mounted Cylinder Steady Rest STAB

Compact steady rest with side-mounted cylinder for machines with minimal clearance.

Key features

  • Large centering range relative to size
  • For fixed or travelling applications

Specifications

Operation Pressure Min. (bar) 8
STAB-3 Piston Area: 50 | Max. Clamping Force / Roller: 1,000 | Operation Pressure Max. (bar): 60 | Centering Range Max. (mm): 152 | Centering Range Min. (mm): 12 | Max. Roller Surface Speed: 725 | Centering Accuracy: 0.04 | Repeatability Accuracy: 0.007 | Weight: 45
STAB-3.1 Piston Area: 50 | Max. Clamping Force / Roller: 1,000 | Operation Pressure Max. (bar): 60 | Centering Range Max. (mm): 165 | Centering Range Min. (mm): 20 | Max. Roller Surface Speed: 725 | Centering Accuracy: 0.04 | Repeatability Accuracy: 0.007 | Weight: 46
STAB-3.2 Piston Area: 50 | Max. Clamping Force / Roller: 1,000 | Operation Pressure Max. (bar): 60 | Centering Range Max. (mm): 200 | Centering Range Min. (mm): 50 | Max. Roller Surface Speed: 725 | Centering Accuracy: 0.04 | Repeatability Accuracy: 0.007 | Weight: 48
STAB-4 Piston Area: 78 | Max. Clamping Force / Roller: 1,500 | Operation Pressure Max. (bar): 60 | Centering Range Max. (mm): 245 | Centering Range Min. (mm): 35 | Max. Roller Surface Speed: 715 | Centering Accuracy: 0.05 | Repeatability Accuracy: 0.007 | Weight: 106
STAB-5 Piston Area: 78 | Max. Clamping Force / Roller: 2,000 | Operation Pressure Max. (bar): 80 | Centering Range Max. (mm): 310 | Centering Range Min. (mm): 45 | Max. Roller Surface Speed: 600 | Centering Accuracy: 0.06 | Repeatability Accuracy: 0.01 | Weight: 175
STAB-5.1 Piston Area: 78 | Max. Clamping Force / Roller: 2,000 | Operation Pressure Max. (bar): 80 | Centering Range Max. (mm): 350 | Centering Range Min. (mm): 85 | Max. Roller Surface Speed: 600 | Centering Accuracy: 0.06 | Repeatability Accuracy: 0.01 | Weight: 178
STAB-6 Piston Area: 132 | Max. Clamping Force / Roller: 3,000 | Operation Pressure Max. (bar): 70 | Centering Range Max. (mm): 460 | Centering Range Min. (mm): 125 | Max. Roller Surface Speed: 560 | Centering Accuracy: 0.06 | Repeatability Accuracy: 0.01 | Weight: 483
Steady RestsSamchully
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Side-Mounted Cylinder Steady Rest STAB

Brand Samchully·Steady Rests

Available part numbers (7)

STAB-3, STAB-3.1, STAB-3.2, STAB-4, STAB-5, STAB-5.1, STAB-6

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
