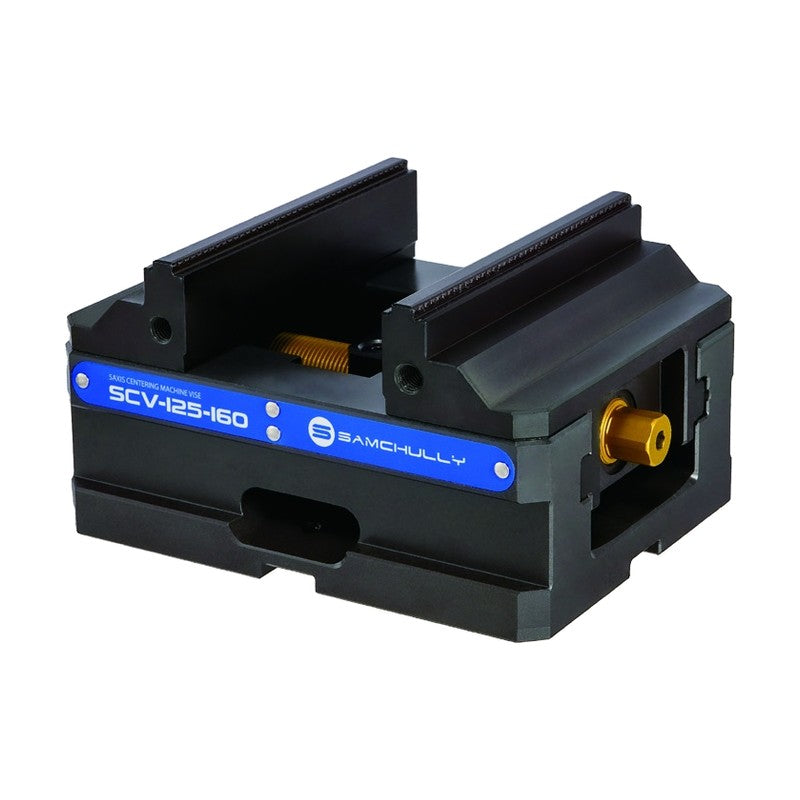

Samchully Stamping Vise SCV

Samchully Stamping Vise SCV

Compact stamping vise for 5-axis machining that maintains high gripping force through a stamping structure.

Key features

  • Compact design for 5-axis machining
  • High gripping force with stamping structure
SCV-125-160 Jaw width (mm): 125 | Jaw height (mm): 32 | Max. opening (mm): L1: 6~75 / L2: 72~155 | Total height (mm): 89 | Slider height (mm): 57 | Total width (mm): 125 | Total length (mm): 160 | Max. gripping force (kN): 20 | Weight (kg): 8
SCV-125-210 Jaw width (mm): 125 | Jaw height (mm): 32 | Max. opening (mm): L1: 6~122 / L2: 72~205 | Total height (mm): 89 | Slider height (mm): 57 | Total width (mm): 125 | Total length (mm): 210 | Max. gripping force (kN): 20 | Weight (kg): 10
SCV-125-260 Jaw width (mm): 125 | Jaw height (mm): 32 | Max. opening (mm): L1: 6~175 / L2: 72~255 | Total height (mm): 89 | Slider height (mm): 57 | Total width (mm): 125 | Total length (mm): 260 | Max. gripping force (kN): 20 | Weight (kg): 12
Machine VisesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Stamping Vise SCV

Brand Samchully·Machine Vises

Available part numbers (3)

SCV-125-160, SCV-125-210, SCV-125-260

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCV-125-160Jaw width (mm): 125 | Jaw height (mm): 32 | Max. opening (mm): L1: 6~75 / L2: 72~155 | Total height (mm): 89 | Slider height (mm): 57 | Total width (mm): 125 | Total length (mm): 160 | Max. gripping force (kN): 20 | Weight (kg): 8
SCV-125-210Jaw width (mm): 125 | Jaw height (mm): 32 | Max. opening (mm): L1: 6~122 / L2: 72~205 | Total height (mm): 89 | Slider height (mm): 57 | Total width (mm): 125 | Total length (mm): 210 | Max. gripping force (kN): 20 | Weight (kg): 10
SCV-125-260Jaw width (mm): 125 | Jaw height (mm): 32 | Max. opening (mm): L1: 6~175 / L2: 72~255 | Total height (mm): 89 | Slider height (mm): 57 | Total width (mm): 125 | Total length (mm): 260 | Max. gripping force (kN): 20 | Weight (kg): 12
