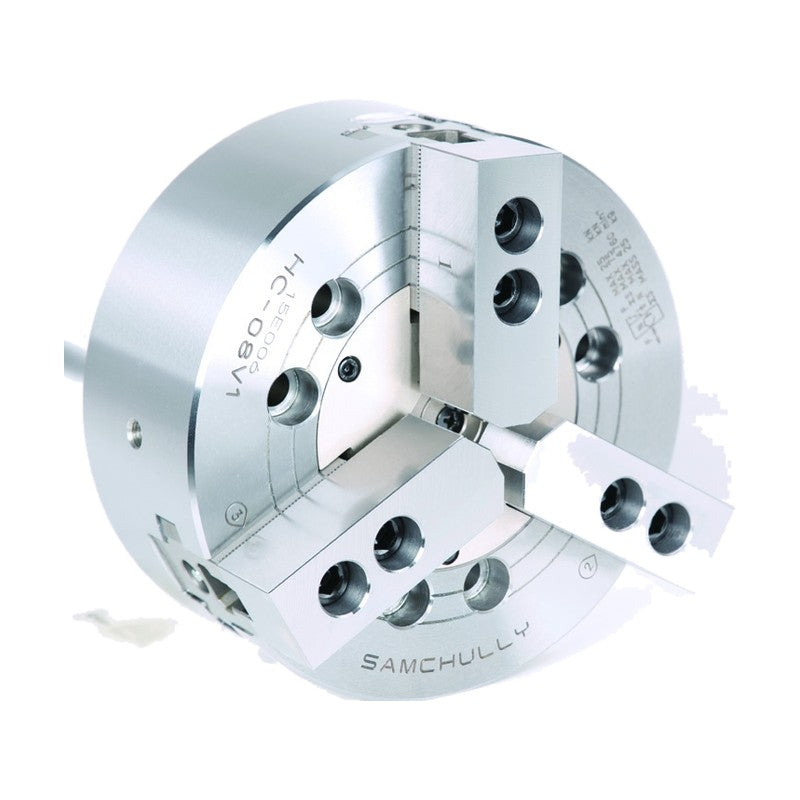

Samchully Standard 3-Jaw High-Speed Closed-Center Power Chuck HC

Samchully Standard 3-Jaw High-Speed Closed-Center Power Chuck HC

Standard high-speed 3-jaw wedge-style closed-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Hardened for high precision and long chuck life
HC-04 Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 15 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 8 | Max. Permissible Input Force (kN (kgf)): 8.2(836) | Max. Static Gripping Force (kN (kgf)): 22.8(2325) | Max. Speed (rpm): 6000 | Weight (kg): 4.1 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.4(24.5) | Operating Cylinder (Hydraulic): Y-0715R(RE) | Operating Cylinder (Pneumatic): AY-1315R | Operating Hard Jaw: HB04N1
HC-05 Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 15 | Grip Dia. Max (mm): 135 | Grip Dia. Min (mm): 16 | Max. Permissible Input Force (kN (kgf)): 8.2(836) | Max. Static Gripping Force (kN (kgf)): 25.2(2570) | Max. Speed (rpm): 5500 | Weight (kg): 6.2 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.4(24.5) | Operating Cylinder (Hydraulic): Y-0715R(RE) | Operating Cylinder (Pneumatic): AY-1315R | Operating Hard Jaw: HB04N1
HC-06 Jaw Stroke Dia. (mm): 8.5 | Plunger Stroke (mm): 18.5 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 19 | Max. Permissible Input Force (kN (kgf)): 18(1835) | Max. Static Gripping Force (kN (kgf)): 52.5(5353) | Max. Speed (rpm): 5270 | Weight (kg): 13 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.6(26.5) | Operating Cylinder (Hydraulic): Y-1020R(RE) | Operating Cylinder (Pneumatic): AY-1720R | Operating Hard Jaw: HB06A1
HC-08 Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Max. Permissible Input Force (kN (kgf)): 25(2549) | Max. Static Gripping Force (kN (kgf)): 75(7648) | Max. Speed (rpm): 4760 | Weight (kg): 25 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.5(25.5) | Operating Cylinder (Hydraulic): Y-1225R(RE) | Operating Cylinder (Pneumatic): AY-2225R | Operating Hard Jaw: HB08A1
HC-10 Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 24 | Max. Permissible Input Force (kN (kgf)): 29(2957) | Max. Static Gripping Force (kN (kgf)): 108(11013) | Max. Speed (rpm): 4010 | Weight (kg): 37 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.8(28.6) | Operating Cylinder (Hydraulic): Y-1225R(RE) | Operating Cylinder (Pneumatic): AY-2225R | Operating Hard Jaw: HB10A1
HC-12 Jaw Stroke Dia. (mm): 10.5 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 26 | Max. Permissible Input Force (kN (kgf)): 41(4181) | Max. Static Gripping Force (kN (kgf)): 156(15907) | Max. Speed (rpm): 3380 | Weight (kg): 57.3 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.7(27.5) | Operating Cylinder (Hydraulic): Y-1530R(RE) | Operating Cylinder (Pneumatic): AY-2730R | Operating Hard Jaw: HB12B1
HC-15 Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 71 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 3040 | Weight (kg): 96 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB15N1
HC-18 Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 133 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 2710 | Weight (kg): 124 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB15N1
HC-21 Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 62 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1940 | Weight (kg): 180 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB21B2
HC-24 Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 152 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1760 | Weight (kg): 223 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB21B2
HC-32S Jaw Stroke Dia. (mm): 20 | Plunger Stroke (mm): 38 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 200 | Max. Permissible Input Force (kN (kgf)): 100(10197) | Max. Static Gripping Force (kN (kgf)): 240(24473) | Max. Speed (rpm): 800 | Weight (kg): 350 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Cylinder (Hydraulic): Y-2050R(RE) | Operating Hard Jaw: HB32SB2
HC-40S Jaw Stroke Dia. (mm): 46 | Plunger Stroke (mm): 57 | Grip Dia. Max (mm): 1000 | Grip Dia. Min (mm): 330 | Max. Permissible Input Force (kN (kgf)): 180(18256) | Max. Static Gripping Force (kN (kgf)): 320(32454) | Max. Speed (rpm): 630 | Weight (kg): 600 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Cylinder (Hydraulic): Y-2560RE | Operating Hard Jaw: HB40SB2
Power ChucksSamchully
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard 3-Jaw High-Speed Closed-Center Power Chuck HC

Brand Samchully·Power Chucks

Available part numbers (12)

HC-04, HC-05, HC-06, HC-08, HC-10, HC-12, HC-15, HC-18, HC-21, HC-24 + 2 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC-04Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 15 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 8 | Max. Permissible Input Force (kN (kgf)): 8.2(836) | Max. Static Gripping Force (kN (kgf)): 22.8(2325) | Max. Speed (rpm): 6000 | Weight (kg): 4.1 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.4(24.5) | Operating Cylinder (Hydraulic): Y-0715R(RE) | Operating Cylinder (Pneumatic): AY-1315R | Operating Hard Jaw: HB04N1
HC-05Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 15 | Grip Dia. Max (mm): 135 | Grip Dia. Min (mm): 16 | Max. Permissible Input Force (kN (kgf)): 8.2(836) | Max. Static Gripping Force (kN (kgf)): 25.2(2570) | Max. Speed (rpm): 5500 | Weight (kg): 6.2 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.4(24.5) | Operating Cylinder (Hydraulic): Y-0715R(RE) | Operating Cylinder (Pneumatic): AY-1315R | Operating Hard Jaw: HB04N1
HC-06Jaw Stroke Dia. (mm): 8.5 | Plunger Stroke (mm): 18.5 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 19 | Max. Permissible Input Force (kN (kgf)): 18(1835) | Max. Static Gripping Force (kN (kgf)): 52.5(5353) | Max. Speed (rpm): 5270 | Weight (kg): 13 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.6(26.5) | Operating Cylinder (Hydraulic): Y-1020R(RE) | Operating Cylinder (Pneumatic): AY-1720R | Operating Hard Jaw: HB06A1
HC-08Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 23 | Max. Permissible Input Force (kN (kgf)): 25(2549) | Max. Static Gripping Force (kN (kgf)): 75(7648) | Max. Speed (rpm): 4760 | Weight (kg): 25 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.5(25.5) | Operating Cylinder (Hydraulic): Y-1225R(RE) | Operating Cylinder (Pneumatic): AY-2225R | Operating Hard Jaw: HB08A1
HC-10Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 24 | Max. Permissible Input Force (kN (kgf)): 29(2957) | Max. Static Gripping Force (kN (kgf)): 108(11013) | Max. Speed (rpm): 4010 | Weight (kg): 37 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.8(28.6) | Operating Cylinder (Hydraulic): Y-1225R(RE) | Operating Cylinder (Pneumatic): AY-2225R | Operating Hard Jaw: HB10A1
HC-12Jaw Stroke Dia. (mm): 10.5 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 26 | Max. Permissible Input Force (kN (kgf)): 41(4181) | Max. Static Gripping Force (kN (kgf)): 156(15907) | Max. Speed (rpm): 3380 | Weight (kg): 57.3 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.7(27.5) | Operating Cylinder (Hydraulic): Y-1530R(RE) | Operating Cylinder (Pneumatic): AY-2730R | Operating Hard Jaw: HB12B1
HC-15Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 71 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 3040 | Weight (kg): 96 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB15N1
HC-18Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 133 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 249(25391) | Max. Speed (rpm): 2710 | Weight (kg): 124 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB15N1
HC-21Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 62 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1940 | Weight (kg): 180 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB21B2
HC-24Jaw Stroke Dia. (mm): 16 | Plunger Stroke (mm): 35 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 152 | Max. Permissible Input Force (kN (kgf)): 82(8362) | Max. Static Gripping Force (kN (kgf)): 273(27838) | Max. Speed (rpm): 1760 | Weight (kg): 223 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.2(32.6) | Operating Cylinder (Hydraulic): Y-2035R(RE) | Operating Hard Jaw: HB21B2
HC-32SJaw Stroke Dia. (mm): 20 | Plunger Stroke (mm): 38 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 200 | Max. Permissible Input Force (kN (kgf)): 100(10197) | Max. Static Gripping Force (kN (kgf)): 240(24473) | Max. Speed (rpm): 800 | Weight (kg): 350 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Cylinder (Hydraulic): Y-2050R(RE) | Operating Hard Jaw: HB32SB2
HC-40SJaw Stroke Dia. (mm): 46 | Plunger Stroke (mm): 57 | Grip Dia. Max (mm): 1000 | Grip Dia. Min (mm): 330 | Max. Permissible Input Force (kN (kgf)): 180(18256) | Max. Static Gripping Force (kN (kgf)): 320(32454) | Max. Speed (rpm): 630 | Weight (kg): 600 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Cylinder (Hydraulic): Y-2560RE | Operating Hard Jaw: HB40SB2
