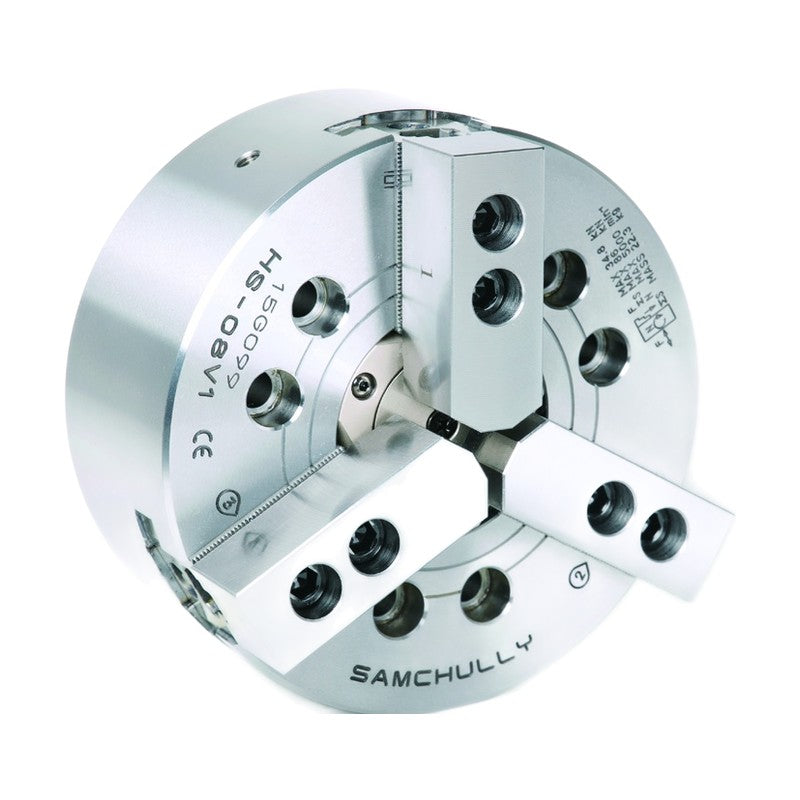

Samchully Standard 3-Jaw High-Speed Open-Center Chuck HS

Samchully Standard 3-Jaw High-Speed Open-Center Chuck HS

Standard high-speed 3-jaw wedge-style open-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HS-05 Through Hole Dia. (mm): 33 | Grip Dia. Max (mm): 135 | Grip Dia. Min (mm): 12 | Jaw Stroke Dia. (mm): 5.4 | Plunger Stroke (mm): 10 | Permissible Input Force (kN (kgf)): 17.5(1784) | Max. Static Gripping Force (kN (kgf)): 36(3671) | Max. Speed (rpm): 7000 | Weight (kg): 6.7 | Operating Cylinder: SD-10536S /SYH-1036 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.9(30) /3.43(35.0) | Operating Hard Jaw: HB04N1
HS-06 Through Hole Dia. (mm): 46 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 15 | Jaw Stroke Dia. (mm): 5.5 | Plunger Stroke (mm): 12 | Permissible Input Force (kN (kgf)): 22(2243) | Max. Static Gripping Force (kN (kgf)): 57(5812) | Max. Speed (rpm): 6000 | Weight (kg): 11.9 | Operating Cylinder: SD-13546 /SH-13046 (SYH-1246) | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.4) /2.80(28.6) | Operating Hard Jaw: HB06A1
HS-08 Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 13 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Permissible Input Force (kN (kgf)): 34.8(3549) | Max. Static Gripping Force (kN (kgf)): 86(8769) | Max. Speed (rpm): 5000 | Weight (kg): 22.3 | Operating Cylinder: SD-15452 /SH-15052 (SYH-1552) | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.65(27) /2.65(27.0) | Operating Hard Jaw: HB08A1
HS-10 Through Hole Dia. (mm): 77 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 31 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Permissible Input Force (kN (kgf)): 43(4385) | Max. Static Gripping Force (kN (kgf)): 111(11319) | Max. Speed (rpm): 4200 | Weight (kg): 34.5 | Operating Cylinder: SD-18577 /SH-18077 (SYH-1877) | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.7(27.5) /2.70(27.5) | Operating Hard Jaw: HB10A1
HS-12 Through Hole Dia. (mm): 91 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 34 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Permissible Input Force (kN (kgf)): 55(5608) | Max. Static Gripping Force (kN (kgf)): 144(14686) | Max. Speed (rpm): 3300 | Weight (kg): 55.3 | Operating Cylinder: SD-20591 /SYH-2091 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.7(27.5) /2.70(27.5) | Operating Hard Jaw: HB12N1
Power ChucksSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard 3-Jaw High-Speed Open-Center Chuck HS

Brand Samchully·Power Chucks

Available part numbers (5)

HS-05, HS-06, HS-08, HS-10, HS-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HS-05Through Hole Dia. (mm): 33 | Grip Dia. Max (mm): 135 | Grip Dia. Min (mm): 12 | Jaw Stroke Dia. (mm): 5.4 | Plunger Stroke (mm): 10 | Permissible Input Force (kN (kgf)): 17.5(1784) | Max. Static Gripping Force (kN (kgf)): 36(3671) | Max. Speed (rpm): 7000 | Weight (kg): 6.7 | Operating Cylinder: SD-10536S /SYH-1036 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.9(30) /3.43(35.0) | Operating Hard Jaw: HB04N1
HS-06Through Hole Dia. (mm): 46 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 15 | Jaw Stroke Dia. (mm): 5.5 | Plunger Stroke (mm): 12 | Permissible Input Force (kN (kgf)): 22(2243) | Max. Static Gripping Force (kN (kgf)): 57(5812) | Max. Speed (rpm): 6000 | Weight (kg): 11.9 | Operating Cylinder: SD-13546 /SH-13046 (SYH-1246) | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.4) /2.80(28.6) | Operating Hard Jaw: HB06A1
HS-08Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 13 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Permissible Input Force (kN (kgf)): 34.8(3549) | Max. Static Gripping Force (kN (kgf)): 86(8769) | Max. Speed (rpm): 5000 | Weight (kg): 22.3 | Operating Cylinder: SD-15452 /SH-15052 (SYH-1552) | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.65(27) /2.65(27.0) | Operating Hard Jaw: HB08A1
HS-10Through Hole Dia. (mm): 77 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 31 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Permissible Input Force (kN (kgf)): 43(4385) | Max. Static Gripping Force (kN (kgf)): 111(11319) | Max. Speed (rpm): 4200 | Weight (kg): 34.5 | Operating Cylinder: SD-18577 /SH-18077 (SYH-1877) | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.7(27.5) /2.70(27.5) | Operating Hard Jaw: HB10A1
HS-12Through Hole Dia. (mm): 91 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 34 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Permissible Input Force (kN (kgf)): 55(5608) | Max. Static Gripping Force (kN (kgf)): 144(14686) | Max. Speed (rpm): 3300 | Weight (kg): 55.3 | Operating Cylinder: SD-20591 /SYH-2091 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.7(27.5) /2.70(27.5) | Operating Hard Jaw: HB12N1
