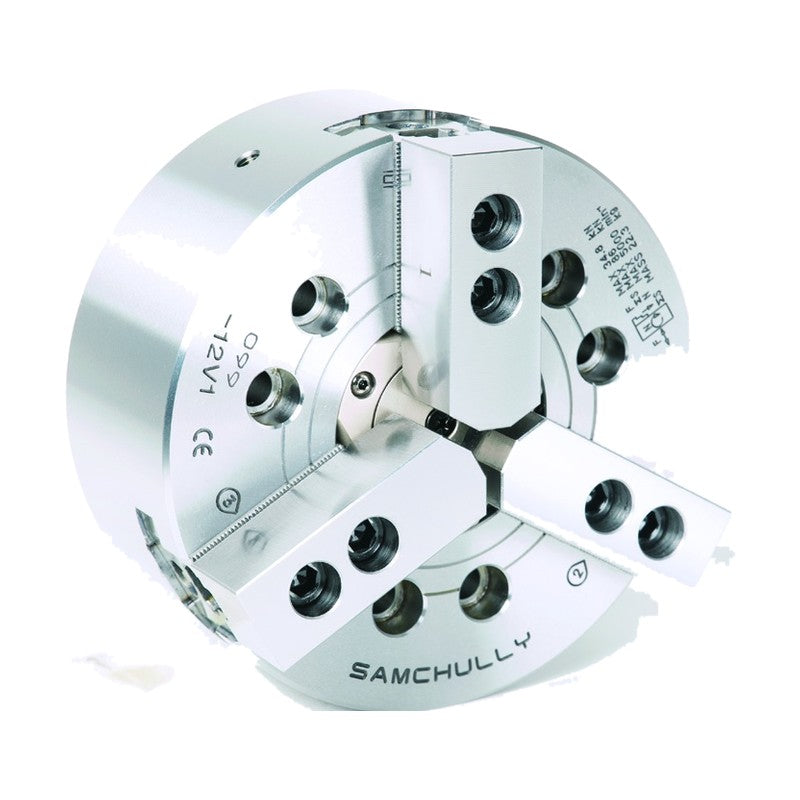

Samchully Standard 3-Jaw Open-Center Power Chuck HCH

Samchully Standard 3-Jaw Open-Center Power Chuck HCH

Standard 3-jaw wedge-style open-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HCH-04 Through Hole Dia. (mm): 21 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 5 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 6.5 | Max. Permissible Input Force (kN (kgf)): 8(800) | Max. Static Gripping Force (kN (kgf)): 13(1350) | Max. Speed (rpm): 5500 | Weight (kg): 3.7 | Operating Cylinder: SD-10036S | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.25(12.8) | Operating Hard Jaw: HB04A1
HCH-15 Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2500 | Weight (kg): 120 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HB15A1
HCH-18 Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2000 | Weight (kg): 164 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HB15A1
HCH-21 Through Hole Dia. (mm): 140 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 87 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1700 | Weight (kg): 235 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(30.6) | Operating Hard Jaw: HB21B2
HCH-24 Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 110 | Jaw Stroke Dia. (mm): 12.8 | Plunger Stroke (mm): 28 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1400 | Weight (kg): 293 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.21(22.5) | Operating Hard Jaw: HB21B2
HCH-32 Through Hole Dia. (mm): 240 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 240 | Jaw Stroke Dia. (mm): 18 | Plunger Stroke (mm): 34 | Max. Permissible Input Force (kN (kgf)): 100(10193) | Max. Static Gripping Force (kN (kgf)): 240(24464) | Max. Speed (rpm): 1200 | Weight (kg): 530 | Operating Cylinder: SHL-39024 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.0(20.4) | Operating Hard Jaw: HB32B2
Power ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard 3-Jaw Open-Center Power Chuck HCH

Brand Samchully·Power Chucks

Available part numbers (6)

HCH-04, HCH-15, HCH-18, HCH-21, HCH-24, HCH-32

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCH-04Through Hole Dia. (mm): 21 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 5 | Jaw Stroke Dia. (mm): 4.2 | Plunger Stroke (mm): 6.5 | Max. Permissible Input Force (kN (kgf)): 8(800) | Max. Static Gripping Force (kN (kgf)): 13(1350) | Max. Speed (rpm): 5500 | Weight (kg): 3.7 | Operating Cylinder: SD-10036S | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.25(12.8) | Operating Hard Jaw: HB04A1
HCH-15Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2500 | Weight (kg): 120 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HB15A1
HCH-18Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2000 | Weight (kg): 164 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HB15A1
HCH-21Through Hole Dia. (mm): 140 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 87 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1700 | Weight (kg): 235 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(30.6) | Operating Hard Jaw: HB21B2
HCH-24Through Hole Dia. (mm): 166.5 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 110 | Jaw Stroke Dia. (mm): 12.8 | Plunger Stroke (mm): 28 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1400 | Weight (kg): 293 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.21(22.5) | Operating Hard Jaw: HB21B2
HCH-32Through Hole Dia. (mm): 240 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 240 | Jaw Stroke Dia. (mm): 18 | Plunger Stroke (mm): 34 | Max. Permissible Input Force (kN (kgf)): 100(10193) | Max. Static Gripping Force (kN (kgf)): 240(24464) | Max. Speed (rpm): 1200 | Weight (kg): 530 | Operating Cylinder: SHL-39024 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.0(20.4) | Operating Hard Jaw: HB32B2
