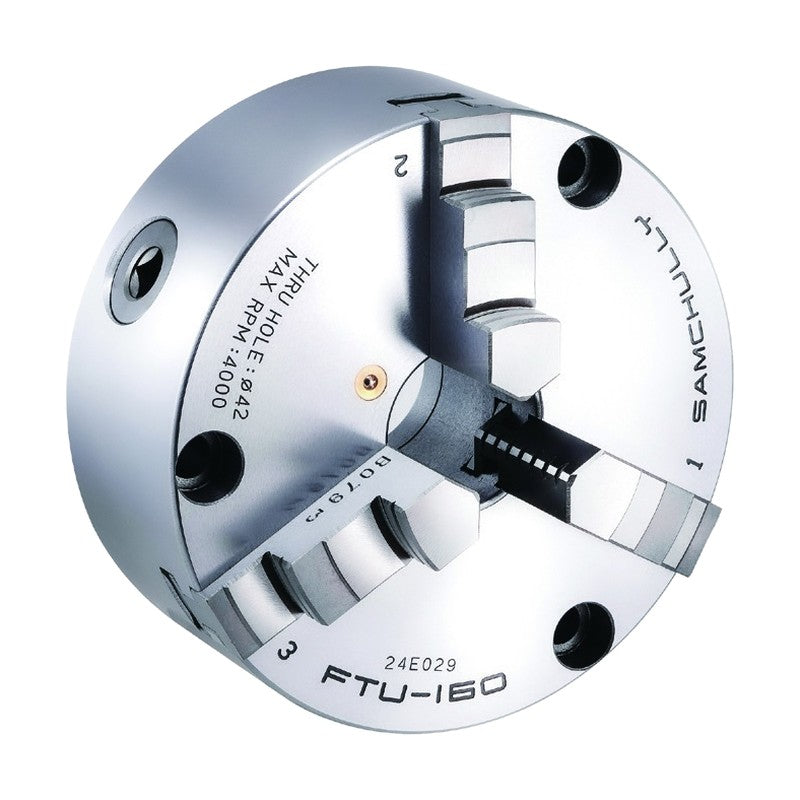

Samchully Standard Front-Mounting Scroll Chuck FTU (Hard Jaws)

Samchully Standard Front-Mounting Scroll Chuck FTU (Hard Jaws)

Front-mounting 3-jaw scroll chucks supplied with one-piece (FTU-1) or two-piece (FTU-2) hard jaws, Ø125 to Ø315 mm.

Key features

  • Front mounting
  • FTU-1: hardened monoblock jaws included
  • FTU-2: base jaws and top hard jaws included
  • Clamping range Ø3~Ø309
FTU-125-1 Jaws: One-piece hard jaws | Chuck Dia. (mm): 125 | Through Hole (mm): 32 | Max. Static Gripping Force (kN (kgf)): 15 (1530) | Clamping Range External (mm): 3~110 | Clamping Range Internal (mm): 33~100 | Handle Torque (N·m): 63.7 | Max. Speed (min-1): 2500 | Weight (kg): 4.0
FTU-160-1 Jaws: One-piece hard jaws | Chuck Dia. (mm): 160 | Through Hole (mm): 42 | Max. Static Gripping Force (kN (kgf)): 31 (3161) | Clamping Range External (mm): 3~150 | Clamping Range Internal (mm): 48~145 | Handle Torque (N·m): 88.3 | Max. Speed (min-1): 4000 | Weight (kg): 10.5
FTU-200-1 Jaws: One-piece hard jaws | Chuck Dia. (mm): 200 | Through Hole (mm): 55 | Max. Static Gripping Force (kN (kgf)): 37 (3773) | Clamping Range External (mm): 4~190 | Clamping Range Internal (mm): 56~180 | Handle Torque (N·m): 147.0 | Max. Speed (min-1): 3500 | Weight (kg): 17.0
FTU-250-1 Jaws: One-piece hard jaws | Chuck Dia. (mm): 250 | Through Hole (mm): 76 | Max. Static Gripping Force (kN (kgf)): 46 (4691) | Clamping Range External (mm): 5~220 | Clamping Range Internal (mm): 62~230 | Handle Torque (N·m): 176.5 | Max. Speed (min-1): 3000 | Weight (kg): 25.0
FTU-315-1 Jaws: One-piece hard jaws | Chuck Dia. (mm): 315 | Through Hole (mm): 103 | Max. Static Gripping Force (kN (kgf)): 55 (5608) | Clamping Range External (mm): 10~300 | Clamping Range Internal (mm): 86~290 | Handle Torque (N·m): 206.0 | Max. Speed (min-1): 2200 | Weight (kg): 42.0
FTU-125-2 Jaws: Two-piece hard jaws | Chuck Dia. (mm): 125 | Through Hole (mm): 32 | Max. Static Gripping Force (kN (kgf)): 15 (1530) | Clamping Range External (mm): 3~111 | Clamping Range Internal (mm): 32~100 | Handle Torque (N·m): 63.7 | Max. Speed (min-1): 2500 | Weight (kg): 4.0
FTU-160-2 Jaws: Two-piece hard jaws | Chuck Dia. (mm): 160 | Through Hole (mm): 42 | Max. Static Gripping Force (kN (kgf)): 31 (3161) | Clamping Range External (mm): 3~152 | Clamping Range Internal (mm): 45~145 | Handle Torque (N·m): 88.3 | Max. Speed (min-1): 4000 | Weight (kg): 10.5
FTU-200-2 Jaws: Two-piece hard jaws | Chuck Dia. (mm): 200 | Through Hole (mm): 55 | Max. Static Gripping Force (kN (kgf)): 37 (3773) | Clamping Range External (mm): 4~193 | Clamping Range Internal (mm): 53~180 | Handle Torque (N·m): 147.0 | Max. Speed (min-1): 3500 | Weight (kg): 17.0
FTU-250-2 Jaws: Two-piece hard jaws | Chuck Dia. (mm): 250 | Through Hole (mm): 76 | Max. Static Gripping Force (kN (kgf)): 46 (4691) | Clamping Range External (mm): 4~225 | Clamping Range Internal (mm): 57~232 | Handle Torque (N·m): 176.5 | Max. Speed (min-1): 3000 | Weight (kg): 25.0
FTU-315-2 Jaws: Two-piece hard jaws | Chuck Dia. (mm): 315 | Through Hole (mm): 103 | Max. Static Gripping Force (kN (kgf)): 55 (5608) | Clamping Range External (mm): 10~309 | Clamping Range Internal (mm): 77~290 | Handle Torque (N·m): 206.0 | Max. Speed (min-1): 2200 | Weight (kg): 42.0
Scroll ChucksSamchully
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard Front-Mounting Scroll Chuck FTU (Hard Jaws)

Brand Samchully·Scroll Chucks

Available part numbers (10)

FTU-125-1, FTU-160-1, FTU-200-1, FTU-250-1, FTU-315-1, FTU-125-2, FTU-160-2, FTU-200-2, FTU-250-2, FTU-315-2

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FTU-125-1Jaws: One-piece hard jaws | Chuck Dia. (mm): 125 | Through Hole (mm): 32 | Max. Static Gripping Force (kN (kgf)): 15 (1530) | Clamping Range External (mm): 3~110 | Clamping Range Internal (mm): 33~100 | Handle Torque (N·m): 63.7 | Max. Speed (min-1): 2500 | Weight (kg): 4.0
FTU-160-1Jaws: One-piece hard jaws | Chuck Dia. (mm): 160 | Through Hole (mm): 42 | Max. Static Gripping Force (kN (kgf)): 31 (3161) | Clamping Range External (mm): 3~150 | Clamping Range Internal (mm): 48~145 | Handle Torque (N·m): 88.3 | Max. Speed (min-1): 4000 | Weight (kg): 10.5
FTU-200-1Jaws: One-piece hard jaws | Chuck Dia. (mm): 200 | Through Hole (mm): 55 | Max. Static Gripping Force (kN (kgf)): 37 (3773) | Clamping Range External (mm): 4~190 | Clamping Range Internal (mm): 56~180 | Handle Torque (N·m): 147.0 | Max. Speed (min-1): 3500 | Weight (kg): 17.0
FTU-250-1Jaws: One-piece hard jaws | Chuck Dia. (mm): 250 | Through Hole (mm): 76 | Max. Static Gripping Force (kN (kgf)): 46 (4691) | Clamping Range External (mm): 5~220 | Clamping Range Internal (mm): 62~230 | Handle Torque (N·m): 176.5 | Max. Speed (min-1): 3000 | Weight (kg): 25.0
FTU-315-1Jaws: One-piece hard jaws | Chuck Dia. (mm): 315 | Through Hole (mm): 103 | Max. Static Gripping Force (kN (kgf)): 55 (5608) | Clamping Range External (mm): 10~300 | Clamping Range Internal (mm): 86~290 | Handle Torque (N·m): 206.0 | Max. Speed (min-1): 2200 | Weight (kg): 42.0
FTU-125-2Jaws: Two-piece hard jaws | Chuck Dia. (mm): 125 | Through Hole (mm): 32 | Max. Static Gripping Force (kN (kgf)): 15 (1530) | Clamping Range External (mm): 3~111 | Clamping Range Internal (mm): 32~100 | Handle Torque (N·m): 63.7 | Max. Speed (min-1): 2500 | Weight (kg): 4.0
FTU-160-2Jaws: Two-piece hard jaws | Chuck Dia. (mm): 160 | Through Hole (mm): 42 | Max. Static Gripping Force (kN (kgf)): 31 (3161) | Clamping Range External (mm): 3~152 | Clamping Range Internal (mm): 45~145 | Handle Torque (N·m): 88.3 | Max. Speed (min-1): 4000 | Weight (kg): 10.5
FTU-200-2Jaws: Two-piece hard jaws | Chuck Dia. (mm): 200 | Through Hole (mm): 55 | Max. Static Gripping Force (kN (kgf)): 37 (3773) | Clamping Range External (mm): 4~193 | Clamping Range Internal (mm): 53~180 | Handle Torque (N·m): 147.0 | Max. Speed (min-1): 3500 | Weight (kg): 17.0
FTU-250-2Jaws: Two-piece hard jaws | Chuck Dia. (mm): 250 | Through Hole (mm): 76 | Max. Static Gripping Force (kN (kgf)): 46 (4691) | Clamping Range External (mm): 4~225 | Clamping Range Internal (mm): 57~232 | Handle Torque (N·m): 176.5 | Max. Speed (min-1): 3000 | Weight (kg): 25.0
FTU-315-2Jaws: Two-piece hard jaws | Chuck Dia. (mm): 315 | Through Hole (mm): 103 | Max. Static Gripping Force (kN (kgf)): 55 (5608) | Clamping Range External (mm): 10~309 | Clamping Range Internal (mm): 77~290 | Handle Torque (N·m): 206.0 | Max. Speed (min-1): 2200 | Weight (kg): 42.0
