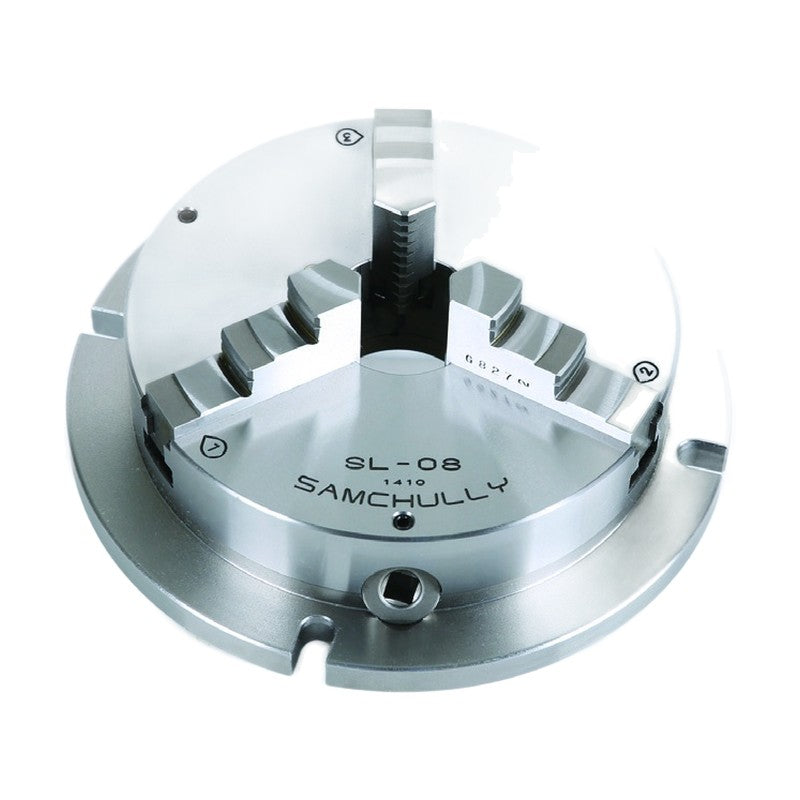

Samchully Standard Slotter Chuck SL (Hard Jaws)

Samchully Standard Slotter Chuck SL (Hard Jaws)

Low-profile, compact slotter chucks with one-piece reversible hard jaws, ideal for machining centers.

Key features

  • Low profile and compact
  • Ideal for machining centers
  • Angled T-handle slot
  • One-piece reversible hard jaws
SL-08 Max. Static Gripping Force (kN (kgf)): 37 (3800) | Clamping Range External (mm): 4~182 | Clamping Range Internal (mm): 58~174 | Handle Torque (N·m): 117.7 | Weight (kg): 17.6 | Outer Dia. (mm): 215 | Through Hole (mm): 60
SL-10 Max. Static Gripping Force (kN (kgf)): 46 (4700) | Clamping Range External (mm): 4~220 | Clamping Range Internal (mm): 68~212 | Handle Torque (N·m): 176.5 | Weight (kg): 27.7 | Outer Dia. (mm): 255 | Through Hole (mm): 76
SL-12 Max. Static Gripping Force (kN (kgf)): 55 (5620) | Clamping Range External (mm): 5~266 | Clamping Range Internal (mm): 80~263 | Handle Torque (N·m): 196.2 | Weight (kg): 40 | Outer Dia. (mm): 305 | Through Hole (mm): 100
Scroll ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard Slotter Chuck SL (Hard Jaws)

Brand Samchully·Scroll Chucks

Available part numbers (3)

SL-08, SL-10, SL-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL-08Max. Static Gripping Force (kN (kgf)): 37 (3800) | Clamping Range External (mm): 4~182 | Clamping Range Internal (mm): 58~174 | Handle Torque (N·m): 117.7 | Weight (kg): 17.6 | Outer Dia. (mm): 215 | Through Hole (mm): 60
SL-10Max. Static Gripping Force (kN (kgf)): 46 (4700) | Clamping Range External (mm): 4~220 | Clamping Range Internal (mm): 68~212 | Handle Torque (N·m): 176.5 | Weight (kg): 27.7 | Outer Dia. (mm): 255 | Through Hole (mm): 76
SL-12Max. Static Gripping Force (kN (kgf)): 55 (5620) | Clamping Range External (mm): 5~266 | Clamping Range Internal (mm): 80~263 | Handle Torque (N·m): 196.2 | Weight (kg): 40 | Outer Dia. (mm): 305 | Through Hole (mm): 100
