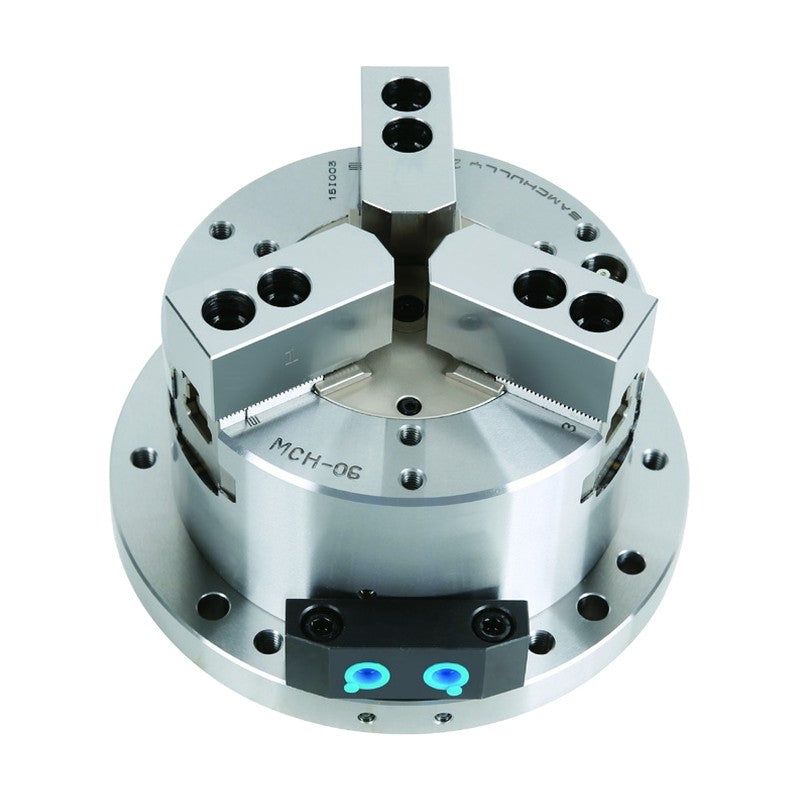

Samchully Stationary Hydraulic Power Chuck MCH

Samchully Stationary Hydraulic Power Chuck MCH

Stationary hydraulic power chucks with built-in cylinder for machining centers, usable with the 50AH-C air/hydraulic booster.

Key features

  • Built-in cylinder saves space
  • Sealed against coolant and chips
  • Compatible with 50AH-C air/hydraulic booster
  • Soft and hard jaw options
MCH-06 Clamping Force at 25 bar (kN): 55 | Jaw Stroke Dia. (mm): 5.2 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 15 | Max. Pressure (as printed, MPa(kgf/cm2)): 18 | Weight (kg): 18 | Outer Dia. (mm): 210
MCH-08 Clamping Force at 25 bar (kN): 85 | Jaw Stroke Dia. (mm): 6.3 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 30 | Max. Pressure (as printed, MPa(kgf/cm2)): 18 | Weight (kg): 30 | Outer Dia. (mm): 255
MCH-10 Clamping Force at 25 bar (kN): 125 | Jaw Stroke Dia. (mm): 6.8 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 50 | Max. Pressure (as printed, MPa(kgf/cm2)): 15 | Weight (kg): 44 | Outer Dia. (mm): 300
Power ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Stationary Hydraulic Power Chuck MCH

Brand Samchully·Power Chucks

Available part numbers (3)

MCH-06, MCH-08, MCH-10

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MCH-06Clamping Force at 25 bar (kN): 55 | Jaw Stroke Dia. (mm): 5.2 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 15 | Max. Pressure (as printed, MPa(kgf/cm2)): 18 | Weight (kg): 18 | Outer Dia. (mm): 210
MCH-08Clamping Force at 25 bar (kN): 85 | Jaw Stroke Dia. (mm): 6.3 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 30 | Max. Pressure (as printed, MPa(kgf/cm2)): 18 | Weight (kg): 30 | Outer Dia. (mm): 255
MCH-10Clamping Force at 25 bar (kN): 125 | Jaw Stroke Dia. (mm): 6.8 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 50 | Max. Pressure (as printed, MPa(kgf/cm2)): 15 | Weight (kg): 44 | Outer Dia. (mm): 300
