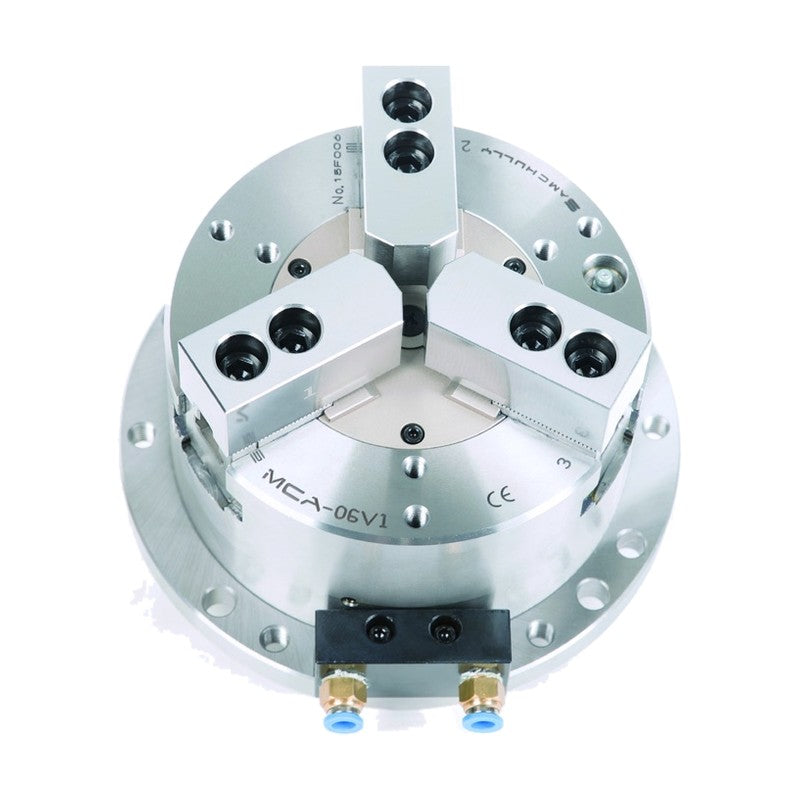

Samchully Stationary Pneumatic Chuck MCA

Samchully Stationary Pneumatic Chuck MCA

Stationary pneumatic chucks with built-in air cylinder for fast, strong clamping on machining centers at standard 0.7 MPa.

Key features

  • Built-in air cylinder, compact design
  • Sealed against coolant and chips
  • Suitable for robotic part tending
  • Soft and hard jaw options
MCA-04 Clamping Force at 6 bar (kN (kgf)): 7.5 (765) | Jaw Stroke Dia. (mm): 5.2 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 10 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 7.3 | Outer Dia. (mm): 148
MCA-06 Clamping Force at 6 bar (kN (kgf)): 21 (2140) | Jaw Stroke Dia. (mm): 5.2 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 23 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 16 | Outer Dia. (mm): 203
MCA-08 Clamping Force at 6 bar (kN (kgf)): 33 (3300) | Jaw Stroke Dia. (mm): 6.3 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 30 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 28 | Outer Dia. (mm): 248
MCA-10 Clamping Force at 6 bar (kN (kgf)): 48 (4800) | Jaw Stroke Dia. (mm): 6.3 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 50 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 43 | Outer Dia. (mm): 300
Pneumatic ChucksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Stationary Pneumatic Chuck MCA

Brand Samchully·Pneumatic Chucks

Available part numbers (4)

MCA-04, MCA-06, MCA-08, MCA-10

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MCA-04Clamping Force at 6 bar (kN (kgf)): 7.5 (765) | Jaw Stroke Dia. (mm): 5.2 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 10 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 7.3 | Outer Dia. (mm): 148
MCA-06Clamping Force at 6 bar (kN (kgf)): 21 (2140) | Jaw Stroke Dia. (mm): 5.2 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 23 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 16 | Outer Dia. (mm): 203
MCA-08Clamping Force at 6 bar (kN (kgf)): 33 (3300) | Jaw Stroke Dia. (mm): 6.3 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 30 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 28 | Outer Dia. (mm): 248
MCA-10Clamping Force at 6 bar (kN (kgf)): 48 (4800) | Jaw Stroke Dia. (mm): 6.3 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 50 | Max. Pneumatic Pressure (MPa): 0.7 | Weight (kg): 43 | Outer Dia. (mm): 300
