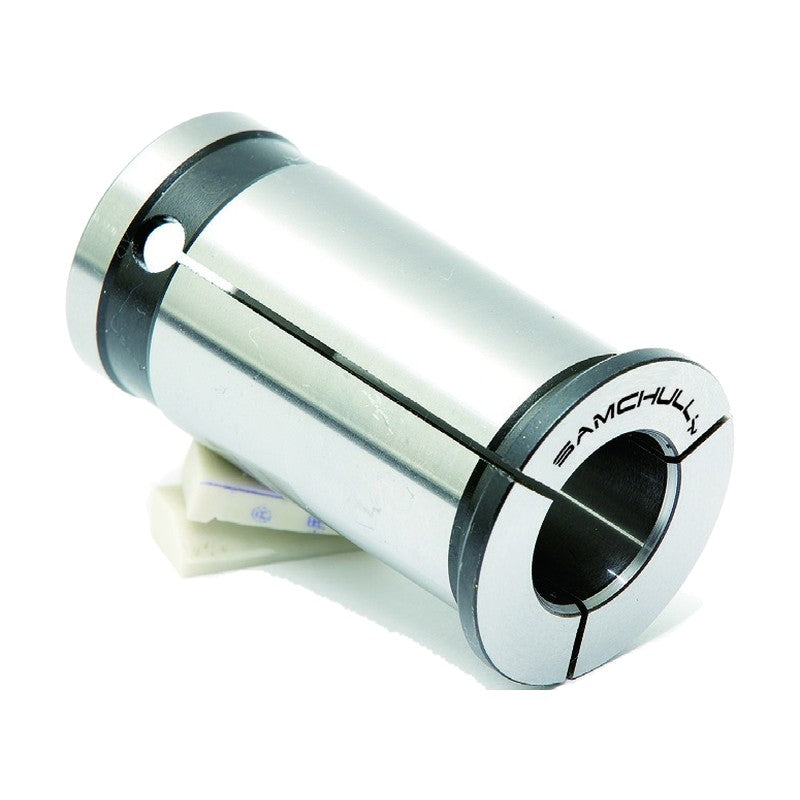

Samchully Straight Collets ST-C

Samchully Straight Collets ST-C

Straight collets for milling chucks in shank sizes 20, 25, 32 and 42 mm, metric and inch bores.

ST20-C0125" Ød (mm): 3.175 | ØD (mm): 20 | L (mm): 30
ST20-C6.0 Ød (mm): 6.0 | ØD (mm): 20 | L (mm): 30
ST20-C0250" Ød (mm): 6.35 | ØD (mm): 20 | L (mm): 30
ST20-C8.0 Ød (mm): 8.0 | ØD (mm): 20 | L (mm): 40
ST20-C0375" Ød (mm): 9.525 | ØD (mm): 20 | L (mm): 40
ST20-C10.0 Ød (mm): 10.0 | ØD (mm): 20 | L (mm): 40
ST20-C12.0 Ød (mm): 12.0 | ØD (mm): 20 | L (mm): 40
ST20-C0500" Ød (mm): 12.7 | ØD (mm): 20 | L (mm): 40
ST20-C0625" Ød (mm): 15.875 | ØD (mm): 20 | L (mm): 53
ST20-C16.0 Ød (mm): 16.0 | ØD (mm): 20 | L (mm): 53
ST25-C0125" Ød (mm): 3.175 | ØD (mm): 25 | L (mm): 60
ST25-C6.0 Ød (mm): 6.0 | ØD (mm): 25 | L (mm): 60
ST25-C0250" Ød (mm): 6.35 | ØD (mm): 25 | L (mm): 60
ST25-C0312" Ød (mm): 7.9375 | ØD (mm): 25 | L (mm): 60
ST25-C8.0 Ød (mm): 8.0 | ØD (mm): 25 | L (mm): 60
ST25-C0375" Ød (mm): 9.525 | ØD (mm): 25 | L (mm): 60
ST25-C10.0 Ød (mm): 10.0 | ØD (mm): 25 | L (mm): 60
ST25-C12.0 Ød (mm): 12.0 | ØD (mm): 25 | L (mm): 60
ST25-C0500" Ød (mm): 12.7 | ØD (mm): 25 | L (mm): 60
ST25-C14.0 Ød (mm): 14.0 | ØD (mm): 25 | L (mm): 60
ST25-C0625" Ød (mm): 15.875 | ØD (mm): 25 | L (mm): 60
ST25-C18.0 Ød (mm): 18.0 | ØD (mm): 25 | L (mm): 60
ST25-C0750" Ød (mm): 19.05 | ØD (mm): 25 | L (mm): 60
ST32-C6.0 Ød (mm): 6.0 | ØD (mm): 32 | L (mm): 65
ST32-C0250" Ød (mm): 6.35 | ØD (mm): 32 | L (mm): 65
ST32-C0312" Ød (mm): 7.9375 | ØD (mm): 32 | L (mm): 65
ST32-C8.0 Ød (mm): 8.0 | ØD (mm): 32 | L (mm): 65
ST32-C0375" Ød (mm): 9.525 | ØD (mm): 32 | L (mm): 65
ST32-C10.0 Ød (mm): 10.0 | ØD (mm): 32 | L (mm): 65
ST32-C12.0 Ød (mm): 12.0 | ØD (mm): 32 | L (mm): 65
ST32-C0500" Ød (mm): 12.7 | ØD (mm): 32 | L (mm): 65
ST32-C14.0 Ød (mm): 14.0 | ØD (mm): 32 | L (mm): 65
ST32-C0625" Ød (mm): 15.875 | ØD (mm): 32 | L (mm): 65
ST32-C18.0 Ød (mm): 18.0 | ØD (mm): 32 | L (mm): 65
ST32-C0750" Ød (mm): 19.05 | ØD (mm): 32 | L (mm): 65
ST32-C20.0 Ød (mm): 20.0 | ØD (mm): 32 | L (mm): 65
ST32-C25.0 Ød (mm): 25.0 | ØD (mm): 32 | L (mm): 65
ST32-C1000" Ød (mm): 25.4 | ØD (mm): 32 | L (mm): 65
ST42-C6.0 Ød (mm): 6.0 | ØD (mm): 42 | L (mm): 79
ST42-C0250" Ød (mm): 6.35 | ØD (mm): 42 | L (mm): 79
ST42-C0312" Ød (mm): 7.9375 | ØD (mm): 42 | L (mm): 79
ST42-C8.0 Ød (mm): 8.0 | ØD (mm): 42 | L (mm): 79
ST42-C0375" Ød (mm): 9.525 | ØD (mm): 42 | L (mm): 79
ST42-C10.0 Ød (mm): 10.0 | ØD (mm): 42 | L (mm): 79
ST42-C12.0 Ød (mm): 12.0 | ØD (mm): 42 | L (mm): 79
ST42-C0500" Ød (mm): 12.7 | ØD (mm): 42 | L (mm): 79
ST42-C14.0 Ød (mm): 14.0 | ØD (mm): 42 | L (mm): 79
ST42-C0625" Ød (mm): 15.875 | ØD (mm): 42 | L (mm): 79
ST42-C18.0 Ød (mm): 18.0 | ØD (mm): 42 | L (mm): 79
ST42-C0750" Ød (mm): 19.05 | ØD (mm): 42 | L (mm): 79
ST42-C20.0 Ød (mm): 20.0 | ØD (mm): 42 | L (mm): 79
ST42-C25.0 Ød (mm): 25.0 | ØD (mm): 42 | L (mm): 79
ST42-C1000" Ød (mm): 25.4 | ØD (mm): 42 | L (mm): 79
ST42-C32.0 Ød (mm): 32.0 | ØD (mm): 42 | L (mm): 79
ColletsSamchully
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Straight Collets ST-C

Brand Samchully·Collets

Available part numbers (54)

ST20-C0125", ST20-C6.0, ST20-C0250", ST20-C8.0, ST20-C0375", ST20-C10.0, ST20-C12.0, ST20-C0500", ST20-C0625", ST20-C16.0 + 44 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
