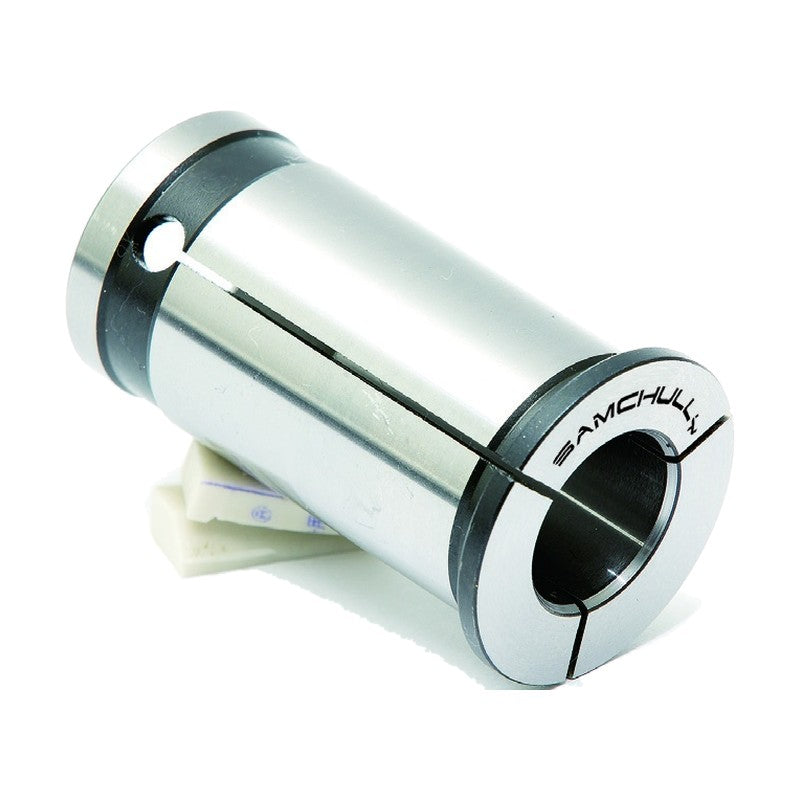

Samchully Straight Collets with Adjusting Screw ST-CN

Samchully Straight Collets with Adjusting Screw ST-CN

Straight collets with adjusting screw (AD type) for 32 and 42 mm milling chucks.

ST32-CN6 Ød (mm): 6 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 30 | H max. (mm): 62
ST32-CN8 Ød (mm): 8 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 32 | H max. (mm): 62
ST32-CN10 Ød (mm): 10 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 37 | H max. (mm): 62
ST32-CN12 Ød (mm): 12 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 37 | H max. (mm): 62
ST32-CN16 Ød (mm): 16 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 46 | H max. (mm): 62
ST32-CN20 Ød (mm): 20 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 52 | H max. (mm): 62
ST32-CN25 Ød (mm): 25 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 55 | H max. (mm): 62
ST42-CN6 Ød (mm): 6 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 30 | H max. (mm): 65
ST42-CN8 Ød (mm): 8 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 34 | H max. (mm): 65
ST42-CN10 Ød (mm): 10 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 37 | H max. (mm): 65
ST42-CN12 Ød (mm): 12 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 37 | H max. (mm): 65
ST42-CN16 Ød (mm): 16 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 46 | H max. (mm): 65
ST42-CN20 Ød (mm): 20 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 52 | H max. (mm): 65
ST42-CN25 Ød (mm): 25 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 55 | H max. (mm): 65
ST42-CN32 Ød (mm): 32 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 62 | H max. (mm): 65
ColletsSamchully
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Straight Collets with Adjusting Screw ST-CN

Brand Samchully·Collets

Available part numbers (15)

ST32-CN6, ST32-CN8, ST32-CN10, ST32-CN12, ST32-CN16, ST32-CN20, ST32-CN25, ST42-CN6, ST42-CN8, ST42-CN10 + 5 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST32-CN6Ød (mm): 6 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 30 | H max. (mm): 62
ST32-CN8Ød (mm): 8 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 32 | H max. (mm): 62
ST32-CN10Ød (mm): 10 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 37 | H max. (mm): 62
ST32-CN12Ød (mm): 12 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 37 | H max. (mm): 62
ST32-CN16Ød (mm): 16 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 46 | H max. (mm): 62
ST32-CN20Ød (mm): 20 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 52 | H max. (mm): 62
ST32-CN25Ød (mm): 25 | ØD (mm): 32 | L (mm): 71 | H min. (mm): 55 | H max. (mm): 62
ST42-CN6Ød (mm): 6 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 30 | H max. (mm): 65
ST42-CN8Ød (mm): 8 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 34 | H max. (mm): 65
ST42-CN10Ød (mm): 10 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 37 | H max. (mm): 65
ST42-CN12Ød (mm): 12 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 37 | H max. (mm): 65
ST42-CN16Ød (mm): 16 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 46 | H max. (mm): 65
ST42-CN20Ød (mm): 20 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 52 | H max. (mm): 65
ST42-CN25Ød (mm): 25 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 55 | H max. (mm): 65
ST42-CN32Ød (mm): 32 | ØD (mm): 42 | L (mm): 83 | H min. (mm): 62 | H max. (mm): 65
