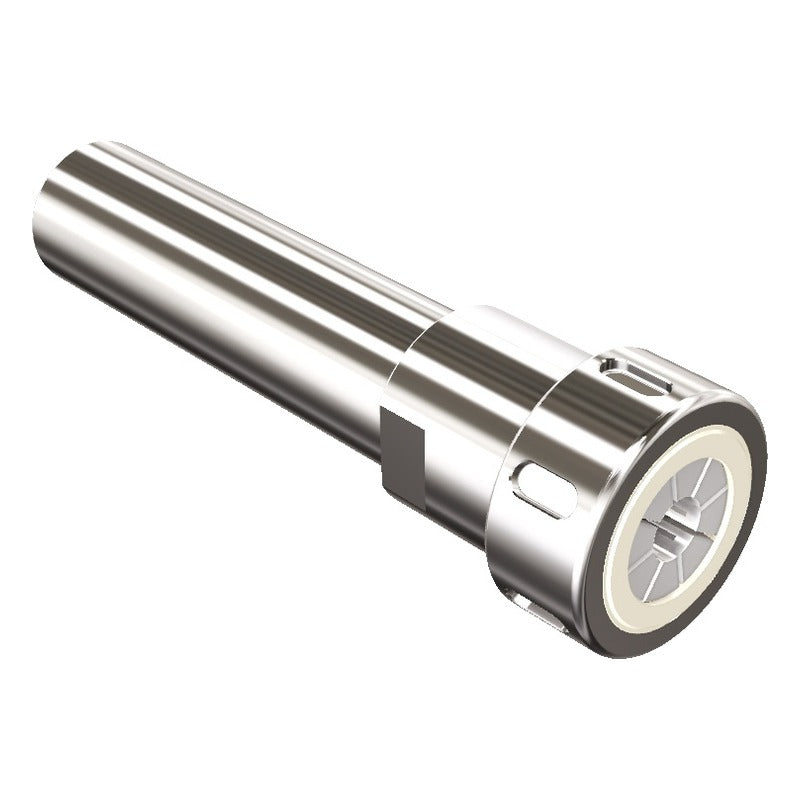

Samchully Straight Shank ER Collet Chuck

Samchully Straight Shank ER Collet Chuck

ER Collet Chuck with straight cylindrical shank, available in ST16, ST20, ST25, ST32 sizes.

Key features

  • Eccentric collet race for greater accuracy and faster set-up
  • Ball bearing nut on ER16 and larger
  • Specially tempered steel and coating
ST16-ER11-120M Shank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 19 | L (mm): 120 | H (mm): 33 | Application: Machining center
ST16-ER11-120T Shank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 19 | L (mm): 120 | H (mm): 33 | Application: Turning center
ST16-ER16-150M Shank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Machining center
ST16-ER16-150T Shank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Turning center
ST20-ER16-150M Shank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Machining center
ST20-ER16-150T Shank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Turning center
ST20-ER20-150M Shank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Machining center
ST20-ER20-150T Shank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Turning center
ST25-ER16-150M Shank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Machining center
ST25-ER16-150T Shank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Turning center
ST25-ER20-150M Shank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Machining center
ST25-ER20-150T Shank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Turning center
ST32-ER20-150M Shank: ST32 | Ød (mm): 1.0~13.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Machining center
ST32-ER20-150T Shank: ST32 | Ød (mm): 1.0~13.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Turning center
ST32-ER32-165M Shank: ST32 | Ød (mm): 2.0~20.0 | ØD1 (mm): 32 | ØD (mm): 50 | L (mm): 165 | H (mm): 60 | Application: Machining center
ST32-ER32-165T Shank: ST32 | Ød (mm): 2.0~20.0 | ØD1 (mm): 32 | ØD (mm): 50 | L (mm): 165 | H (mm): 60 | Application: Turning center
Collet ChucksSamchully
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Straight Shank ER Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (16)

ST16-ER11-120M, ST16-ER11-120T, ST16-ER16-150M, ST16-ER16-150T, ST20-ER16-150M, ST20-ER16-150T, ST20-ER20-150M, ST20-ER20-150T, ST25-ER16-150M, ST25-ER16-150T + 6 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST16-ER11-120MShank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 19 | L (mm): 120 | H (mm): 33 | Application: Machining center
ST16-ER11-120TShank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 19 | L (mm): 120 | H (mm): 33 | Application: Turning center
ST16-ER16-150MShank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Machining center
ST16-ER16-150TShank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Turning center
ST20-ER16-150MShank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Machining center
ST20-ER16-150TShank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Turning center
ST20-ER20-150MShank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Machining center
ST20-ER20-150TShank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Turning center
ST25-ER16-150MShank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Machining center
ST25-ER16-150TShank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 30 | L (mm): 150 | H (mm): 34.5 | Application: Turning center
ST25-ER20-150MShank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Machining center
ST25-ER20-150TShank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Turning center
ST32-ER20-150MShank: ST32 | Ød (mm): 1.0~13.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Machining center
ST32-ER20-150TShank: ST32 | Ød (mm): 1.0~13.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 150 | H (mm): 49 | Application: Turning center
ST32-ER32-165MShank: ST32 | Ød (mm): 2.0~20.0 | ØD1 (mm): 32 | ØD (mm): 50 | L (mm): 165 | H (mm): 60 | Application: Machining center
ST32-ER32-165TShank: ST32 | Ød (mm): 2.0~20.0 | ØD1 (mm): 32 | ØD (mm): 50 | L (mm): 165 | H (mm): 60 | Application: Turning center
