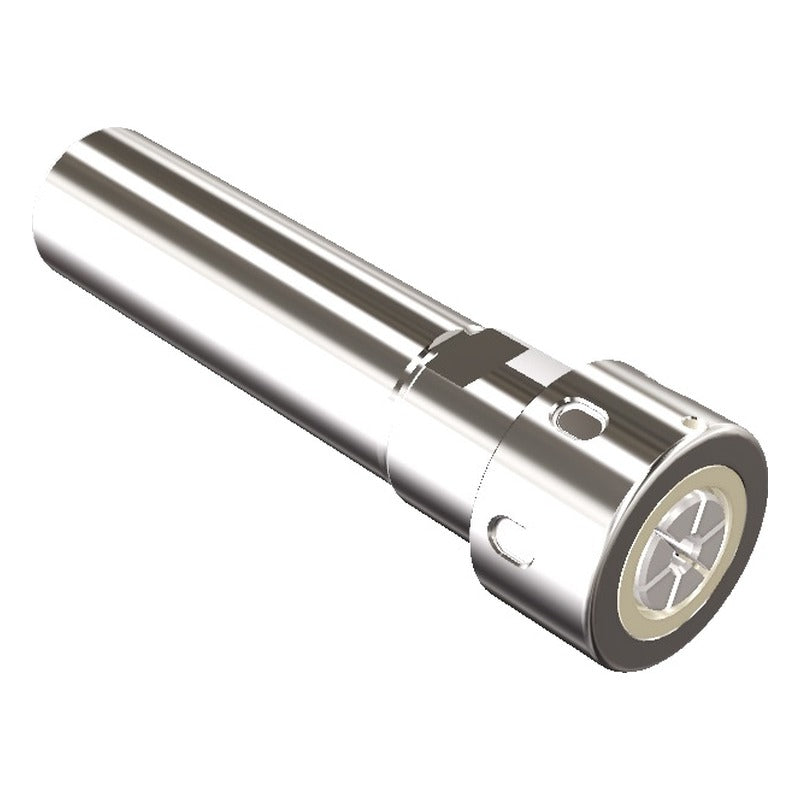

Samchully Straight Shank SK Collet Chuck

Samchully Straight Shank SK Collet Chuck

SK Collet Chuck with straight cylindrical shank, available in ST20, ST32, ST42 sizes.

Key features

  • SK collets give double the gripping strength of ER collets
  • Run-out within 0.003 mm at 4D
  • Ball bearing nut included
ST20-SK06-100 Shank: ST20 | Ød (mm): 0.7~6.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 100 | H (mm): 21~35
ST20-SK06-120 Shank: ST20 | Ød (mm): 0.7~6.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 120 | H (mm): 21~35
ST20-SK08-100 Shank: ST20 | Ød (mm): 1.75~8.0 | ØD1 (mm): 20 | ØD (mm): 25 | L (mm): 100 | H (mm): 42
ST20-SK08-120 Shank: ST20 | Ød (mm): 1.75~8.0 | ØD1 (mm): 20 | ØD (mm): 25 | L (mm): 120 | H (mm): 42
ST20-SK10-100 Shank: ST20 | Ød (mm): 1.75~10.0 | ØD1 (mm): 20 | ØD (mm): 28 | L (mm): 100 | H (mm): 30~50
ST20-SK10-120 Shank: ST20 | Ød (mm): 1.75~10.0 | ØD1 (mm): 20 | ØD (mm): 28 | L (mm): 120 | H (mm): 30~50
ST32-SK06-120 Shank: ST32 | Ød (mm): 0.7~6.0 | ØD1 (mm): 32 | ØD (mm): 22 | L (mm): 120 | H (mm): 21~35
ST32-SK06-140 Shank: ST32 | Ød (mm): 0.7~6.0 | ØD1 (mm): 32 | ØD (mm): 22 | L (mm): 140 | H (mm): 21~35
ST32-SK06-170 Shank: ST32 | Ød (mm): 0.7~6.0 | ØD1 (mm): 32 | ØD (mm): 22 | L (mm): 170 | H (mm): 21~35
ST32-SK08-120 Shank: ST32 | Ød (mm): 1.75~8.0 | ØD1 (mm): 32 | ØD (mm): 25 | L (mm): 120 | H (mm): 42
ST32-SK08-150 Shank: ST32 | Ød (mm): 1.75~8.0 | ØD1 (mm): 32 | ØD (mm): 25 | L (mm): 150 | H (mm): 42
ST32-SK08-180 Shank: ST32 | Ød (mm): 1.75~8.0 | ØD1 (mm): 32 | ØD (mm): 25 | L (mm): 180 | H (mm): 42
ST32-SK10-120 Shank: ST32 | Ød (mm): 1.75~10.0 | ØD1 (mm): 32 | ØD (mm): 28 | L (mm): 120 | H (mm): 30~50
ST32-SK10-150 Shank: ST32 | Ød (mm): 1.75~10.0 | ØD1 (mm): 32 | ØD (mm): 28 | L (mm): 150 | H (mm): 30~50
ST32-SK10-180 Shank: ST32 | Ød (mm): 1.75~10.0 | ØD1 (mm): 32 | ØD (mm): 28 | L (mm): 180 | H (mm): 30~50
ST32-SK13-120 Shank: ST32 | Ød (mm): 2.75~13.0 | ØD1 (mm): 32 | ØD (mm): 33 | L (mm): 120 | H (mm): 31~65
ST32-SK13-150 Shank: ST32 | Ød (mm): 2.75~13.0 | ØD1 (mm): 32 | ØD (mm): 33 | L (mm): 150 | H (mm): 31~65
ST32-SK13-180 Shank: ST32 | Ød (mm): 2.75~13.0 | ØD1 (mm): 32 | ØD (mm): 33 | L (mm): 180 | H (mm): 31~65
ST32-SK16-120 Shank: ST32 | Ød (mm): 2.75~16.0 | ØD1 (mm): 32 | ØD (mm): 40 | L (mm): 120
ST32-SK16-150 Shank: ST32 | Ød (mm): 2.75~16.0 | ØD1 (mm): 32 | ØD (mm): 40 | L (mm): 150
ST32-SK16-180 Shank: ST32 | Ød (mm): 2.75~16.0 | ØD1 (mm): 32 | ØD (mm): 40 | L (mm): 180
ST32-SK25-150 Shank: ST32 | Ød (mm): 7.5~25.4 | ØD1 (mm): 32 | ØD (mm): 55 | L (mm): 150
ST42-SK08-150 Shank: ST42 | Ød (mm): 1.75~8.0 | ØD1 (mm): 42 | ØD (mm): 25 | L (mm): 150
ST42-SK08-180 Shank: ST42 | Ød (mm): 1.75~8.0 | ØD1 (mm): 42 | ØD (mm): 25 | L (mm): 180
ST42-SK10-150 Shank: ST42 | Ød (mm): 1.75~10.0 | ØD1 (mm): 42 | ØD (mm): 28 | L (mm): 150
ST42-SK10-180 Shank: ST42 | Ød (mm): 1.75~10.0 | ØD1 (mm): 42 | ØD (mm): 28 | L (mm): 180
ST42-SK13-150 Shank: ST42 | Ød (mm): 2.75~13.0 | ØD1 (mm): 42 | ØD (mm): 33 | L (mm): 150
ST42-SK13-180 Shank: ST42 | Ød (mm): 2.75~13.0 | ØD1 (mm): 42 | ØD (mm): 33 | L (mm): 180
ST42-SK16-150 Shank: ST42 | Ød (mm): 2.75~16.0 | ØD1 (mm): 42 | ØD (mm): 40 | L (mm): 150
ST42-SK16-180 Shank: ST42 | Ød (mm): 2.75~16.0 | ØD1 (mm): 42 | ØD (mm): 40 | L (mm): 180
ST42-SK25-170 Shank: ST42 | Ød (mm): 7.5~25.4 | ØD1 (mm): 42 | ØD (mm): 55 | L (mm): 170
Collet ChucksSamchully
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Straight Shank SK Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (31)

ST20-SK06-100, ST20-SK06-120, ST20-SK08-100, ST20-SK08-120, ST20-SK10-100, ST20-SK10-120, ST32-SK06-120, ST32-SK06-140, ST32-SK06-170, ST32-SK08-120 + 21 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
