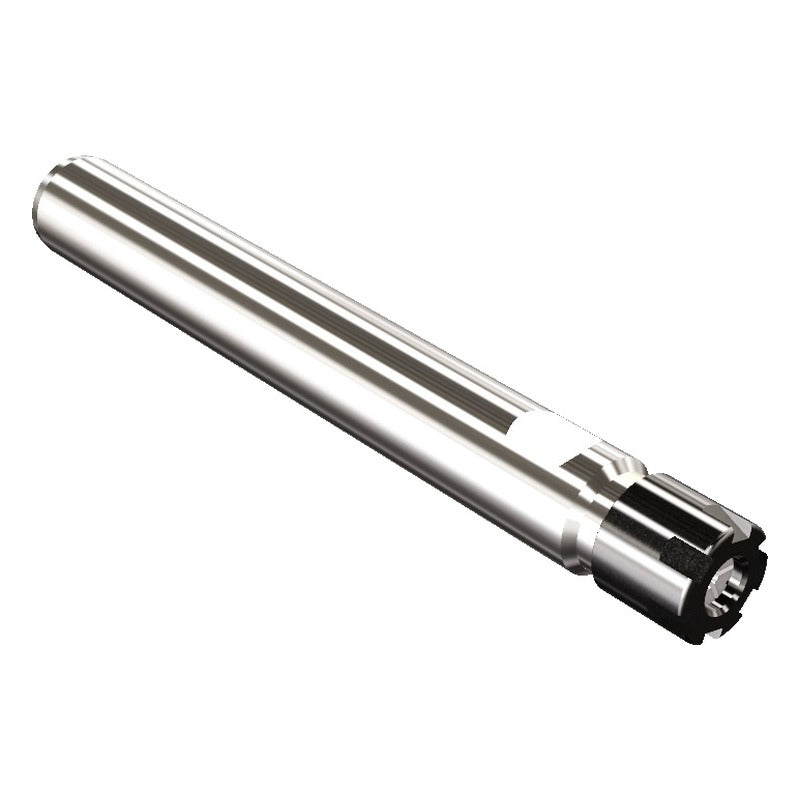

Samchully Straight Shank Slim ER Collet Chuck

Samchully Straight Shank Slim ER Collet Chuck

Slim ER Collet Chuck with straight cylindrical shank, available in ST12, ST16, ST20, ST25, ST32 sizes.

Key features

  • For machining centers
  • Not compatible with the standard ER nut
  • Eccentric collet race for greater accuracy and faster set-up
ST12-ER08S-80M Shank: ST12 | Ød (mm): 0.5~5.0 | ØD1 (mm): 12 | ØD (mm): 12 | L (mm): 80
ST16-ER11S-100M Shank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 16 | L (mm): 100 | H (mm): 33
ST16-ER11S-150M Shank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 16 | L (mm): 150 | H (mm): 33
ST16-ER16S-100M Shank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 22 | L (mm): 100 | H (mm): 44.5
ST16-ER16S-150M Shank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 22 | L (mm): 150 | H (mm): 44.5
ST20-ER16S-100M Shank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 100 | H (mm): 44.5
ST20-ER16S-150M Shank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 150 | H (mm): 44.5
ST20-ER16S-200M Shank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 200 | H (mm): 44.5
ST20-ER20S-100M Shank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 28 | L (mm): 100 | H (mm): 49
ST20-ER20S-150M Shank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 28 | L (mm): 150 | H (mm): 49
ST25-ER16S-100M Shank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 22 | L (mm): 100 | H (mm): 44.5
ST25-ER16S-150M Shank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 22 | L (mm): 150 | H (mm): 44.5
ST25-ER20S-100M Shank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 28 | L (mm): 100 | H (mm): 49
ST25-ER20S-150M Shank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 28 | L (mm): 150 | H (mm): 49
ST25-ER20S-200M Shank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 28 | L (mm): 200 | H (mm): 49
ST25-ER25S-100M Shank: ST25 | Ød (mm): 1.0~16.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 100 | H (mm): 50
ST25-ER25S-150M Shank: ST25 | Ød (mm): 1.0~16.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 150 | H (mm): 50
ST25-ER25S-200M Shank: ST25 | Ød (mm): 1.0~16.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 200 | H (mm): 50
ST32-ER25S-120M Shank: ST32 | Ød (mm): 1.0~16.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 120 | H (mm): 50
ST32-ER25S-150M Shank: ST32 | Ød (mm): 1.0~16.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 150 | H (mm): 50
Collet ChucksSamchully
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Straight Shank Slim ER Collet Chuck

Brand Samchully·Collet Chucks

Available part numbers (20)

ST12-ER08S-80M, ST16-ER11S-100M, ST16-ER11S-150M, ST16-ER16S-100M, ST16-ER16S-150M, ST20-ER16S-100M, ST20-ER16S-150M, ST20-ER16S-200M, ST20-ER20S-100M, ST20-ER20S-150M + 10 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST12-ER08S-80MShank: ST12 | Ød (mm): 0.5~5.0 | ØD1 (mm): 12 | ØD (mm): 12 | L (mm): 80
ST16-ER11S-100MShank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 16 | L (mm): 100 | H (mm): 33
ST16-ER11S-150MShank: ST16 | Ød (mm): 1.0~7.0 | ØD1 (mm): 16 | ØD (mm): 16 | L (mm): 150 | H (mm): 33
ST16-ER16S-100MShank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 22 | L (mm): 100 | H (mm): 44.5
ST16-ER16S-150MShank: ST16 | Ød (mm): 1.0~10.0 | ØD1 (mm): 16 | ØD (mm): 22 | L (mm): 150 | H (mm): 44.5
ST20-ER16S-100MShank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 100 | H (mm): 44.5
ST20-ER16S-150MShank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 150 | H (mm): 44.5
ST20-ER16S-200MShank: ST20 | Ød (mm): 1.0~10.0 | ØD1 (mm): 20 | ØD (mm): 22 | L (mm): 200 | H (mm): 44.5
ST20-ER20S-100MShank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 28 | L (mm): 100 | H (mm): 49
ST20-ER20S-150MShank: ST20 | Ød (mm): 1.0~13.0 | ØD1 (mm): 20 | ØD (mm): 28 | L (mm): 150 | H (mm): 49
ST25-ER16S-100MShank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 22 | L (mm): 100 | H (mm): 44.5
ST25-ER16S-150MShank: ST25 | Ød (mm): 1.0~10.0 | ØD1 (mm): 25 | ØD (mm): 22 | L (mm): 150 | H (mm): 44.5
ST25-ER20S-100MShank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 28 | L (mm): 100 | H (mm): 49
ST25-ER20S-150MShank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 28 | L (mm): 150 | H (mm): 49
ST25-ER20S-200MShank: ST25 | Ød (mm): 1.0~13.0 | ØD1 (mm): 25 | ØD (mm): 28 | L (mm): 200 | H (mm): 49
ST25-ER25S-100MShank: ST25 | Ød (mm): 1.0~16.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 100 | H (mm): 50
ST25-ER25S-150MShank: ST25 | Ød (mm): 1.0~16.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 150 | H (mm): 50
ST25-ER25S-200MShank: ST25 | Ød (mm): 1.0~16.0 | ØD1 (mm): 25 | ØD (mm): 35 | L (mm): 200 | H (mm): 50
ST32-ER25S-120MShank: ST32 | Ød (mm): 1.0~16.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 120 | H (mm): 50
ST32-ER25S-150MShank: ST32 | Ød (mm): 1.0~16.0 | ØD1 (mm): 32 | ØD (mm): 35 | L (mm): 150 | H (mm): 50
