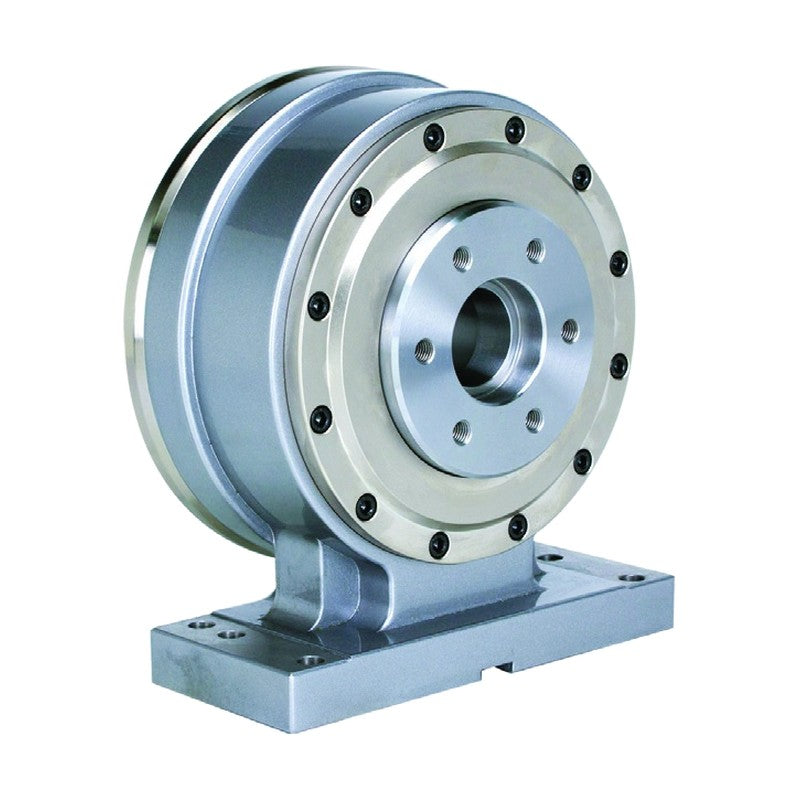

Samchully Tail Spindle (Air Clamp Type)

Samchully Tail Spindle (Air Clamp Type)

Air-clamp tail spindles that support the opposite end of trunnion tables, jigs or tombstones mounted on matching NC rotary tables.

Key features

  • Rigid support for trunnion tables or tombstones
  • Brake clamping force matched to the rotary table
  • Bearing design for smooth, accurate indexing
  • Pneumatic clamp 5~7 kgf/cm²
  • Rotary joint option (5 or 8 ports)
17SP-A Applicable Rotary Table: S-170 | Spindle Dia. (mm): Ø111.5 | Center Height (mm): 140 | Spindle Internal Dia. (mm): Ø50 | Spindle Through Hole Dia. (mm): Ø40 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Weight (kg): 26
20SP-MA Applicable Rotary Table: S-200 | Spindle Dia. (mm): Ø135 | Center Height (mm): 170 | Spindle Internal Dia. (mm): Ø64 | Spindle Through Hole Dia. (mm): Ø45 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 390 | Weight (kg): 40
25SP-MA Applicable Rotary Table: S-250 | Spindle Dia. (mm): Ø170 | Center Height (mm): 185 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 600 | Weight (kg): 50
32SP-MA Applicable Rotary Table: S-320 | Spindle Dia. (mm): Ø170 | Center Height (mm): 225 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 600 | Weight (kg): 64
TailstocksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Tail Spindle (Air Clamp Type)

Brand Samchully·Tailstocks

Available part numbers (4)

17SP-A, 20SP-MA, 25SP-MA, 32SP-MA

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
17SP-AApplicable Rotary Table: S-170 | Spindle Dia. (mm): Ø111.5 | Center Height (mm): 140 | Spindle Internal Dia. (mm): Ø50 | Spindle Through Hole Dia. (mm): Ø40 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Weight (kg): 26
20SP-MAApplicable Rotary Table: S-200 | Spindle Dia. (mm): Ø135 | Center Height (mm): 170 | Spindle Internal Dia. (mm): Ø64 | Spindle Through Hole Dia. (mm): Ø45 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 390 | Weight (kg): 40
25SP-MAApplicable Rotary Table: S-250 | Spindle Dia. (mm): Ø170 | Center Height (mm): 185 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 600 | Weight (kg): 50
32SP-MAApplicable Rotary Table: S-320 | Spindle Dia. (mm): Ø170 | Center Height (mm): 225 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 600 | Weight (kg): 64
