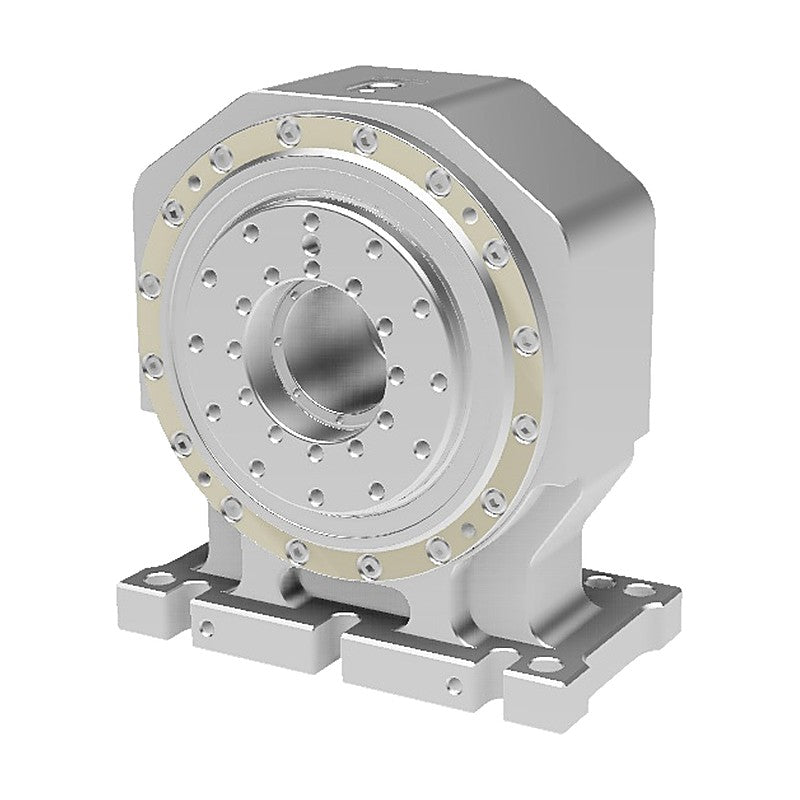

Samchully Tail Spindle (Hydraulic Clamp Type)

Samchully Tail Spindle (Hydraulic Clamp Type)

Hydraulic-clamp tail spindles that support work and jigs on NC rotary tables, sized to match S and HRS series tables.

Key features

  • Supports work and jig weight during rotation
  • Hydraulic clamp 25~35 kgf/cm²
  • Rotary joint option (5 or 8 ports)
20SP-MH Applicable Rotary Table: S-200 | Spindle Dia. (mm): Ø135 | Center Height (mm): 170 | Spindle Internal Dia. (mm): Ø64 | Spindle Through Hole Dia. (mm): Ø45 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 480 | Weight (kg): 40
25SP-MH Applicable Rotary Table: S-250 | Spindle Dia. (mm): Ø170 | Center Height (mm): 185 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1100 | Weight (kg): 50
32SP-MH Applicable Rotary Table: S-320 | Spindle Dia. (mm): Ø170 | Center Height (mm): 225 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1100 | Weight (kg): 64
43SP-H Applicable Rotary Table: HRS-430 | Spindle Dia. (mm): Ø320 | Center Height (mm): 283 | Spindle Internal Dia. (mm): Ø40 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Weight (kg): 210
TailstocksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Tail Spindle (Hydraulic Clamp Type)

Brand Samchully·Tailstocks

Available part numbers (4)

20SP-MH, 25SP-MH, 32SP-MH, 43SP-H

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
20SP-MHApplicable Rotary Table: S-200 | Spindle Dia. (mm): Ø135 | Center Height (mm): 170 | Spindle Internal Dia. (mm): Ø64 | Spindle Through Hole Dia. (mm): Ø45 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 480 | Weight (kg): 40
25SP-MHApplicable Rotary Table: S-250 | Spindle Dia. (mm): Ø170 | Center Height (mm): 185 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1100 | Weight (kg): 50
32SP-MHApplicable Rotary Table: S-320 | Spindle Dia. (mm): Ø170 | Center Height (mm): 225 | Spindle Internal Dia. (mm): Ø87 | Spindle Through Hole Dia. (mm): Ø70 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1100 | Weight (kg): 64
43SP-HApplicable Rotary Table: HRS-430 | Spindle Dia. (mm): Ø320 | Center Height (mm): 283 | Spindle Internal Dia. (mm): Ø40 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Weight (kg): 210
