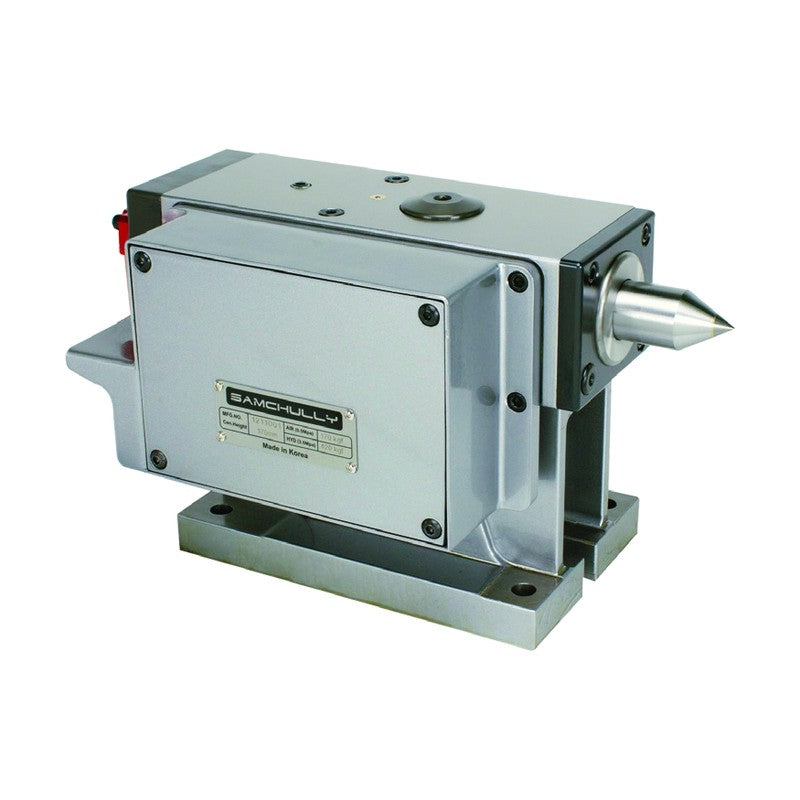

Samchully Tail Stock (Air / Hydraulic Type) TS-AH Series

Samchully Tail Stock (Air / Hydraulic Type) TS-AH Series

Air or hydraulic operated tail stocks for NC rotary tables, suitable for automation systems (hydraulic clamp max. 35 bar).

Key features

  • Hydraulic or pneumatic operation
  • Suitable for automation systems
  • Hydraulic clamp max. 35 bar
  • Forward, backward and clamp input ports PT1/4
17TS-AH Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 140 | Stroke (mm): 30 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 100 | Piston Force Hydraulic (kgf): 200 | Weight (kg): 28.5
20TS-AH Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 170 | Stroke (mm): 60 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 170 | Piston Force Hydraulic (kgf): 420 | Weight (kg): 30
25TS-AH Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 185 | Stroke (mm): 60 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 170 | Piston Force Hydraulic (kgf): 420 | Weight (kg): 32
32TS-AH Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 225 | Stroke (mm): 60 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 170 | Piston Force Hydraulic (kgf): 420 | Weight (kg): 33
TailstocksSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Tail Stock (Air / Hydraulic Type) TS-AH Series

Brand Samchully·Tailstocks

Available part numbers (4)

17TS-AH, 20TS-AH, 25TS-AH, 32TS-AH

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
17TS-AHCenter Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 140 | Stroke (mm): 30 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 100 | Piston Force Hydraulic (kgf): 200 | Weight (kg): 28.5
20TS-AHCenter Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 170 | Stroke (mm): 60 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 170 | Piston Force Hydraulic (kgf): 420 | Weight (kg): 30
25TS-AHCenter Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 185 | Stroke (mm): 60 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 170 | Piston Force Hydraulic (kgf): 420 | Weight (kg): 32
32TS-AHCenter Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 225 | Stroke (mm): 60 | Hydraulic Pressure: 25~35 kgf/cm² | Air Pressure: 5~7 kgf/cm² | Piston Force Air (kgf): 170 | Piston Force Hydraulic (kgf): 420 | Weight (kg): 33
