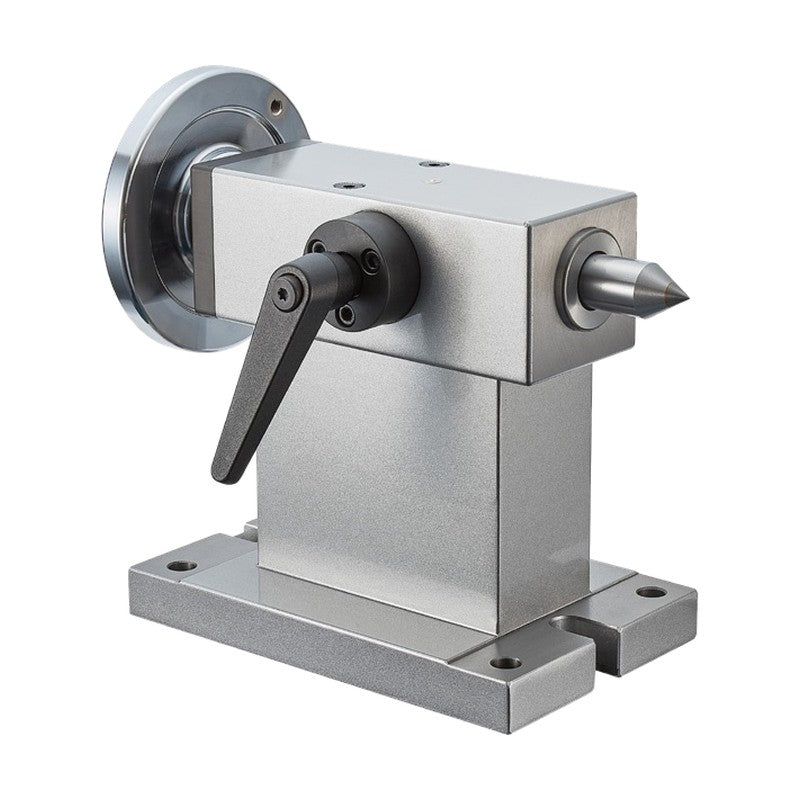

Samchully Tail Stock (Manual Type) TS Series

Samchully Tail Stock (Manual Type) TS Series

Manual tail stocks with Morse taper center that support the main axis of NC rotary tables, with clamp lever usable from either side.

Key features

  • Supports center of main rotary axis
  • Reversible clamp lever usable from both sides
  • Morse taper center MT2 to MT4
  • Center heights 120 to 410 mm to match rotary tables
12TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø18.03 | Center Taper: MT2 | Center Height (mm): 120 | Stroke (mm): 30 | Weight (kg): 9
17TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø18.03 | Center Taper: MT2 | Center Height (mm): 140 | Stroke (mm): 30 | Weight (kg): 10
20TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 170 | Stroke (mm): 50 | Weight (kg): 19
25TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 185 | Stroke (mm): 50 | Weight (kg): 20
32TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 225 | Stroke (mm): 50 | Weight (kg): 21
43TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 283 | Stroke (mm): 70 | Weight (kg): 70
51TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 335 | Stroke (mm): 70 | Weight (kg): 95
65TS Operation: Manual (reversible clamp lever) | Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 410 | Stroke (mm): 70 | Weight (kg): 135
TailstocksSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Tail Stock (Manual Type) TS Series

Brand Samchully·Tailstocks

Available part numbers (8)

12TS, 17TS, 20TS, 25TS, 32TS, 43TS, 51TS, 65TS

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
12TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø18.03 | Center Taper: MT2 | Center Height (mm): 120 | Stroke (mm): 30 | Weight (kg): 9
17TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø18.03 | Center Taper: MT2 | Center Height (mm): 140 | Stroke (mm): 30 | Weight (kg): 10
20TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 170 | Stroke (mm): 50 | Weight (kg): 19
25TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 185 | Stroke (mm): 50 | Weight (kg): 20
32TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø24.1 | Center Taper: MT3 | Center Height (mm): 225 | Stroke (mm): 50 | Weight (kg): 21
43TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 283 | Stroke (mm): 70 | Weight (kg): 70
51TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 335 | Stroke (mm): 70 | Weight (kg): 95
65TSOperation: Manual (reversible clamp lever) | Center Diameter (mm): Ø31.6 | Center Taper: MT4 | Center Height (mm): 410 | Stroke (mm): 70 | Weight (kg): 135
