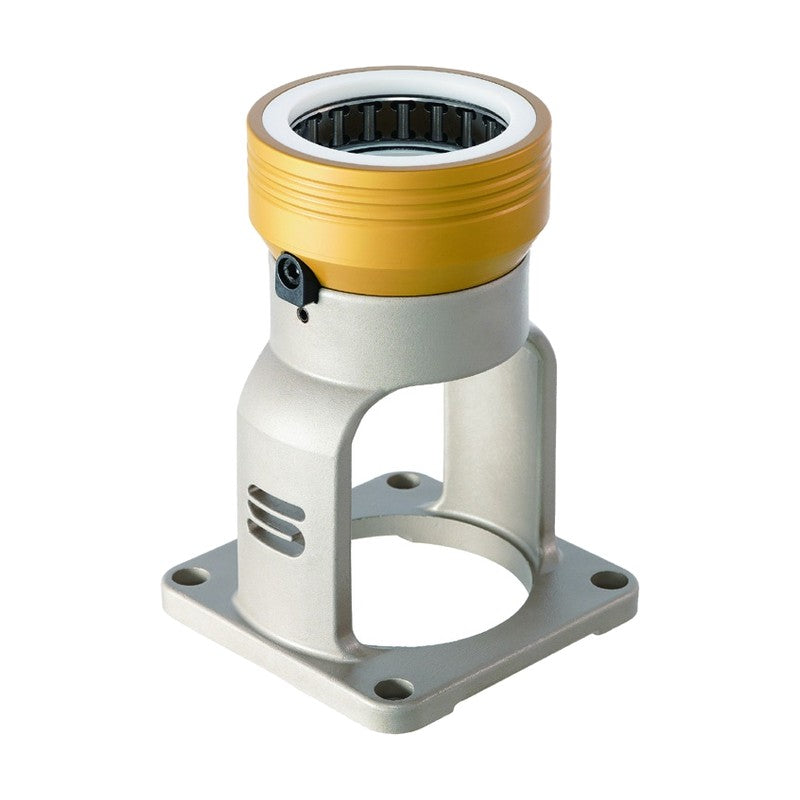

Samchully Tool Clamper TCP

Bench tool clamper with replaceable adapters for HSK and PSC tool holders using a two-way clutch needle roller clamping system.

Key features

Replaceable adapters
Common use for HSK and PSC
Two-way clutch needle roller clamping
Must be fixed to the table with four bolts (not included)

TCP40-H032		HSK size: 32 \| PSC size: 32 \| ØC (mm): 76 \| H (mm): 165 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A032 (1 included)
TCP40-H040		HSK size: 40 \| PSC size: 40 \| ØC (mm): 76 \| H (mm): 165 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A040 (1 included)
TCP40-H050		HSK size: 50 \| PSC size: 50 \| ØC (mm): 76 \| H (mm): 165 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A050 (1 included)
TCP40-H063		HSK size: 63 \| PSC size: 63 \| ØC (mm): 87 \| H (mm): 172 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A063 (1 included)
TCP50-H080		HSK size: 80 \| PSC size: 80 \| ØC (mm): 114 \| H (mm): 215 \| Base W (mm): 160 \| Bolt pitch P (mm): 130 \| Mounting hole ØM (mm): 9 (M8) \| Adapter: TCP50-A080 (1 included)
TCP50-H100		HSK size: 100 \| ØC (mm): 124 \| H (mm): 219 \| Base W (mm): 160 \| Bolt pitch P (mm): 130 \| Mounting hole ØM (mm): 9 (M8) \| Adapter: TCP50-A100 (1 included)
TCP40-A032		Part: Replacement adapter \| For tool clamper: TCP40-H032 \| HSK size: 32 \| PSC size: 32
TCP40-A040		Part: Replacement adapter \| For tool clamper: TCP40-H040 \| HSK size: 40 \| PSC size: 40
TCP40-A050		Part: Replacement adapter \| For tool clamper: TCP40-H050 \| HSK size: 50 \| PSC size: 50
TCP40-A063		Part: Replacement adapter \| For tool clamper: TCP40-H063 \| HSK size: 63 \| PSC size: 63
TCP50-A080		Part: Replacement adapter \| For tool clamper: TCP50-H080 \| HSK size: 80 \| PSC size: 80
TCP50-A100		Part: Replacement adapter \| For tool clamper: TCP50-H100 \| HSK size: 100

Tool ClampersSamchully

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Tool Clamper TCP

Brand Samchully·Tool Clampers

Available part numbers (12)

TCP40-H032, TCP40-H040, TCP40-H050, TCP40-H063, TCP50-H080, TCP50-H100, TCP40-A032, TCP40-A040, TCP40-A050, TCP40-A063 + 2 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	TCP40-H032	HSK size: 32 \| PSC size: 32 \| ØC (mm): 76 \| H (mm): 165 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A032 (1 included)
	TCP40-H040	HSK size: 40 \| PSC size: 40 \| ØC (mm): 76 \| H (mm): 165 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A040 (1 included)
	TCP40-H050	HSK size: 50 \| PSC size: 50 \| ØC (mm): 76 \| H (mm): 165 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A050 (1 included)
	TCP40-H063	HSK size: 63 \| PSC size: 63 \| ØC (mm): 87 \| H (mm): 172 \| Base W (mm): 110 \| Bolt pitch P (mm): 90 \| Mounting hole ØM (mm): 7 (M6) \| Adapter: TCP40-A063 (1 included)
	TCP50-H080	HSK size: 80 \| PSC size: 80 \| ØC (mm): 114 \| H (mm): 215 \| Base W (mm): 160 \| Bolt pitch P (mm): 130 \| Mounting hole ØM (mm): 9 (M8) \| Adapter: TCP50-A080 (1 included)
	TCP50-H100	HSK size: 100 \| ØC (mm): 124 \| H (mm): 219 \| Base W (mm): 160 \| Bolt pitch P (mm): 130 \| Mounting hole ØM (mm): 9 (M8) \| Adapter: TCP50-A100 (1 included)
	TCP40-A032	Part: Replacement adapter \| For tool clamper: TCP40-H032 \| HSK size: 32 \| PSC size: 32
	TCP40-A040	Part: Replacement adapter \| For tool clamper: TCP40-H040 \| HSK size: 40 \| PSC size: 40
	TCP40-A050	Part: Replacement adapter \| For tool clamper: TCP40-H050 \| HSK size: 50 \| PSC size: 50
	TCP40-A063	Part: Replacement adapter \| For tool clamper: TCP40-H063 \| HSK size: 63 \| PSC size: 63
	TCP50-A080	Part: Replacement adapter \| For tool clamper: TCP50-H080 \| HSK size: 80 \| PSC size: 80
	TCP50-A100	Part: Replacement adapter \| For tool clamper: TCP50-H100 \| HSK size: 100
