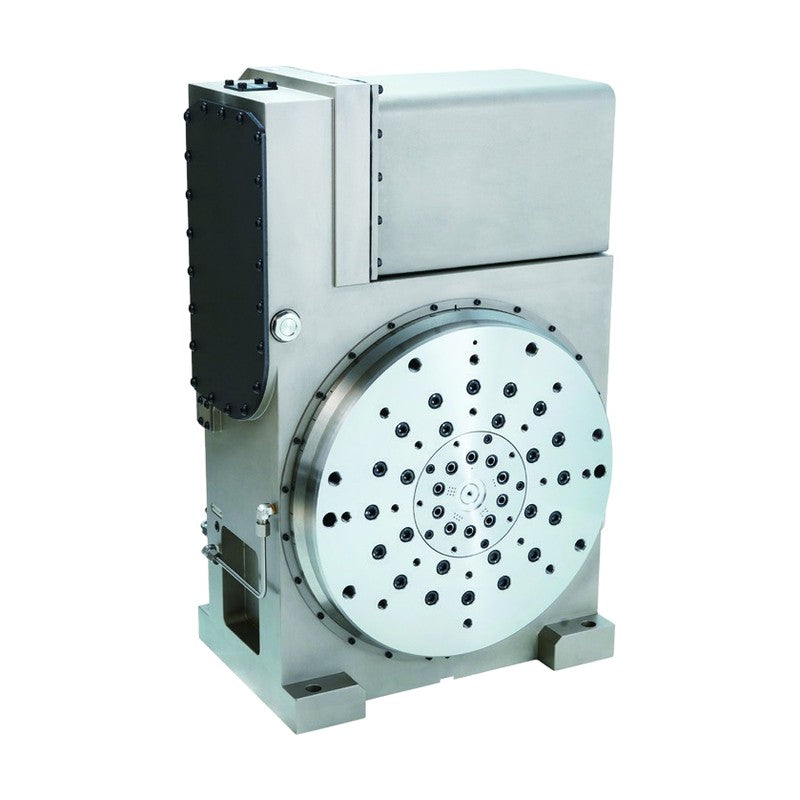

Samchully Top Mounted Motor Hydraulic NC Rotary Table HRSA-400NF22

Samchully Top Mounted Motor Hydraulic NC Rotary Table HRSA-400NF22

Ø400 mm 4th-axis hydraulic NC rotary table with top mounted FANUC motor and built-in rotary joint ports.

Key features

  • Top mounted motor
  • Hydraulic clamp 25~35 kgf/cm²
  • Vertical and horizontal mounting
  • Compact, extremely rigid body
HRSA-400NF22 Table Dia. (mm): Ø400 | Center Height (mm): 255 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3500 | Max. Spindle Speed (min-1): 11.1 (motor 2000 min-1) | Gear Ratio: 1/180 | Indexing Accuracy (sec): 25 | Repeatability (sec): 5 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 430 | Allowable Work Inertia (kgm2): 8.8 | Allowable Load Vertical (kg): 450
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Top Mounted Motor Hydraulic NC Rotary Table HRSA-400NF22

Brand Samchully·NC Rotary Tables

Available part numbers (1)

HRSA-400NF22

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRSA-400NF22Table Dia. (mm): Ø400 | Center Height (mm): 255 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3500 | Max. Spindle Speed (min-1): 11.1 (motor 2000 min-1) | Gear Ratio: 1/180 | Indexing Accuracy (sec): 25 | Repeatability (sec): 5 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 430 | Allowable Work Inertia (kgm2): 8.8 | Allowable Load Vertical (kg): 450
