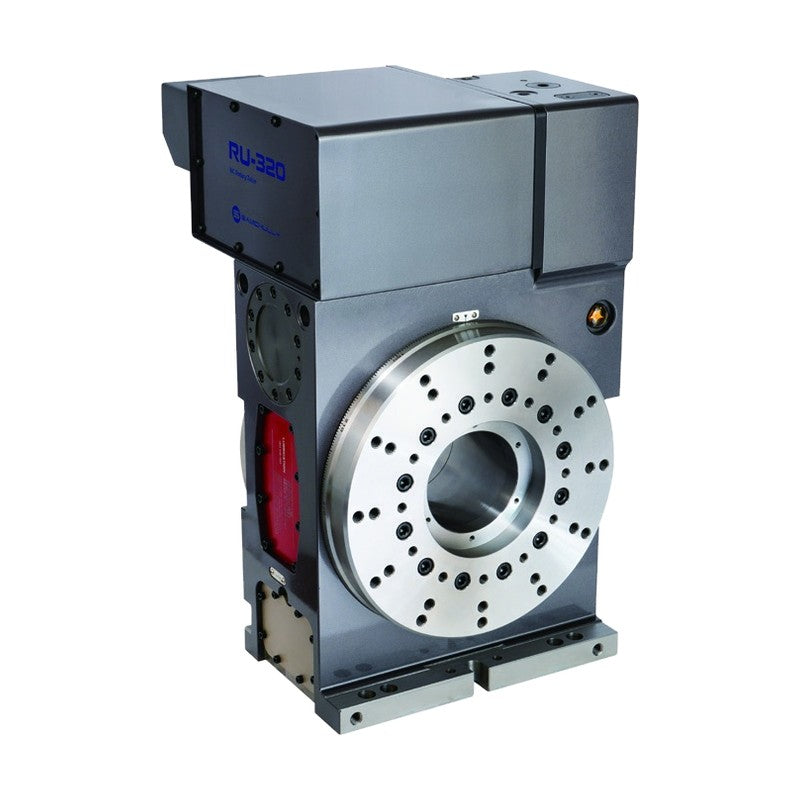

Samchully Top Mounted Motor Zero Backlash NC Rotary Table RU / RUH Series (FANUC Motor)

Samchully Top Mounted Motor Zero Backlash NC Rotary Table RU / RUH Series (FANUC Motor)

Ø314 mm roller gear cam NC rotary tables with top mounted FANUC motor, optimized for horizontal machines; RU with pneumatic clamp, RUH with hydraulic clamp.

Key features

  • Top mounted motor
  • Roller gear cam drive, zero backlash
  • Optimized for horizontal machining centers
  • Pneumatic (RU) or hydraulic (RUH) clamp
RU-320F8 Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 200 | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Vertical (kg): 180
RUH-324F8 Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 200 | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Vertical (kg): 180
NC Rotary TablesSamchully
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Top Mounted Motor Zero Backlash NC Rotary Table RU / RUH Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (2)

RU-320F8, RUH-324F8

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RU-320F8Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 200 | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Vertical (kg): 180
RUH-324F8Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 200 | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Vertical (kg): 180
