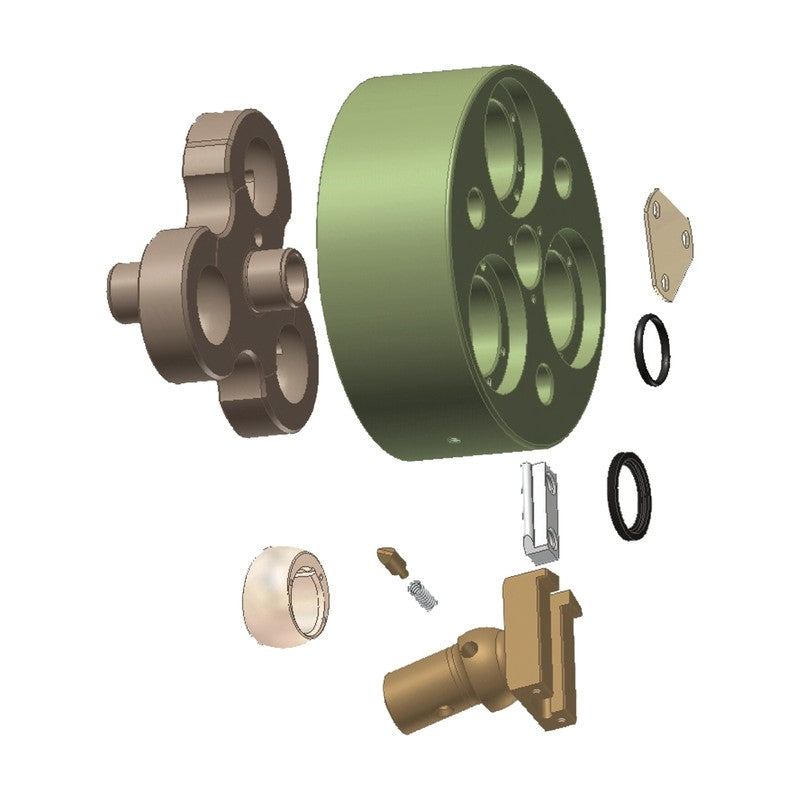

Samchully Universal Ball-Lock Power Chuck PBL

Samchully Universal Ball-Lock Power Chuck PBL

Ball-lock power chuck for O.D. or I.D. clamping of castings or forgings, in centralizing or compensating versions.

Key features

  • Grips on taper up to 10 degrees
  • Jaws pivot up to 5 degrees to grip uneven surfaces
PBL-06 Max. Clamping Force (kgf): 6,600 | Max. Drawbar Pull (kgf): 2,200 | Jaw Stroke Dia. (mm): 7.9 | Plunger Stroke (mm): 11.3 | Clamping Range Outside Dia. (mm): 12.7~120 | Clamping Range Inside Dia. (mm): 70~152 | Max. Speed (rpm): 4,000 | Weight (kg): 18.0
PBL-08 Max. Clamping Force (kgf): 8,700 | Max. Drawbar Pull (kgf): 2,900 | Jaw Stroke Dia. (mm): 9.5 | Plunger Stroke (mm): 14.3 | Clamping Range Outside Dia. (mm): 16~152 | Clamping Range Inside Dia. (mm): 76~203 | Max. Speed (rpm): 3,500 | Weight (kg): 27.0
PBL-10 Max. Clamping Force (kgf): 10,800 | Max. Drawbar Pull (kgf): 3,600 | Jaw Stroke Dia. (mm): 12.7 | Plunger Stroke (mm): 17.5 | Clamping Range Outside Dia. (mm): 50~203 | Clamping Range Inside Dia. (mm): 85~235 | Max. Speed (rpm): 2,500 | Weight (kg): 45.0
PBL-12 Max. Clamping Force (kgf): 10,800 | Max. Drawbar Pull (kgf): 3,600 | Jaw Stroke Dia. (mm): 12.7 | Plunger Stroke (mm): 17.5 | Clamping Range Outside Dia. (mm): 63~241 | Clamping Range Inside Dia. (mm): 127~305 | Max. Speed (rpm): 2,000 | Weight (kg): 67.5
PBL-15 Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 76~317 | Clamping Range Inside Dia. (mm): 165~381 | Max. Speed (rpm): 1,800 | Weight (kg): 84.5
PBL-18 Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 89~394 | Clamping Range Inside Dia. (mm): 241~457 | Max. Speed (rpm): 1,500 | Weight (kg): 120.0
PBL-21 Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 162~470 | Clamping Range Inside Dia. (mm): 317~533 | Max. Speed (rpm): 1,000 | Weight (kg): 180.0
PBL-24 Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 180~520 | Clamping Range Inside Dia. (mm): 350~600 | Max. Speed (rpm): 1,000 | Weight (kg): 290
Special ChucksSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Universal Ball-Lock Power Chuck PBL

Brand Samchully·Special Chucks

Available part numbers (8)

PBL-06, PBL-08, PBL-10, PBL-12, PBL-15, PBL-18, PBL-21, PBL-24

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PBL-06Max. Clamping Force (kgf): 6,600 | Max. Drawbar Pull (kgf): 2,200 | Jaw Stroke Dia. (mm): 7.9 | Plunger Stroke (mm): 11.3 | Clamping Range Outside Dia. (mm): 12.7~120 | Clamping Range Inside Dia. (mm): 70~152 | Max. Speed (rpm): 4,000 | Weight (kg): 18.0
PBL-08Max. Clamping Force (kgf): 8,700 | Max. Drawbar Pull (kgf): 2,900 | Jaw Stroke Dia. (mm): 9.5 | Plunger Stroke (mm): 14.3 | Clamping Range Outside Dia. (mm): 16~152 | Clamping Range Inside Dia. (mm): 76~203 | Max. Speed (rpm): 3,500 | Weight (kg): 27.0
PBL-10Max. Clamping Force (kgf): 10,800 | Max. Drawbar Pull (kgf): 3,600 | Jaw Stroke Dia. (mm): 12.7 | Plunger Stroke (mm): 17.5 | Clamping Range Outside Dia. (mm): 50~203 | Clamping Range Inside Dia. (mm): 85~235 | Max. Speed (rpm): 2,500 | Weight (kg): 45.0
PBL-12Max. Clamping Force (kgf): 10,800 | Max. Drawbar Pull (kgf): 3,600 | Jaw Stroke Dia. (mm): 12.7 | Plunger Stroke (mm): 17.5 | Clamping Range Outside Dia. (mm): 63~241 | Clamping Range Inside Dia. (mm): 127~305 | Max. Speed (rpm): 2,000 | Weight (kg): 67.5
PBL-15Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 76~317 | Clamping Range Inside Dia. (mm): 165~381 | Max. Speed (rpm): 1,800 | Weight (kg): 84.5
PBL-18Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 89~394 | Clamping Range Inside Dia. (mm): 241~457 | Max. Speed (rpm): 1,500 | Weight (kg): 120.0
PBL-21Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 162~470 | Clamping Range Inside Dia. (mm): 317~533 | Max. Speed (rpm): 1,000 | Weight (kg): 180.0
PBL-24Max. Clamping Force (kgf): 16,500 | Max. Drawbar Pull (kgf): 5,500 | Jaw Stroke Dia. (mm): 15.8 | Plunger Stroke (mm): 22.3 | Clamping Range Outside Dia. (mm): 180~520 | Clamping Range Inside Dia. (mm): 350~600 | Max. Speed (rpm): 1,000 | Weight (kg): 290
