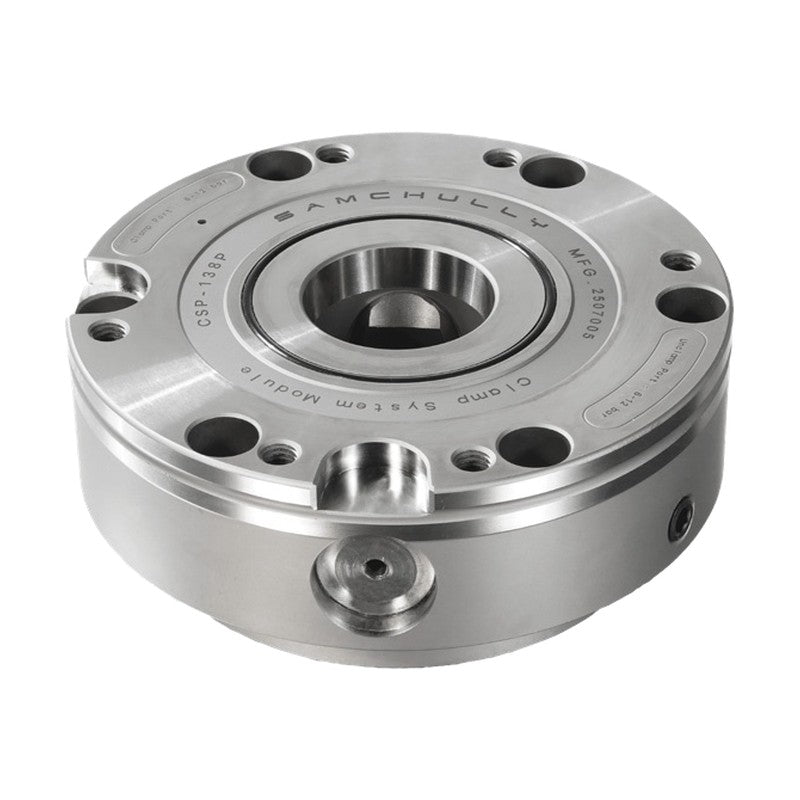

Samchully Zero Point Clamping Module CSP-138P

Samchully Zero Point Clamping Module CSP-138P

Pneumatic zero-point clamping module for quick changeover of vises and fixtures with repeatability below 0.005 mm.

Key features

  • Quick changeover reduces setup time for vises and fixtures
  • Supports clamping modules and pneumatic automation
  • Repeatability 0.005 mm or better, no re-zeroing
  • Suitable for pallet changers and robotic systems
CSP-138P Body dia. (mm): 138 | Booster air pressure: 6 bar | Unclamp air pressure: 6 bar | Plunger retraction force: 7 kN (6 bar) | Pull-down force: 28 kN (6 bar) | Repeatability (mm): < 0.005 | Weight (kg): 3.75 | Port: G 1/8
Clamping ModulesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Zero Point Clamping Module CSP-138P

Brand Samchully·Clamping Modules

Available part numbers (1)

CSP-138P

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSP-138PBody dia. (mm): 138 | Booster air pressure: 6 bar | Unclamp air pressure: 6 bar | Plunger retraction force: 7 kN (6 bar) | Pull-down force: 28 kN (6 bar) | Repeatability (mm): < 0.005 | Weight (kg): 3.75 | Port: G 1/8
