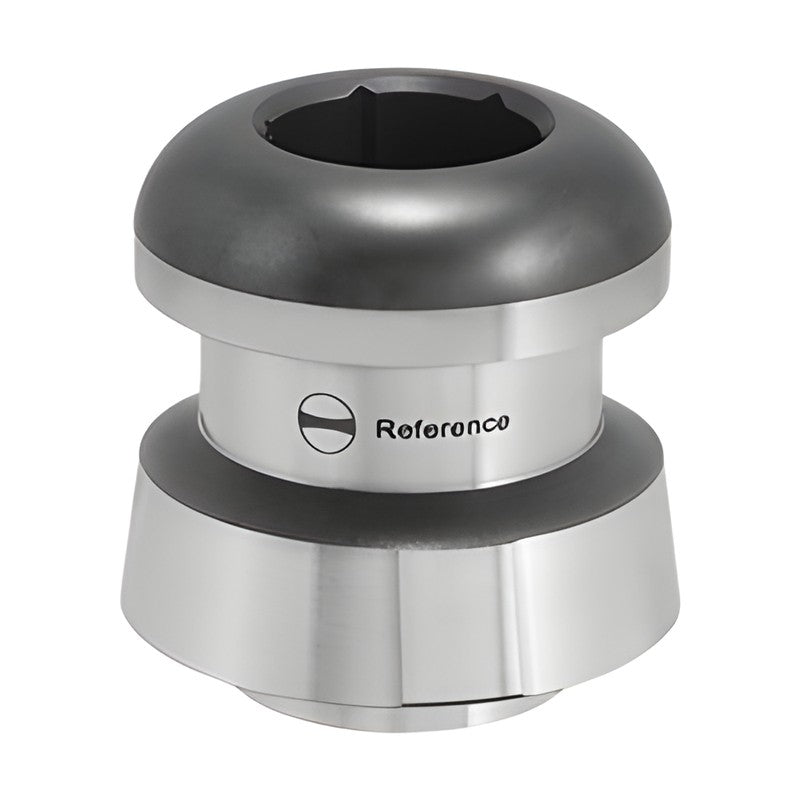

Samchully Zero Point Pull Studs CSP40S

Samchully Zero Point Pull Studs CSP40S

Zero-point pull studs for quick-change workholding, positioned via a short taper with repeat accuracy below 0.005 mm.

Key features

  • Centering, reference and pull-down versions
  • Positioning via short taper
  • Repeat accuracy below 0.005 mm
CSP40SA Function: Centering (full studs, two directions) | Thread: M16 | Locating dia. (mm): 25 h6 | Head dia. (mm): 40
CSP40SB Function: Reference (directional, one direction) | Thread: M16 | Locating dia. (mm): 25 h6 | Head dia. (mm): 40
CSP40SC Function: Pull down only (no positioning) | Thread: M16 | Locating dia. (mm): 25 h6 | Head dia. (mm): 40
Clamping ModulesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Zero Point Pull Studs CSP40S

Brand Samchully·Clamping Modules

Available part numbers (3)

CSP40SA, CSP40SB, CSP40SC

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSP40SAFunction: Centering (full studs, two directions) | Thread: M16 | Locating dia. (mm): 25 h6 | Head dia. (mm): 40
CSP40SBFunction: Reference (directional, one direction) | Thread: M16 | Locating dia. (mm): 25 h6 | Head dia. (mm): 40
CSP40SCFunction: Pull down only (no positioning) | Thread: M16 | Locating dia. (mm): 25 h6 | Head dia. (mm): 40
