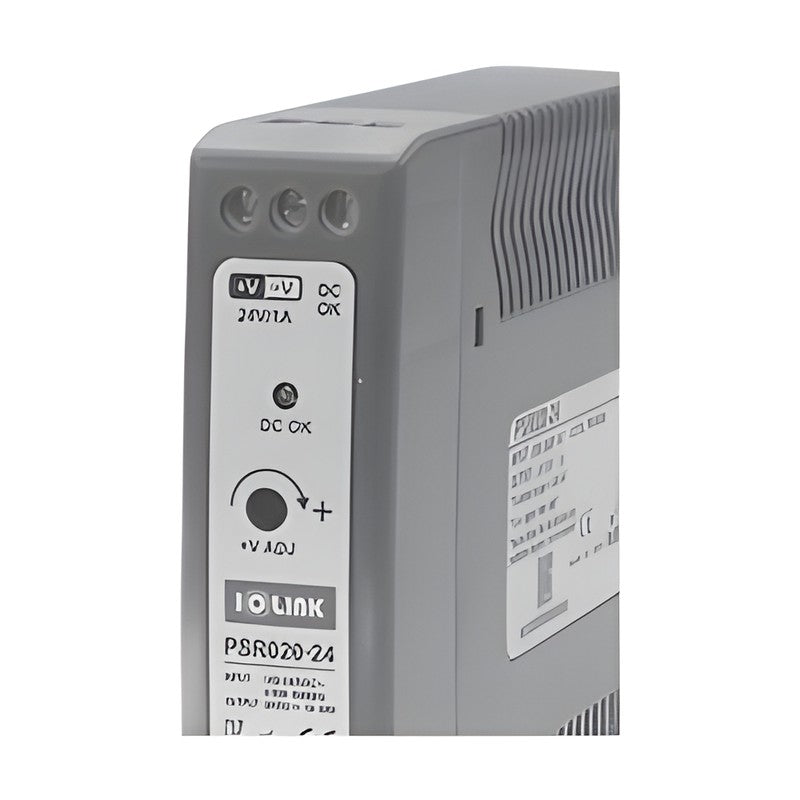

Samwon ACT PSR020 DIN-Rail Switching Power Supply, 15-24 W
Samwon ACT PSR020 DIN-Rail Switching Power Supply, 15-24 W
DIN-rail mounted switching mode power supply (SMPS) of the PSR series with 15-24 W rated output.
Key features
- Compact DIN-rail switching power supply for space-saving installation
- Overload, short-circuit and over-voltage protection
- High efficiency with low heat generation
- Low noise and ripple for stable power to electrical equipment
- Adjustable output voltage and green DC OK LED
Specifications
| Indicator | Green LED |
|---|---|
| Withstand Voltage | I/P-O/P 3 kV AC, I/P-FG 1.5 kV AC, O/P-FG 0.5 kV AC |
| Insulation Resistance | 100 Mohm / 500 V DC |
| Mounting | DIN rail TS35 |
| Protection Class | IP20 |
| Frequency | 47-63 Hz |
| Storage Temperature | -40 to +85 C |
| Over-Voltage Protection | Shut down O/P voltage, re-power on to recover |
| Input Voltage | 85-264 V AC / 120-370 V DC |
| AC Current | 0.55 A / 115 V AC, 0.35 A / 230 V AC |
| Inrush Current | Cold start 20 A / 115 V AC, 40 A / 230 V AC |
| Overload Protection | 110-150% of rated power, hiccup mode, auto recovery |
| PSR020-05 | Output: 5 V DC 3 A | Rated Power: 15 W | Efficiency: 76% | Adjustment Range: 4.75-5.5 V | Ripple & Noise: 80 mVp-p max. | Over-Voltage Protection: 5.75-6.75 V | Approvals: cULus, CE, KC | |
| PSR020-12 | Output: 12 V DC 1.67 A | Rated Power: 20 W | Efficiency: 80% | Adjustment Range: 10.8-13.2 V | Ripple & Noise: 120 mVp-p max. | Over-Voltage Protection: 13.8-16.2 V | Approvals: cULus, CE, KC | |
| PSR020-24 | Output: 24 V DC 1 A | Rated Power: 24 W | Efficiency: 83% | Adjustment Range: 21.6-26.4 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 27.6-32.4 V | Approvals: cULus, CE, KC |
Power SuppliesSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Samwon ACT PSR020 DIN-Rail Switching Power Supply, 15-24 W
Available part numbers (3)
PSR020-05, PSR020-12, PSR020-24
How to order
Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Samwon ACT
Power Supplies
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PSR020-05 | Output: 5 V DC 3 A | Rated Power: 15 W | Efficiency: 76% | Adjustment Range: 4.75-5.5 V | Ripple & Noise: 80 mVp-p max. | Over-Voltage Protection: 5.75-6.75 V | Approvals: cULus, CE, KC | ||
| PSR020-12 | Output: 12 V DC 1.67 A | Rated Power: 20 W | Efficiency: 80% | Adjustment Range: 10.8-13.2 V | Ripple & Noise: 120 mVp-p max. | Over-Voltage Protection: 13.8-16.2 V | Approvals: cULus, CE, KC | ||
| PSR020-24 | Output: 24 V DC 1 A | Rated Power: 24 W | Efficiency: 83% | Adjustment Range: 21.6-26.4 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 27.6-32.4 V | Approvals: cULus, CE, KC |
Need a different model, or a part not listed here? Send us your parts list →
