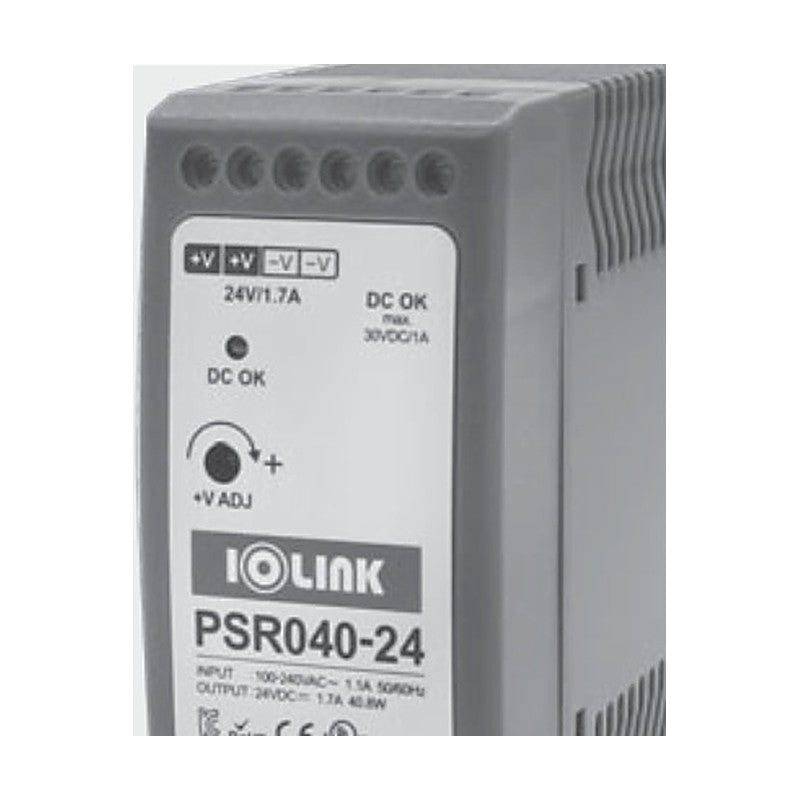

Samwon ACT PSR040 DIN-Rail Switching Power Supply, 30-40.8 W
Samwon ACT PSR040 DIN-Rail Switching Power Supply, 30-40.8 W
DIN-rail mounted switching mode power supply (SMPS) of the PSR series with 30-40.8 W rated output.
Key features
- Compact DIN-rail switching power supply for space-saving installation
- Overload, short-circuit and over-voltage protection
- High efficiency with low heat generation
- Low noise and ripple for stable power to electrical equipment
- Adjustable output voltage and green DC OK LED
Specifications
| Indicator | Green LED |
|---|---|
| Withstand Voltage | I/P-O/P 3 kV AC, I/P-FG 1.5 kV AC, O/P-FG 0.5 kV AC |
| Insulation Resistance | 100 Mohm / 500 V DC |
| Mounting | DIN rail TS35 |
| Protection Class | IP20 |
| Frequency | 47-63 Hz |
| Storage Temperature | -40 to +85 C |
| Over-Voltage Protection | Shut down O/P voltage, re-power on to recover |
| Input Voltage | 85-264 V AC / 120-370 V DC |
| AC Current | 1.1 A / 115 V AC, 0.7 A / 230 V AC |
| Inrush Current | Cold start 30 A / 115 V AC, 60 A / 230 V AC |
| Overload Protection | 105-150% of rated power, constant current limiting, auto recovery |
| PSR040-05 | Output: 5 V DC 6 A | Rated Power: 30 W | Efficiency: 78% | Adjustment Range: 5-6 V | Ripple & Noise: 80 mVp-p max. | Over-Voltage Protection: 6.25-7.25 V | Approvals: cULus, CE, KC | |
| PSR040-12 | Output: 12 V DC 3.33 A | Rated Power: 40 W | Efficiency: 86% | Adjustment Range: 12-15 V | Ripple & Noise: 120 mVp-p max. | Over-Voltage Protection: 15.6-18 V | Approvals: cULus, CE, KC | |
| PSR040-24 | Output: 24 V DC 1.7 A | Rated Power: 40.8 W | Efficiency: 88% | Adjustment Range: 24-30 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 31.2-36 V | Approvals: cULus, CE, KC |
Power SuppliesSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Samwon ACT PSR040 DIN-Rail Switching Power Supply, 30-40.8 W
Available part numbers (3)
PSR040-05, PSR040-12, PSR040-24
How to order
Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Samwon ACT
Power Supplies
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PSR040-05 | Output: 5 V DC 6 A | Rated Power: 30 W | Efficiency: 78% | Adjustment Range: 5-6 V | Ripple & Noise: 80 mVp-p max. | Over-Voltage Protection: 6.25-7.25 V | Approvals: cULus, CE, KC | ||
| PSR040-12 | Output: 12 V DC 3.33 A | Rated Power: 40 W | Efficiency: 86% | Adjustment Range: 12-15 V | Ripple & Noise: 120 mVp-p max. | Over-Voltage Protection: 15.6-18 V | Approvals: cULus, CE, KC | ||
| PSR040-24 | Output: 24 V DC 1.7 A | Rated Power: 40.8 W | Efficiency: 88% | Adjustment Range: 24-30 V | Ripple & Noise: 150 mVp-p max. | Over-Voltage Protection: 31.2-36 V | Approvals: cULus, CE, KC |
Need a different model, or a part not listed here? Send us your parts list →
